苹果手机摄像头模块晶振SG-210STF爱普生X1G004171012700输出CMOS
之前苹果手机一直坚持用1200万像素的传感器,ISP需要做包括DeepFusion之类多帧堆栈之类的操作,数据量级和4800万就不一样.所以ISP的性能提升是必须的以及该流程需要NeuralEngine参与,但NE性能提升幅度也不大.爱普生晶振比较值得一提的是,这次苹果手机引入了一种叫PhotonicEngine光像引擎的特性：从苹果的描述来看,这是一种将多帧堆栈流程在pipeline上提前的方案苹果手机在官网提到这项技术能够让DeepFusion更早地作用于未压缩的图像流程,所以是提前到RAW域.

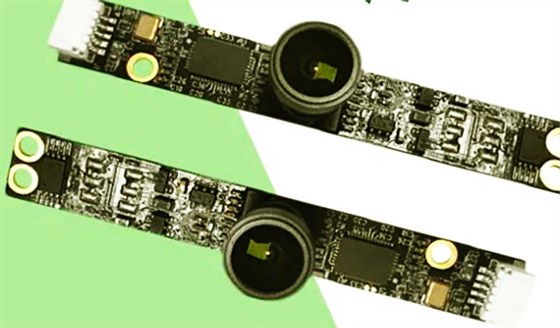

SG-210STF爱普生X1G004171012700晶振,苹果手机摄像头模块晶振
爱普生有源晶振编码
型号
频率
长X宽X高
输出波
电源电压
工作温度
频差
X1G004171011900
SG-210STF
33.330000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171012000
SG-210STF
33.333300MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171012400
SG-210STF
72.000000MHz
2.50x2.00x0.80mm
CMOS
1.710to3.630V
-40to85°C
+/-50ppm
X1G004171012600
SG-210STF
50.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm

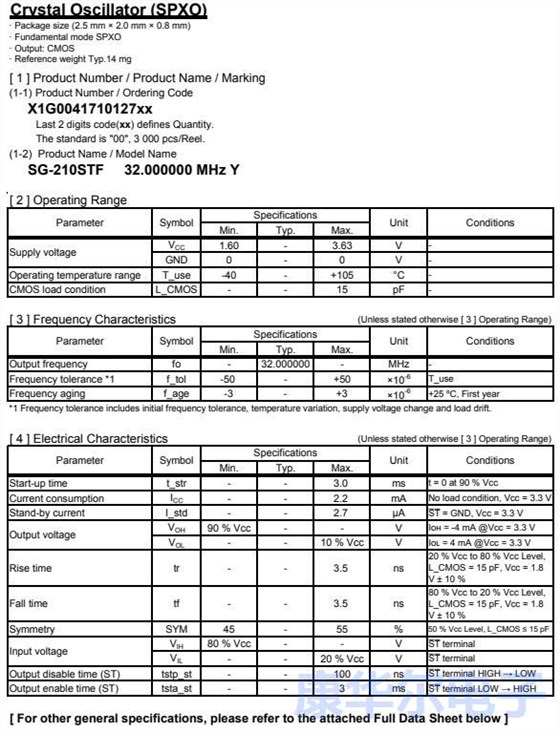

X1G004171012700
SG-210STF
32.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171015400
SG-210STF
16.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171015600
SG-210STF
24.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-20to70°C
+/-25ppm
X1G004171016300
SG-210STF
12.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-20to70°C
+/-25ppm
X1G004171019700
SG-210STF
24.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171020600
SG-210STF
40.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171021800
SG-210STF
20.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-20to70°C
+/-25ppm
X1G004171023800
SG-210STF
20.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171024400
SG-210STF
26.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171025000
SG-210STF
27.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171028000
SG-210STF
12.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171029900
SG-210STF
4.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171030000
SG-210STF
33.330000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171036500
SG-210STF
10.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171036600
SG-210STF
12.288000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171036700
SG-210STF
14.745600MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171036800
SG-210STF
24.576000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171036900
SG-210STF
48.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171037000
SG-210STF
72.000000MHz
2.50x2.00x0.80mm
CMOS
1.710to3.630V
-20to70°C
+/-25ppm
X1G004171037100
SG-210STF
72.000000MHz
2.50x2.00x0.80mm
CMOS
2.250to3.630V
-40to105°C
+/-50ppm
X1G004241000100
SG3225VAN
125.000000MHz
3.20x2.50x1.20mm
LVDS
2.250to3.630V
-40to85°C
+/-50ppm
现在主要是因为有了4800万像素资源,所以画面放大2倍,依然可以做到清晰应当可还涉及到更优的算法.苹果称其为光学质量般optical-quality的2倍长焦；日本进口晶振甚至还给2倍变焦标了数据,这可不就是主摄数据么?说是这次的2倍长焦比以前任意一代iPhone的2倍长焦都拥有着更大的像素和更快的光圈.这市场水平真的挺高..摄像头的重点不过以上特性的实现,还是要依托于ISP和NeuralEngine来做DeepFusion和各种后处理的.
SG-210STF爱普生X1G004171012700晶振,苹果手机摄像头模块晶振
