TG-5006CE爱普生晶振X1G004201001700苹果手机iPhone14的A16仿生芯片与卫星连接模块
看到新的TrueDepth相机模块实际上要小得多,这使苹果能够打造出灵动岛.至于后置相机,iPhone14ProMax和上代一样有三个后置镜头,不过采用了新的4800万像素广角镜头,传感器要大得多,爱普生晶振从内部也可以清楚地看到这一点.其它一些值得注意的部件是卫星连接模块,此外没有SIM卡读卡器该机为美版机型或许我们可以在iFixit和Techinsights等更进一步的拆解分析中看到.

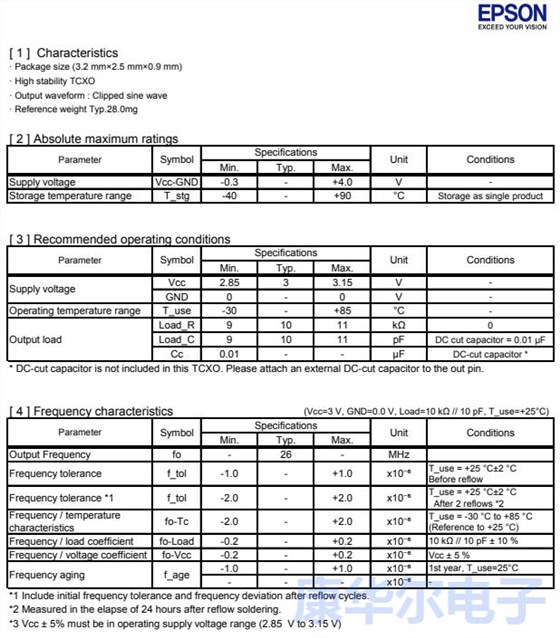

TG-5006CE爱普生晶振X1G004201001700,苹果手机iPhone14卫星连接模块晶振
爱普生有源晶振编码
型号
频率
长X宽X高
输出波
电源电压
工作温度
最大值
输出电平;出模式;削顶正弦波;削峰正弦波;
X1G004131004400
TG-5006CJ
24.576000MHz
2.00x1.60x0.73mm
VC-TCXO~TCXO
3.135to3.465V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004131004900
TG-5006CJ
26.000000MHz
2.00x1.60x0.73mm
VC-TCXO~TCXO
1.700to1.900V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004201000600
TG-5006CE
16.367667MHz
3.20x2.50x0.90mm
VC-TCXO~TCXO
1.700to1.900V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004201000800
TG-5006CE
16.369000MHz
3.20x2.50x0.90mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004201000900
TG-5006CE
19.200000MHz
3.20x2.50x0.90mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004201001000
TG-5006CE
26.000000MHz
3.20x2.50x0.90mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004201001300
TG-5006CE
16.367667MHz
3.20x2.50x0.90mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004201001700
TG-5006CE
26.000000MHz
3.20x2.50x0.90mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004201002000
TG-5006CE
26.000000MHz
3.20x2.50x0.90mm
VC-TCXO~TCXO
2.660to2.940V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004201002300
TG-5006CE
26.000000MHz
3.20x2.50x0.90mm
VC-TCXO~TCXO
1.700to3.465V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004201002500
TG-5006CE
32.000000MHz
3.20x2.50x0.90mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004201002600
TG-5006CE
26.000000MHz
3.20x2.50x0.90mm
VC-TCXO~TCXO
2.660to2.940V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004201003200
TG-5006CE
20.000000MHz
3.20x2.50x0.90mm
VC-TCXO~TCXO
3.135to3.465V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004201003300
TG-5006CE
25.000000MHz
3.20x2.50x0.90mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004201006200
TG-5006CE
32.000000MHz
3.20x2.50x0.90mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211000100
TG-5006CG
26.000000MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
2.660to2.940V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211000200
TG-5006CG
26.000000MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211000300
TG-5006CG
26.000000MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211000400
TG-5006CG
16.368000MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211000500
TG-5006CG
26.000000MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
1.700to1.900V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211000600
TG-5006CG
16.367667MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-1.0ppm
Clippedsinewave
X1G004211000800
TG-5006CG
16.369000MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211001100
TG-5006CG
38.400000MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211001500
TG-5006CG
16.369000MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211001600
TG-5006CG
19.200000MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211002700
TG-5006CG
30.000000MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211003100
TG-5006CG
24.000000MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
2.850to3.150V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211003300
TG-5006CG
49.999800MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
1.700to3.465V
-30to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211003400
TG-5006CG
26.000000MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
2.520to3.080V
-40to+85°C
+/-2.0ppm
Clippedsinewave
X1G004211003700
TG-5006CG
24.000000MHz
2.50x2.00x0.80mm
VC-TCXO~TCXO
1.700to3.465V
-30to+85°C
+/-1.5ppm
Clippedsinewave
