GPS导航仪和安防通讯产品有X1G005591018600爱普生3.3V有源OSC晶振
有源晶振—压控振荡器自其诞生以来就一直在GPS、导航仪、通信、电子、安防、航海航空航天及医学等领域扮演重要的角色,具有广泛的用途.爱普生晶振在无线电技术发展的初期,它就在发射机中用来产生高频载波电压,在超外差接收机中用作本机振荡器,成为发射和接收设备的基本部件.随着电子技术的迅速发展,振荡器的用途也越来越广泛,但是与普通晶振价格想比,价格往往高于普通晶振几倍.
GPS导航仪安防通讯晶振X1G005591018600,爱普生3.3V有源OSC晶振
爱普生有源晶振编码
型号
频率
长X宽X高
输出波
电源电压
工作温度
频差
最大值
X1G005591016700
SG-8018CE
40.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591016800
SG-8018CE
4.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591016900
SG-8018CE
82.110000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.9mA
X1G005591017000
SG-8018CE
138.566929MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤8.1mA
X1G005591017100
SG-8018CE
5.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591017200
SG-8018CE
33.333333MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591017300
SG-8018CE
68.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591017400
SG-8018CE
80.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.9mA
X1G005591017500
SG-8018CE
5.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591017600
SG-8018CE
66.666667MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591017900
SG-8018CE
14.318000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591018000
SG-8018CE
7.500000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591018100
SG-8018CE
66.870000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591018200
SG-8018CE
42.949700MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591018300
SG-8018CE
54.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591018400
SG-8018CE
32.768000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591018500
SG-8018CE
18.063360MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA

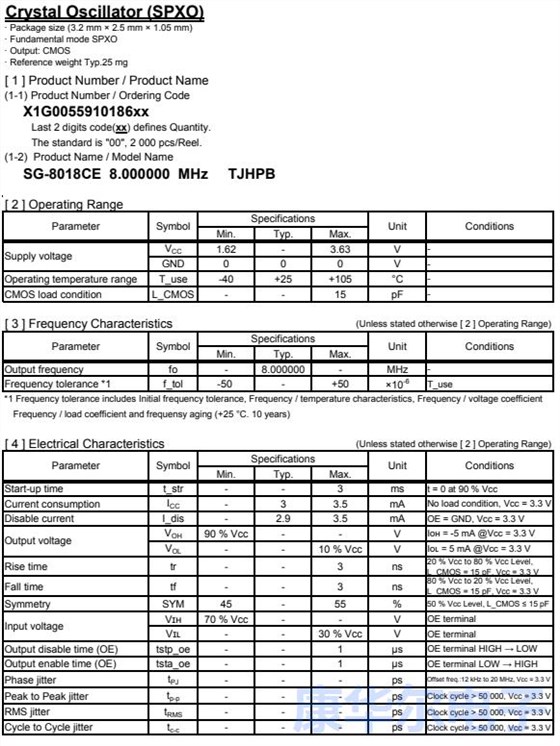

X1G005591018600
SG-8018CE
8.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591018900
SG-8018CE
15.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591019000
SG-8018CE
51.200000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591019100
SG-8018CE
16.666600MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591019600
SG-8018CE
49.090900MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591019700
SG-8018CE
65.536000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591019800
SG-8018CE
26.660000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591019900
SG-8018CE
42.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
某些电气设备用振荡器做成的无触点开关进行控制;电子钟和电子手表中采用频率稳定度很高的振荡电路作为定时部件等.尤其在通信系统电路中,压控振荡器(VCO)是其关键部件,特别是在锁相环电路、时钟恢复电路和频率综合器电路等更是重中之重,日本进口晶振可以毫不夸张地说在电子通信技术领域,VCO几乎和电流源和运放具有同等重要地位.有源晶振分压控振荡器和温补振荡器,压控温补振荡器,普通振荡器.其中压控振荡器(VCO)和普通晶振相比,在谐振回路中多出了电控器件,比如变容二极管;一般压控振荡器(VCO)多以克拉泼振荡器形式存在,以保证电路工作点和Q值的稳定性.GPS导航仪安防通讯晶振X1G005591018600,爱普生3.3V有源OSC晶振
