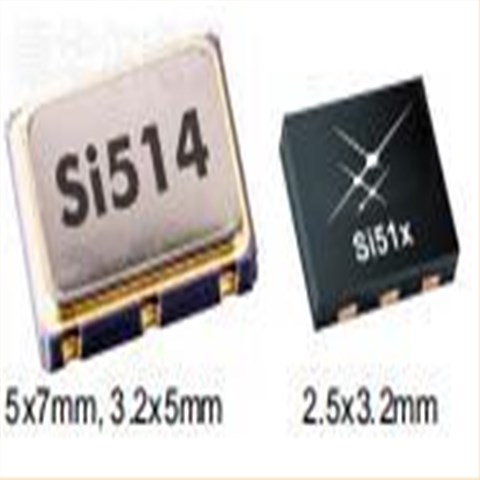

Si514晶体中编码为514BCC001696BAGR的晶振电压是3.3V；编码为514JCC001696BAGR的晶振电压是1.8V，两个Si514晶体的频率都是84MHz，输出方式为LVDS，是Skyworks LVDS晶振，频率公差为±20ppm，工作温度是-40°C~85°C，电流为23mA，尺寸都是5032mm。LVDS差分贴片晶振，Skyworks差分晶振。5032尺寸贴片晶振系列，在生产时就得对每项生产工艺严格把关，对每项参数做到标准检测，有一项不完善都会使晶片的边缘效应不能去除，而晶片的谐振电阻过大，用在电路中Q值过小，从而电路不能振动或振动不稳定。
514BCC001696BAGR,Skyworks LVDS晶振,Si514晶体,514JCC001696BAGR
|
原产编码 |
514BCC001696BAGR |
514JCC001696BAGR |
|
品牌 |
Skyworks晶振 |
Skyworks晶振 |
|
型号 |
Si514 |
Si514 |
|
频率 |
84MHz |
84MHz |
|
输出方式 |
LVDS |
LVDS |
|
电压 |
3.3V |
1.8V |
|
工作温度 |
-40°C ~ 85°C |
-40°C ~ 85°C |
|
精度 |
±20ppm |
±20ppm |
|
电流 |
23mA |
23mA |
|

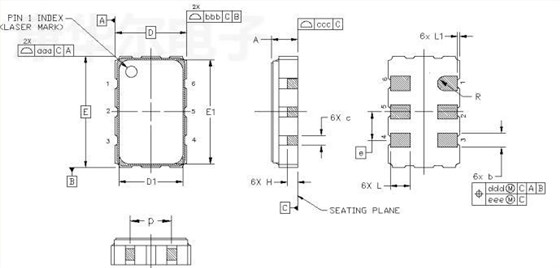

尺寸 |
5032mm |
5032mm |
514BCC001696BAGR,Skyworks LVDS晶振,Si514晶体,514JCC001696BAGR
更多相关晶振参考
| 原产编码 | 品牌 | 型号 | 频率 | 输出方式 | 电压 |
| 514CBC000798BAGR | Skyworks晶振 | Si514 | 1MHz | CMOS | 3.3V |
| 514CBC000926BAGR | Skyworks晶振 | Si514 | 5MHz | CMOS | 3.3V |
| 514CBC000993BAGR | Skyworks晶振 | Si514 | 13MHz | CMOS | 3.3V |
| 514CBC001037BAGR | Skyworks晶振 | Si514 | 24.576MHz | CMOS | 3.3V |
| 514CBC001598BAGR | Skyworks晶振 | Si514 | 5.12MHz | CMOS | 3.3V |
| 514CBC001728BAGR | Skyworks晶振 | Si514 | 37MHz | CMOS | 3.3V |
| 514CBC001729BAGR | Skyworks晶振 | Si514 | 38MHz | CMOS | 3.3V |
| 514CBC001730BAGR | Skyworks晶振 | Si514 | 38MHz | CMOS | 3.3V |
| 514GBC001688BAGR | Skyworks晶振 | Si514 | 18MHz | CMOS | 2.5V |
| 514KBC000894BAGR | Skyworks晶振 | Si514 | 100MHz | CMOS | 1.8V |
| 514CBC000157BAGR | Skyworks晶振 | Si514 | 50MHz | CMOS | 3.3V |
| 514KBC001794CAGR | Skyworks晶振 | Si514 | 40MHz | CMOS | 1.8V |
| 514KBC002240CAGR | Skyworks晶振 | Si514 | 40MHz | CMOS | 1.8V |
| 514CBC001972CAGR | Skyworks晶振 | Si514 | 500kHz | CMOS | 3.3V |
| 514CBA000144BAG | Skyworks晶振 | Si514 | 80MHz | CMOS | 3.3V |
| 514BAC000163BAG | Skyworks晶振 | Si514 | 20MHz | LVDS | 3.3V |
| 514MAC001723BAG | Skyworks晶振 | Si514 | 42.5MHz | CMOS | 3.3V |
| 514NAC001763BAG | Skyworks晶振 | Si514 | 9.8304MHz | CMOS | 3.3V |
| 514CAC000107BAGR | Skyworks晶振 | Si514 | 10MHz | CMOS | 3.3V |
| 514CAC000112BAGR | Skyworks晶振 | Si514 | 10MHz | CMOS | 3.3V |
| 514CAC000142BAGR | Skyworks晶振 | Si514 | 11.2896MHz | CMOS | 3.3V |
| 514CAC000306BAGR | Skyworks晶振 | Si514 | 22.5792MHz | CMOS | 3.3V |
| 514CAC000776BAGR | Skyworks晶振 | Si514 | 100kHz | CMOS | 3.3V |
| 514CAC000790BAGR | Skyworks晶振 | Si514 | 32MHz | CMOS | 3.3V |
| 514CAC001044BAGR | Skyworks晶振 | Si514 | 101.5MHz | CMOS | 3.3V |
| 514CAC001120BAGR | Skyworks晶振 | Si514 | 18.4MHz | CMOS | 3.3V |
| 514CAC001763BAGR | Skyworks晶振 | Si514 | 9.8304MHz | CMOS | 3.3V |
| 514CAC001900BAGR | Skyworks晶振 | Si514 | 11.13MHz | CMOS | 3.3V |
| 514GAC000163BAGR | Skyworks晶振 | Si514 | 20MHz | CMOS | 2.5V |
| 514KAC000112BAGR | Skyworks晶振 | Si514 | 10MHz | CMOS | 1.8V |
