135MHz,515FBA135M000CAGR,Si515差分晶振,Skyworks LVDS差分晶振
编码为515FBA135M000CAGR的Si515差分晶振的频率为135MHz，输出方式为LVDS输出，是差分晶振常规的LVDS输出方式，也叫LVDS差分晶振，该晶振的电压是2.5V，频率公差为±20ppm，工作温度是-40°C~85°C，电流为26mA，尺寸是3225mm。3225差分晶振，LVDS差分贴片晶振，差分晶体振荡器。Skyworks差分晶振。差分晶振可提供两种相位彼此完全相反的信号, 差分晶体振荡器属于行业里极其高端的有源晶振,拥有LVDS,LVPECL,HCMOS 等输出方式,我们常见的是贴片差分晶振,体积有微小型也有大体积,常规的输出方式是LVDS,因此在业界中还有LVDS差分晶振这一说法,军事设备与工业设备应用比较比较多。
135MHz,515FBA135M000CAGR,Si515差分晶振,Skyworks LVDS差分晶振
|
原产编码 |
515FBA135M000CAGR |
|
品牌 |
Skyworks晶振 |
|
型号 |
Si515 |
|
频率 |
135MHz |
|
输出方式 |
LVDS |
|
电压 |
2.5V |
|
工作温度 |
﹣40℃~85℃ |
|
精度 |
±20ppm |
|
电流 |
26mA |
|
尺寸 |

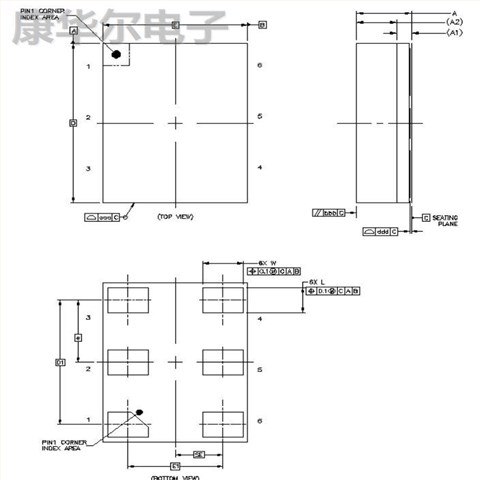

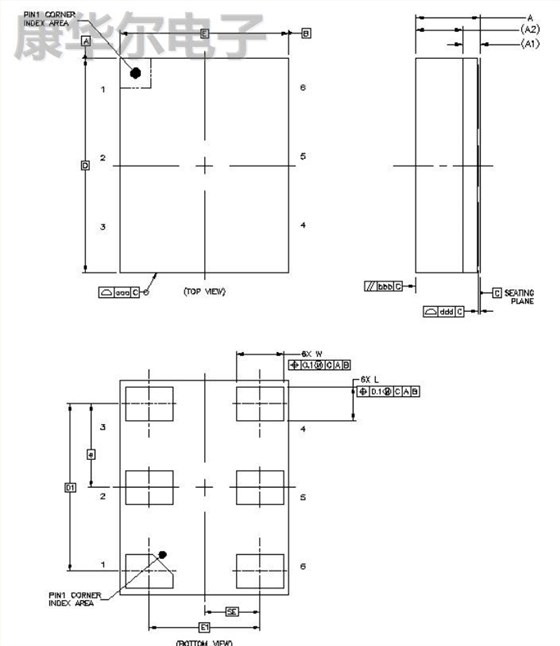

3225mm |
135MHz,515FBA135M000CAGR,Si515差分晶振,Skyworks LVDS差分晶振
更多相关晶振参考
| 原产编码 | 品牌 | 型号 | 频率 | 输出方式 | 电压 | 精度 |
| 510KBA25M0000BAGR | Skyworks晶振 | Si510 | 25MHz | CMOS | 1.8V | ±25ppm |
| 511BBA125M000BAGR | Skyworks晶振 | Si511 | 125MHz | LVDS | 3.3V | ±25ppm |
| 511FBA125M000BAGR | Skyworks晶振 | Si511 | 125MHz | LVDS | 2.5V | ±25ppm |
| 510ABA148M500BAGR | Skyworks晶振 | Si510 | 148.5MHz | LVPECL | 3.3V | ±25ppm |
| 510BBA156M250BAGR | Skyworks晶振 | Si510 | 156.25MHz | LVDS | 3.3V | ±25ppm |
| 511FBA000330BAGR | Skyworks晶振 | Si511 | 125MHz | LVDS | 2.5V | ±25ppm |
| 511BBA100M000BAG | Skyworks晶振 | Si511 | 100MHz | LVDS | 3.3V | ±25ppm |
| 511BBA125M000AAG | Skyworks晶振 | Si511 | 125MHz | LVDS | 3.3V | ±25ppm |
| 511BBA100M000AAG | Skyworks晶振 | Si511 | 100MHz | LVDS | 3.3V | ±25ppm |
| 511BBA200M000AAG | Skyworks晶振 | Si511 | 200MHz | LVDS | 3.3V | ±25ppm |
| 530BB125M000DG | Skyworks晶振 | Si530 | 125MHz | LVDS | 3.3V | ±20ppm |
| 531BC125M000DG | Skyworks晶振 | Si531 | 125MHz | LVDS | 3.3V | ±7ppm |
| 545BAA200M000BBG | Skyworks晶振 | Si545 | 200MHz | LVDS | 1.8V,2.5V,3.3V | ±20ppm |
| 570BAB000544DG | Skyworks晶振 | Si570 | 156.25MHz | LVDS | 3.3V | ±50ppm |
| 510BBA125M000AAGR | Skyworks晶振 | Si510 | 125MHz | LVDS | 3.3V | ±25ppm |
| 510BBA156M250AAGR | Skyworks晶振 | Si510 | 156.25MHz | LVDS | 3.3V | ±25ppm |
| 511ABA156M250AAGR | Skyworks晶振 | Si511 | 156.25MHz | LVPECL | 3.3V | ±25ppm |
| 511BBA200M000BAGR | Skyworks晶振 | Si511 | 200MHz | LVDS | 3.3V | ±25ppm |
| 510MCA50M0000AAGR | Skyworks晶振 | Si510 | 50MHz | CMOS | 3.3V | ±20ppm |
| 511BCA160M000BAGR | Skyworks晶振 | Si511 | 160MHz | LVDS | 3.3V | - |
| 510KBA100M000BAG | Skyworks晶振 | Si510 | 100MHz | CMOS | 1.8V | ±25ppm |
| 511BBA74M2500BAG | Skyworks晶振 | Si511 | 74.25MHz | LVDS | 3.3V | ±25ppm |
| 510BBA125M000BAG | Skyworks晶振 | Si510 | 125MHz | LVDS | 3.3V | ±25ppm |
| 511FBA125M000BAG | Skyworks晶振 | Si511 | 125MHz | LVDS | 2.5V | ±25ppm |
| 511BBA125M000BAG | Skyworks晶振 | Si511 | 125MHz | LVDS | 3.3V | ±25ppm |
| 510BBA100M000BAG | Skyworks晶振 | Si510 | 100MHz | LVDS | 3.3V | ±25ppm |
| 511FBA100M000BAG | Skyworks晶振 | Si511 | 100MHz | LVDS | 2.5V | ±25ppm |
| 510FBA125M000BAG | Skyworks晶振 | Si510 | 125MHz | LVDS | 2.5V | ±25ppm |
| 510KCA125M000BAG | Skyworks晶振 | Si510 | 125MHz | CMOS | 1.8V | ±20ppm |
| 511BBA000110BAG | Skyworks晶振 | Si511 | 148.35165MHz | LVDS | 3.3V | ±25ppm |
