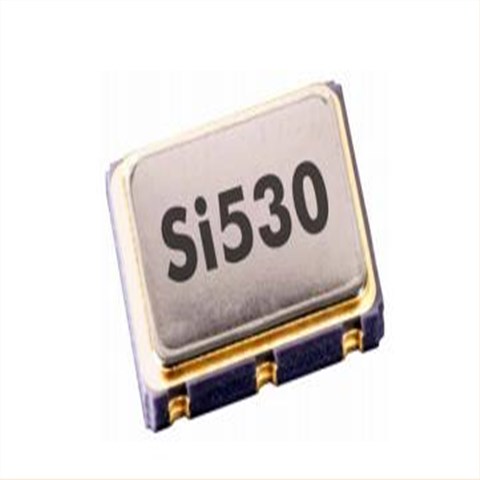

530AC622M080DGR,Si530石英晶振,622.08 MHz,Skyworks7050晶振
Si530石英晶振编码为530AC622M080DGR的频率为 622.08 MHz ，输出方式LVPECL ，电压 3.3v ，电流 121mA ，精度±7ppm ，工作温度是﹣40℃~85℃ ，尺寸7050mm。该Skyworks7050晶振属于是贴片式石英晶体振荡器，低电压启动功率，产品被广泛应用于平板笔记本，GPS系统，光纤通道，千兆以太网，串行ATA等领域，符合RoHS/无铅，低抖动，低功耗，该体积的产品采用金属面编带封装，具备充分的封密性能，采用自动贴片机高速焊接。
530AC622M080DGR,Si530石英晶振,622.08 MHz,Skyworks7050晶振
|
原产编码 |
530AC622M080DGR |
|
品牌 |
Skyworks晶振 |
|
型号 |
Si530 |
|
频率 |
622.08 MHz |
|
输出方式 |
LVPECL |
|
电压 |
3.3V |
|
工作温度 |
﹣40℃~85℃ |
|
精度 |
±7ppm |
|
电流 |
121mA |
|
尺寸 |
7050mm |
530AC622M080DGR,Si530石英晶振,622.08 MHz,Skyworks7050晶振
更多相关晶振参考
| 原产编码 | 品牌 | 型号 | 频率 | 输出方式 | 电压 |
| 530BB125M000DG | Skyworks晶振 | Si530 | 125MHz | LVDS | 3.3V |
| 530BA125M000DG | Skyworks晶振 | Si530 | 125MHz | LVDS | 3.3V |
| 530CA25M0000DG | Skyworks晶振 | Si530 | 25MHz | CMOS | 3.3V |
| 530CA28M6000DG | Skyworks晶振 | Si530 | 28.6MHz | CMOS | 3.3V |
| 530GB25M0000DG | Skyworks晶振 | Si530 | 25MHz | CMOS | 2.5V |
| 530FC200M000DG | Skyworks晶振 | Si530 | 200MHz | LVDS | 2.5V |
| 530EC125M000DG | Skyworks晶振 | Si530 | 125MHz | LVPECL | 2.5V |
| 530BC100M000DG | Skyworks晶振 | Si530 | 100MHz | LVDS | 3.3V |
| 530AC622M080DGR | Skyworks晶振 | Si530 | 622.08MHz | LVPECL | 3.3V |
| 530CB20M0000DG | Skyworks晶振 | Si530 | 20MHz | CMOS | 3.3V |
| 530BC114M285DG | Skyworks晶振 | Si530 | 114.285MHz | LVDS | 3.3V |
| 530CC19M2000DG | Skyworks晶振 | Si530 | 19.2MHz | CMOS | 3.3V |
| 530CA26M0000DG | Skyworks晶振 | Si530 | 26MHz | CMOS | 3.3V |
| 530EB50M0000DGR | Skyworks晶振 | Si530 | 50MHz | LVPECL | 2.5V |
| 530EA312M500DG | Skyworks晶振 | Si530 | 312.5MHz | LVPECL | 2.5V |
| 530FC311M040DG | Skyworks晶振 | Si530 | 311.04MHz | LVDS | 2.5V |
| 530FC233M250DGR | Skyworks晶振 | Si530 | 233.25MHz | LVDS | 2.5V |
| 530AB25M0000DG | Skyworks晶振 | Si530 | 25MHz | LVPECL | 3.3V |
| 530FB125M000DG | Skyworks晶振 | Si530 | 125MHz | LVDS | 2.5V |
| 530EB121M109DG | Skyworks晶振 | Si530 | 121.109MHz | LVPECL | 2.5V |
| 530AC125M000DG | Skyworks晶振 | Si530 | 125MHz | LVPECL | 3.3V |
| 530BC125M000DG | Skyworks晶振 | Si530 | 125MHz | LVDS | 3.3V |
| 530FC125M000DG | Skyworks晶振 | Si530 | 125MHz | LVDS | 2.5V |
| 530BA156M250DG | Skyworks晶振 | Si530 | 156.25MHz | LVDS | 3.3V |
| 530FA200M000DG | Skyworks晶振 | Si530 | 200MHz | LVDS | 2.5V |
| 530AC156M250DG | Skyworks晶振 | Si530 | 156.25MHz | LVPECL | 3.3V |
| 530BC156M250DG | Skyworks晶振 | Si530 | 156.25MHz | LVDS | 3.3V |
