首页 Skyworks晶振

Si532低电压晶振,532AA000346DG,6GWIFI晶振,Skyworks差分振荡器

Si532低电压晶振,532AA000346DG,6GWIFI晶振,Skyworks差分振荡器Si532低电压晶振,532AA000346DG,6GWIFI晶振,Skyworks差分振荡器

产品简介

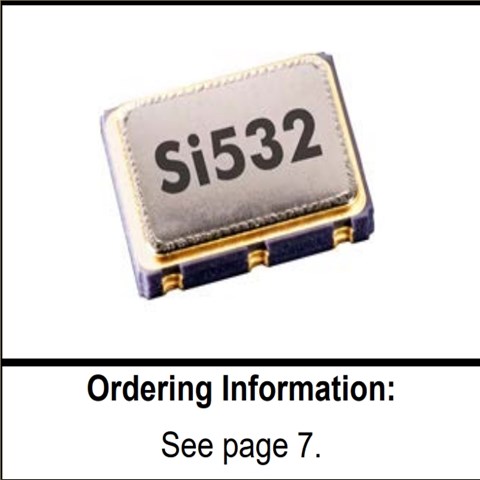

Si532低电压晶振,532AA000346DG,6GWIFI晶振,Skyworks差分振荡器，尺寸7.0×5.0mm，频率346MHz，输出逻辑LVPECL，电压3.3V，LVPECL输出晶振，差分晶体振荡器，LVPECL差分晶振，OSC差分振荡器，SMD有源差分晶振，差分石英振荡器，六脚差分晶振，6GWIFI差分晶振，6G电信差分晶振，测试测量差分晶振，仪器设备晶振，路由器差分晶振，低抖动差分晶振，低相位差分晶振，低相噪差分晶振，高质量差分晶振，高性能差分晶振，低损耗差分晶振，低功耗差分晶振，低电压差分晶振，具有高质量低电压的特点.

Si532双频XO时钟晶体振荡器采用Skyworks Solutions先进的DSPLL®电路，用于在高频下提供低抖动时钟。Si532是可提供从10到945MHz的任何频率输出频率，并选择频率至1400MHz。与传统的XO不同，XO使用不同的晶体对于每个输出频率，Si532使用一个固定晶体频率以提供宽范围的输出频率.Si532低电压晶振,532AA000346DG,6GWIFI晶振,Skyworks差分振荡器.

产品详情

1

Si532低电压晶振,532AA000346DG,6GWIFI晶振,Skyworks差分振荡器，尺寸7.0×5.0mm，频率346MHz，输出逻辑LVPECL，电压3.3V，LVPECL输出晶振，差分晶体振荡器，LVPECL差分晶振，OSC差分振荡器，SMD有源差分晶振，差分石英振荡器，六脚差分晶振，6GWIFI差分晶振，6G电信差分晶振，测试测量差分晶振，仪器设备晶振，路由器差分晶振，低抖动差分晶振，低相位差分晶振，低相噪差分晶振，高质量差分晶振，高性能差分晶振，低损耗差分晶振，低功耗差分晶振，低电压差分晶振，具有高质量低电压的特点.

Si532双频XO时钟晶体振荡器采用Skyworks Solutions先进的DSPLL®电路，用于在高频下提供低抖动时钟。Si532是可提供从10到945MHz的任何频率输出频率，并选择频率至1400MHz。与传统的XO不同，XO使用不同的晶体对于每个输出频率，Si532使用一个固定晶体频率以提供宽范围的输出频率.Si532低电压晶振,532AA000346DG,6GWIFI晶振,Skyworks差分振荡器.2

Si532低电压晶振,532AA000346DG,6GWIFI晶振,Skyworks差分振荡器 参数表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
1.8 V option 1.71 1.8 1.89 V
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS 		—
—
—
— 		111
99
90
81 		121
108
98
88 		mA
Tristate mode — 60 75 mA
Output Enable (OE)
and Frequency Select (FS)2 		VIH 0.75 x VDD — — V
VIL — — 0.5 V
Operating Temperature Range TA –40 — 85 ºC
Parameter Symbol Test Condition Min Typ Max Units
Nominal Frequency1,2 fO LVPECL/LVDS/CML 10 — 945 MHz
CMOS 10 — 160 MHz
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Temperature Stability1,3 –7
–20
–50

— 		+7
+20
+50 		ppm
Aging fa Frequency drift over first year — — ±3 ppm
Frequency drift over 20 year life — — ±10 ppm
Total Stability Temp stability = ±7 ppm ±20 ppm
Temp stability = ±20 ppm ±31.5 ppm
Temp stability = ±50 ppm — — ±61.5 ppm
Parameter Symbol Test Condition Min Typ Max Units
Powerup Time4 tOSC — — 10 ms
Settling Time After FS
Change 		tFRQ — — 10 ms
Parameter Symbol Test Condition Min Typ Max Units
LVPECL Output Option1 VO mid-level VDD– 1.42 — VDD– 1.25 V
VOD swing (diff) 1.1 — 1.9 VPP
VSE swing (single-ended) 0.55 — 0.95 VPP
LVDS Output Option2 VO mid-level 1.125 1.20 1.275 V
VOD swing (diff) 0.5 0.7 0.9 VPP
CML Output Option2 VO 2.5/3.3 V option mid-level — VDD– 1.30 — V
1.8 V option mid-level — VDD– 0.36 — V
VOD 2.5/3.3 V option swing (diff) 1.10 1.50 1.90 VPP
1.8 V option swing (diff) 0.35 0.425 0.50 VPP
CMOS Output Option3 VOH IOH= 32 mA 0.8 x VDD — VDD V
VOL IOL= 32 mA — — 0.4
Rise/Fall time (20/80%) tR,tF LVPECL/LVDS/CML — — 350 ps
CMOS with CL= 15 pF — 1 — ns
Symmetry (duty cycle) SYM LVPECL:
(diff)
LVDS:
CMOS: 		VDD– 1.3 V
1.25 V (diff)
VDD/2 		45 — 55 %
3

Si532低电压晶振,532AA000346DG,6GWIFI晶振,Skyworks差分振荡器尺寸图

Si532 7050

有源晶振产品特性：

可用于任何频率输出

频率从10MHz到945MHz

并选择1.4 GHz的频率

两个可选输出频率

具有卓越性能的第三代DSPLL®抖动性能

频率稳定性比SAW

内部固定晶体频率

确保高可靠性和低成本变老

可用的CMOS、LVPECL、LVDS和CML输出

3.3、2.5和1.8 V电源选项

行业标准5x7mm包装和引脚

无铅/符合RoHS

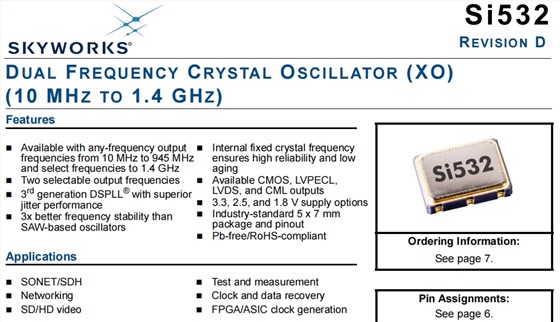

Si532 1

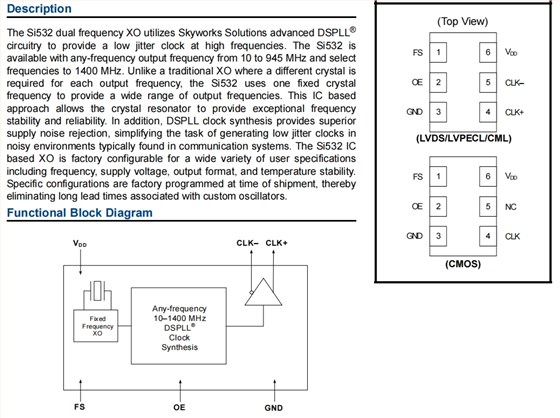

Si532 2更多相关Skyworks晶振型号
