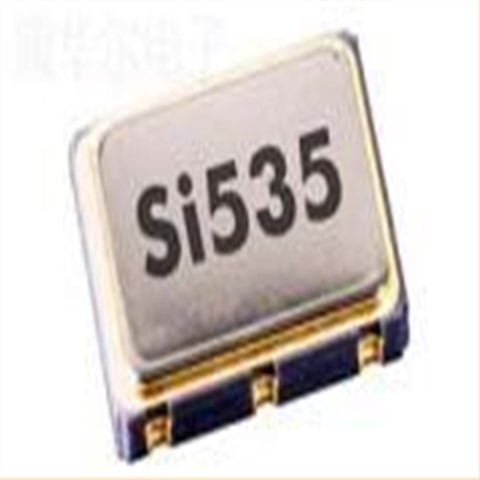

编码为535BC312M500DGR的Si535晶振是一款频率为312.5MHz，输出方式为LVDS输出的Skyworks LVDS振荡器。该晶振的电压是3.3V，频率公差为±7ppm，运行温度是-40°C~85°C，其电流是98mA，尺寸为7050mm。LVDS输出差分贴片晶振，LVDS输出振荡器，7050振荡器，LVDS石英晶体振荡器，Skyworks差分晶振。康华尔电子供应石英晶体 振荡器被广泛用于无线网络设备,智能家电,GPS 导航系统,航空装置等领域。石英晶体振荡器利用压电效应研制而成,石英谐振器具有体积小,重量轻,可靠性高,频率稳定度高等优点,被应用于家用电器和卫星通信设备中作为基准信号和更稳定的时间或频率的控制的需求正在增加,随着电子业的发展最近几年该领域的应用终端,卫星通信,图像处理,如基站增长尤其迅速。
535BC312M500DGR,312.5MHz,Si535晶振,Skyworks LVDS振荡器
|
原产编码 |
535BC312M500DGR |
|
品牌 |
Skyworks晶振 |
|
型号 |
Si535 |
|
频率 |
312.5MHz |
|
输出方式 |
LVDS |
|
电压 |
3.3V |
|
工作温度 |
﹣40℃~85℃ |
|
精度 |
±7ppm |
|
电流 |
98mA |
|
尺寸 |
7050mm |
535BC312M500DGR,312.5MHz,Si535晶振,Skyworks LVDS振荡器
更多相关晶振参考
| 原产编码 | 品牌 | 型号 | 频率 | 输出方式 | 电压 |
| 570BAB001614DGR | Skyworks晶振 | Si570 | 300MHz | LVDS | 3.3V |
| 570BAB001614DG | Skyworks晶振 | Si570 | 300MHz | LVDS | 3.3V |
| 570BAB000299DG | Skyworks晶振 | Si570 | 200MHz | LVDS | 3.3V |
| 511BBA156M250BAGR | Skyworks晶振 | Si511 | 156.25MHz | LVDS | 3.3V |
| 510BBA148M500BAG | Skyworks晶振 | Si510 | 148.5MHz | LVDS | 3.3V |
| 511BBA156M250BAG | Skyworks晶振 | Si511 | 156.25MHz | LVDS | 3.3V |
| 511JCA100M000BAG | Skyworks晶振 | Si511 | 100MHz | LVDS | 1.8V |
| 530AB25M0000DG | Skyworks晶振 | Si530 | 25MHz | LVPECL | 3.3V |
| 570GAC000112DGR | Skyworks晶振 | Si570 | 10MHz | CMOS | 2.5V |
| 531BC156M250DG | Skyworks晶振 | Si531 | 156.25MHz | LVDS | 3.3V |
| 530FB125M000DG | Skyworks晶振 | Si530 | 125MHz | LVDS | 2.5V |
| 570AAA000111DG | Skyworks晶振 | Si570 | 25MHz | LVPECL | 3.3V |
| 510FBA100M000BAG | Skyworks晶振 | Si510 | 100MHz | LVDS | 2.5V |
| 511ABA100M000BAG | Skyworks晶振 | Si511 | 100MHz | LVPECL | 3.3V |
| 511ABA125M000BAG | Skyworks晶振 | Si511 | 125MHz | LVPECL | 3.3V |
| 511FBA106M250BAG | Skyworks晶振 | Si511 | 106.25MHz | LVDS | 2.5V |
| 510CCA50M0000BAG | Skyworks晶振 | Si510 | 50MHz | CMOS | 3.3V |
| 510FBA156M250BAG | Skyworks晶振 | Si510 | 156.25MHz | LVDS | 2.5V |
| 511FBA148M500BAG | Skyworks晶振 | Si511 | 148.5MHz | LVDS | 2.5V |
| 510BBA125M000AAG | Skyworks晶振 | Si510 | 125MHz | LVDS | 3.3V |
| 511BBA106M250AAG | Skyworks晶振 | Si511 | 106.25MHz | LVDS | 3.3V |
| 510JCA100M000BAG | Skyworks晶振 | Si510 | 100MHz | LVDS | 1.8V |
| 511FCA000292CAG | Skyworks晶振 | Si511 | 161.1328MHz | LVDS | 2.5V |
| 511JCA200M000BAG | Skyworks晶振 | Si511 | 200MHz | LVDS | 1.8V |
| 510CBA50M0000BAG | Skyworks晶振 | Si510 | 50MHz | CMOS | 3.3V |
| 511ABA156M250AAG | Skyworks晶振 | Si511 | 156.25MHz | LVPECL | 3.3V |
| 511SAA100M000AAG | Skyworks晶振 | Si511 | 100MHz | CMOS | 1.8V |
| 531BA125M000DG | Skyworks晶振 | Si531 | 125MHz | LVDS | 3.3V |
| 531FA125M000DG | Skyworks晶振 | Si531 | 125MHz | LVDS | 2.5V |
| 530EB121M109DG | Skyworks晶振 | Si530 | 121.109MHz | LVPECL | 2.5V |
| 530AC125M000DG | Skyworks晶振 | Si530 | 125MHz | LVPECL | 3.3V |
| 530BC125M000DG | Skyworks晶振 | Si530 | 125MHz | LVDS | 3.3V |
| 530FC125M000DG | Skyworks晶振 | Si530 | 125MHz | LVDS | 2.5V |
| 530BA156M250DG | Skyworks晶振 | Si530 | 156.25MHz | LVDS | 3.3V |
| 530FA200M000DG | Skyworks晶振 | Si530 | 200MHz | LVDS | 2.5V |
| 514JAA000112BAG | Skyworks晶振 | Si514 | 10MHz | LVDS | 1.8V |
| 531BC156M250DGR | Skyworks晶振 | Si531 | 156.25MHz | LVDS | 3.3V |
| 591BB300M000DG | Skyworks晶振 | Si591 | 300MHz | LVDS | 3.3V |
