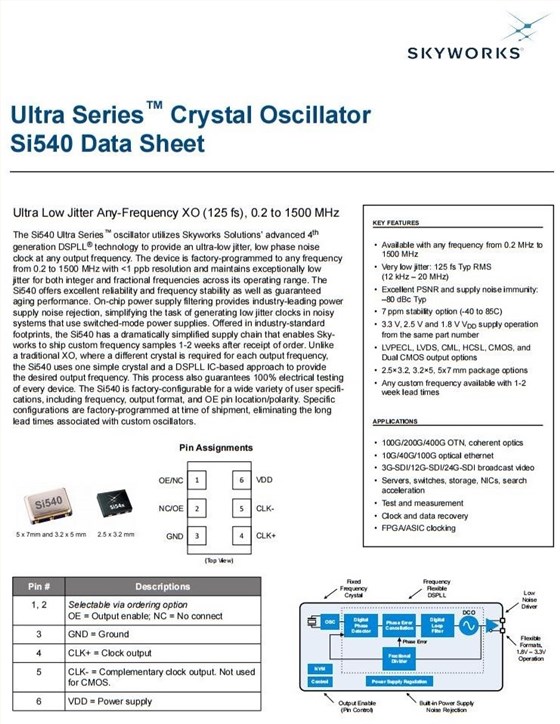

540ABA25M0000ACGR,25 MHz,Si540石英晶体振荡器,差分晶振LV-PECL
原厂编码为540ABA25M0000ACGR的Si540石英晶体振荡器 频率 25MHz，为LVPECL输出晶振，电压 2.5 v~3.3 v ，精度±10ppm ，尺寸大小 7.0*5.0*1.43mm ，也叫思佳讯晶振，Skyworks晶振，差分晶振LV-PECL。540ABA25M0000ACGR号差分晶振LV-PECL是有源贴片晶振，石英材质，SMD高速自动安装和高温回流焊设计，高稳定性，低抖动，低功耗，主要应用于无线通讯、高端智能手机、平板笔记本WLAN、蓝牙、数码相机、DSL和其他IT产品领域的晶振应用，符合无铅。
540ABA25M0000ACGR,25 MHz,Si540石英晶体振荡器,差分晶振LV-PECL
|
原产编码 |
540ABA25M0000ACGR |
|
品牌 |
Skyworks晶振 |
|
型号 |
Si540 |
|
频率 |
25 MHz |
|
输出方式 |
LVPECL |
|
电压 |
2.5V~3.3V |
|
工作温度 |
﹣40℃~85℃ |
|
精度 |
±10ppm |
|
电流 |
145mA |
540ABA25M0000ACGR,25 MHz,Si540石英晶体振荡器,差分晶振LV-PECL
更多相关晶振参考
| 原产编码 | 品牌 | 型号 | 频率 | 输出方式 | 电压 |
| 540BAA000274BBG | Skyworks晶振 | Si540 | 322.265625MHz | LVDS | 1.8V,2.5V,3.3V |
| 540AAA100M000BBG | Skyworks晶振 | Si540 | 100MHz | LVPECL | 2.5V,3.3V |
| 540AAA156M250BBG | Skyworks晶振 | Si540 | 156.25MHz | LVPECL | 2.5V,3.3V |
| 540BAA125M000BBG | Skyworks晶振 | Si540 | 125MHz | LVDS | 1.8V,2.5V,3.3V |
| 540BAA100M000BBG | Skyworks晶振 | Si540 | 100MHz | LVDS | 1.8V,2.5V,3.3V |
| 540BAA122M880BBG | Skyworks晶振 | Si540 | 122.88MHz | LVDS | 1.8V,2.5V,3.3V |
| 540DAA156M250BBG | Skyworks晶振 | Si540 | 156.25MHz | CML | 1.8V,2.5V,3.3V |
| 540BAA000244BBG | Skyworks晶振 | Si540 | 148.351648MHz | LVDS | 1.8V,2.5V,3.3V |
| 540BCA000127BBG | Skyworks晶振 | Si540 | 644.53125MHz | LVDS | 1.8V,2.5V,3.3V |
| 540BAA100M000BBGR | Skyworks晶振 | Si540 | 100MHz | LVDS | 1.8V,2.5V,3.3V |
| 540AAA100M000BBGR | Skyworks晶振 | Si540 | 100MHz | LVPECL | 2.5V,3.3V |
| 540AAA10M0000BAGR | Skyworks晶振 | Si540 | 10MHz | LVPECL | 2.5V,3.3V |
| 540AAA114M285BAGR | Skyworks晶振 | Si540 | 114.285MHz | LVPECL | 2.5V,3.3V |
| 540AAA122M880BAGR | Skyworks晶振 | Si540 | 122.88MHz | LVPECL | 2.5V,3.3V |
| 540AAA125M000BAGR | Skyworks晶振 | Si540 | 125MHz | LVPECL | 2.5V,3.3V |
| 540AAA24M0000BAGR | Skyworks晶振 | Si540 | 24MHz | LVPECL | 2.5V,3.3V |
| 540AAA25M0000BAGR | Skyworks晶振 | Si540 | 25MHz | LVPECL | 2.5V,3.3V |
| 540AAA48M0000BAGR | Skyworks晶振 | Si540 | 48MHz | LVPECL | 2.5V,3.3V |
| 540AAA50M0000BAGR | Skyworks晶振 | Si540 | 50MHz | LVPECL | 2.5V,3.3V |
| 540AAC100M000BBGR | Skyworks晶振 | Si540 | 100MHz | LVPECL | 2.5V,3.3V |
| 540AAC70M6560BAGR | Skyworks晶振 | Si540 | 70.656MHz | LVPECL | 2.5V,3.3V |
| 540BAA106M250BAGR | Skyworks晶振 | Si540 | 106.25MHz | LVDS | 1.8V,2.5V,3.3V |
| 540BAA10M0000BAGR | Skyworks晶振 | Si540 | 10MHz | LVDS | 1.8V,2.5V,3.3V |
| 540BAA125M000BBGR | Skyworks晶振 | Si540 | 125MHz | LVDS | 1.8V,2.5V,3.3V |
| 540BAA125M000BAGR | Skyworks晶振 | Si540 | 125MHz | LVDS | 1.8V,2.5V,3.3V |
| 540BAA38M400BBGR | Skyworks晶振 | Si540 | 38.4MHz | LVDS | 1.8V,2.5V,3.3V |
| 540BAA70M0000BAGR | Skyworks晶振 | Si540 | 70MHz | LVDS | 1.8V,2.5V,3.3V |
| 540BAA70M6560BAGR | Skyworks晶振 | Si540 | 70MHz | LVDS | 1.8V,2.5V,3.3V |
| 540BAA80M0000BAGR | Skyworks晶振 | Si540 | 80MHz | LVDS | 1.8V,2.5V,3.3V |
| 540BAA96M0000BAGR | Skyworks晶振 | Si540 | 96MHz | LVDS | 1.8V,2.5V,3.3V |
