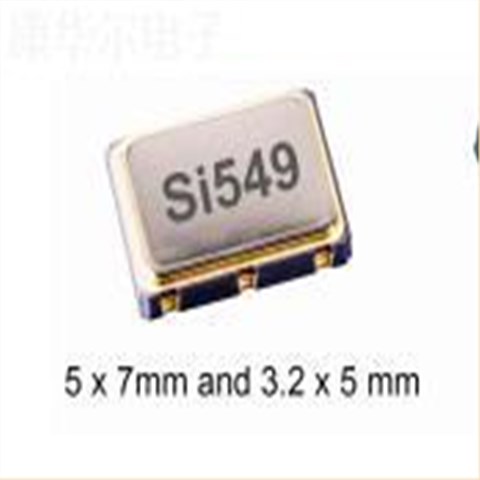

LVDS输出晶振Si549型号中的编码为549BAAB000118ABGR的晶体频率是156.25MHz 输出方式为LVDS，该晶体也称呼LVDS差分贴片晶振，尺寸7050m，该晶振也叫7050振荡器。贴片石英晶体,体积小,焊接可采用自动贴片系统,产品本身小型,表面贴片晶振,特别适用于有小型化要求的电子数码产品市场领域,因产品小型,薄型优势,耐环境特性,包括耐高温,耐冲击性等,在移动通信领域得到了广泛的应用。
549BAAB000118ABGR,LVDS输出晶振Si549,156.25 MHz
|
原产编码 |
549BAAB000118ABGR |
|
品牌 |
Skyworks晶振 |
|
型号 |
Si549 |
|
频率 |
156.25 MHz |
|
输出方式 |
LVDS |
|
电压 |
1.8V, 2.5V, 3.3V |
|
工作温度 |
﹣40℃~85℃ |
|
精度 |
±20ppm |
|
电流 |
121mA |
|
尺寸 |
7050mm |
549BAAB000118ABGR,LVDS输出晶振Si549,156.25 MHz
更多相关晶振参考
| 原产编码 | 品牌 | 型号 | 频率 | 输出方式 | 电压 |
| 549BAAB000212BCGR | Skyworks晶振 | Si549 | 10MHz | LVDS | 1.8V~3.3V |
| 549BACB000148ACG | Skyworks晶振 | Si549 | 24.576MHz | LVDS | 1.8V~3.3V |
| 549AAAC000118ACG | Skyworks晶振 | Si549 | 156.25MHz | LVPECL | 2.5V~3.3V |
| 549BCCB002128ACG | Skyworks晶振 | Si549 | 200MHz | LVDS | 1.8V~3.3V |
| 549CCCC000141ACG | Skyworks晶振 | Si549 | 56.32MHz | CMOS | 1.8V~3.3V |
| 549BABA000368ACG | Skyworks晶振 | Si549 | 122.88MHz | LVDS | 1.8V~3.3V |
| 549AAAA000426ACG | Skyworks晶振 | Si549 | 145MHz | LVPECL | 2.5V~3.3V |
| 549BAAB001589ACG | Skyworks晶振 | Si549 | 125MHz | LVDS | 1.8V~3.3V |
| 549BBAA001968ACG | Skyworks晶振 | Si549 | 1.2GHz | LVDS | 1.8V~3.3V |
| 549BAAC001741ACG | Skyworks晶振 | Si549 | 70.656MHz | LVDS | 1.8V~3.3V |
| 549BAAA000112ACG | Skyworks晶振 | Si549 | 10MHz | LVDS | 1.8V~3.3V |
| 549AAAA000112ACG | Skyworks晶振 | Si549 | 10MHz | LVPECL | 2.5V~3.3V |
| 549BAAB000118ACG | Skyworks晶振 | Si549 | 156.25MHz | LVDS | 1.8V~3.3V |
| 549CCAC000141ACG | Skyworks晶振 | Si549 | 56.32MHz | CMOS | 1.8V~3.3V |
| 549CAAC000112ACG | Skyworks晶振 | Si549 | 10MHz | CMOS | 1.8V~3.3V |
| 549BAAA001968ACG | Skyworks晶振 | Si549 | 1.2GHz | LVDS | 1.8V~3.3V |
| 549BACA001937ACG | Skyworks晶振 | Si549 | 125MHz | LVDS | 1.8V~3.3V |
| 549BACA000112ACG | Skyworks晶振 | Si549 | 10MHz | LVDS | 1.8V~3.3V |
| 549BCCB002127ACG | Skyworks晶振 | Si549 | 200MHz | LVDS | 1.8V~3.3V |
| 549BCBA000122ACG | Skyworks晶振 | Si549 | 1GHz | LVDS | 1.8V~3.3V |
| 549CAAA000112ACG | Skyworks晶振 | Si549 | 10MHz | CMOS | 1.8V~3.3V |
| 549BACB000112ACG | Skyworks晶振 | Si549 | 10MHz | LVDS | 1.8V~3.3V |
| 549BCAB000112ACG | Skyworks晶振 | Si549 | 10MHz | LVDS | 1.8V~3.3V |
| 549BCCB002129ACG | Skyworks晶振 | Si549 | 199MHz | LVDS | 1.8V~3.3V |
| 549BCCB000126ACG | Skyworks晶振 | Si549 | 200MHz | LVDS | 1.8V~3.3V |
| 549CBAC000508ACG | Skyworks晶振 | Si549 | 25MHz | CMOS | 1.8V~3.3V |
| 549DACB001619ACG | Skyworks晶振 | Si549 | 156.25MHz | CML | 1.8V~3.3V |
| 549ACAA000112ACG | Skyworks晶振 | Si549 | 10MHz | LVPECL | 2.5V~3.3V |
| 549CCAC000118ACG | Skyworks晶振 | Si549 | 156.25MHz | CMOS | 1.8V~3.3V |
| 549GCDC002122ACG | Skyworks晶振 | Si549 | 71.135MHz | CMOS | 1.8V~3.3V |
| 549AAAA001372ACG | Skyworks晶振 | Si549 | 7MHz | LVPECL | 2.5V~3.3V |
