Skyworks LVPECL输出晶振,Si590差分晶振,156.25 MHz,590AG156M250DGR

产品简介

编码590AG156M250DGR的Si590差分晶振频率为156.25 MHz，其输出方式为LVPECL，所以也叫作Skyworks LVPECL输出晶振、LVPECL差分晶振、LVPECL输出晶振、LVPECL输出差分贴片晶振，电压3.3V ，精度±20ppm，电流125mA，尺寸5032mm ，工作温度﹣40℃~85℃

产品详情

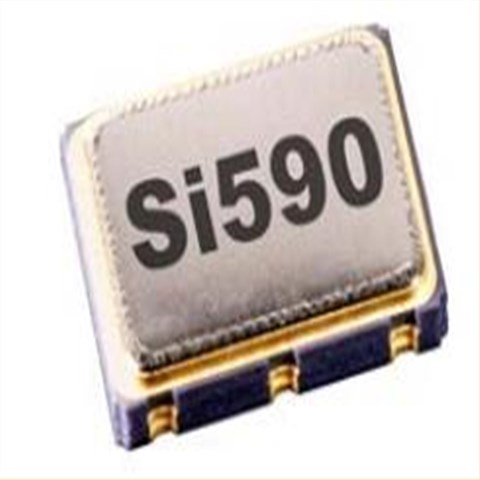

Skyworks LVPECL输出晶振,Si590差分晶振,156.25 MHz,590AG156M250DGR

编码590AG156M250DGR的Si590差分晶振频率为156.25 MHz，其输出方式为LVPECL，所以也叫作Skyworks LVPECL输出晶振、LVPECL差分晶振，Skyworks是美国著名晶振公司，拥有先进的生产设备和测试仪器，采用ISO9002 质量管理体系进行生产、技术管理，是集科研、开发于一体的国际一流晶振公司。

ggt2

Skyworks LVPECL输出晶振,Si590差分晶振,156.25 MHz,590AG156M250DGR

原产编码	590AG156M250DGR
品牌	Skyworks晶振
型号	Si590
频率	156.25 MHz
输出方式	LVPECL
电压	3.3V
工作温度	﹣40℃~85℃
精度	±20ppm
电流	125mA
尺寸	5032mm

ggt3

Skyworks LVPECL输出晶振,Si590差分晶振,156.25 MHz,590AG156M250DGR

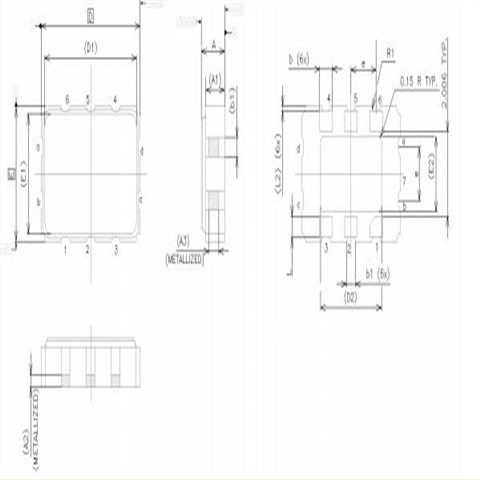

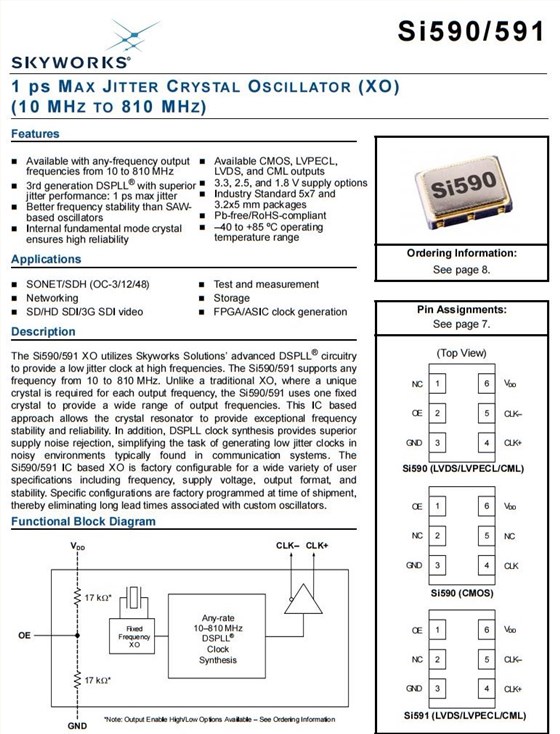

si590 591 cct5032

更多相关晶振参考

原产编码	品牌	型号	频率	输出方式	电压
590FD297M000DG	Skyworks晶振	Si590	297MHz	LVDS	2.5V
590CA25M6000DGR	Skyworks晶振	Si590	25.6MHz	CMOS	3.3V
590CA25M6000DG	Skyworks晶振	Si590	25.6MHz	CMOS	3.3V
590AB10M0000DG	Skyworks晶振	Si590	10MHz	LVPECL	3.3V
590AB22M1184DG	Skyworks晶振	Si590	22.1184MHz	LVPECL	3.3V
590CA100M000DGR	Skyworks晶振	Si590	100MHz	CMOS	3.3V
590CA10M0000DGR	Skyworks晶振	Si590	10MHz	CMOS	3.3V
590CA112M192DGR	Skyworks晶振	Si590	112.192MHz	CMOS	3.3V
590CA112M640DGR	Skyworks晶振	Si590	112.64MHz	CMOS	3.3V
590CA113M000DGR	Skyworks晶振	Si590	113MHz	CMOS	3.3V
590CA11M0592DGR	Skyworks晶振	Si590	11.0592MHz	CMOS	3.3V
590CA125M000DGR	Skyworks晶振	Si590	125MHz	CMOS	3.3V
590CA12M0000DGR	Skyworks晶振	Si590	12MHz	CMOS	3.3V
590CA13M7680DGR	Skyworks晶振	Si590	13.768MHz	CMOS	3.3V
590CA16M0000DGR	Skyworks晶振	Si590	16MHz	CMOS	3.3V
590CA19M5300DGR	Skyworks晶振	Si590	19.53MHz	CMOS	3.3V
590CA24M5760DGR	Skyworks晶振	Si590	24.576MHz	CMOS	3.3V
590CA25M0000DGR	Skyworks晶振	Si590	25MHz	CMOS	3.3V
590CA27M5000DGR	Skyworks晶振	Si590	27.5MHz	CMOS	3.3V
590CA31M2500DGR	Skyworks晶振	Si590	31.25MHz	CMOS	3.3V
590CA32M9560DGR	Skyworks晶振	Si590	32.956MHz	CMOS	3.3V
590CA35M3280DGR	Skyworks晶振	Si590	35.328MHz	CMOS	3.3V
590CA49M1520DGR	Skyworks晶振	Si590	49.152MHz	CMOS	3.3V
590CA50M0000DGR	Skyworks晶振	Si590	50MHz	CMOS	3.3V
590CA50M1000DGR	Skyworks晶振	Si590	50.1MHz	CMOS	3.3V
590CA56M9600DGR	Skyworks晶振	Si590	56.96MHz	CMOS	3.3V
590CA66M7340DGR	Skyworks晶振	Si590	66.734MHz	CMOS	3.3V
