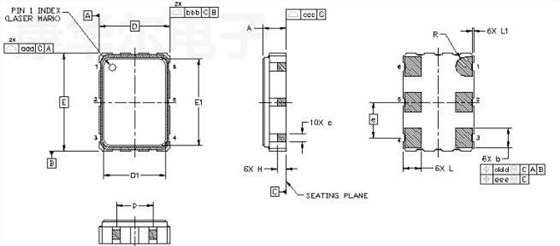

Si590晶振中编码为590FD297M000DG的频率是297MHz，其输出方式为LVDS输出，是Skyworks LVDS差分晶振。该Si590晶振的电压是2.5V，频率公差为±7ppm，运行温度是-40°C~85°C，该Si590晶振的尺寸是7.0*5.0*1.8mm，电流为100mA。该晶振也叫Skyworks差分晶振，LVDS差分晶体振荡器，7050晶振。差分晶振可提供两种相位彼此完全相反的信号, 差分晶体振荡器属于行业里极其高端 的有源晶振,拥有 LVDS,LVPECL,HCMOS 等输出方式,我们常见的是贴片差分晶振,体积有 微小型也有大体积,常规的输出方式是 LVDS,因此在业界中还有 LVDS 差分晶振这一说法, 军事设备与工业设备应用比较比较多。差分晶振是有源晶体振荡器中的一种，用于产生高稳定性的频率信号。它主要由两个互补的晶体振荡器和一个固定的电容构成。
590FD297M000DG,Skyworks LVDS差分晶振,Si590晶振,297MHz
|
原产编码 |
590FD297M000DG |
|
品牌 |
Skyworks晶振 |
|
型号 |
Si590 |
|
频率 |
297MHz |
|
输出方式 |
LVDS |
|
电压 |
2.5V |
|
工作温度 |
﹣40℃~85℃ |
|
精度 |
±7ppm |
|
电流 |
100mA |
|
尺寸 |
7050mm |
590FD297M000DG,Skyworks LVDS差分晶振,Si590晶振,297MHz
更多相关晶振参考
| 原产编码 | 品牌 | 型号 | 频率 | 输出方式 | 电压 |
| 590FD297M000DG | Skyworks晶振 | Si590 | 297MHz | LVDS | 2.5V |
| 590CA25M6000DGR | Skyworks晶振 | Si590 | 25.6MHz | CMOS | 3.3V |
| 590CA25M6000DG | Skyworks晶振 | Si590 | 25.6MHz | CMOS | 3.3V |
| 590AB10M0000DG | Skyworks晶振 | Si590 | 10MHz | LVPECL | 3.3V |
| 590AB22M1184DG | Skyworks晶振 | Si590 | 22.1184MHz | LVPECL | 3.3V |
| 590CA100M000DGR | Skyworks晶振 | Si590 | 100MHz | CMOS | 3.3V |
| 590CA10M0000DGR | Skyworks晶振 | Si590 | 10MHz | CMOS | 3.3V |
| 590CA112M192DGR | Skyworks晶振 | Si590 | 112.192MHz | CMOS | 3.3V |
| 590CA112M640DGR | Skyworks晶振 | Si590 | 112.64MHz | CMOS | 3.3V |
| 590CA113M000DGR | Skyworks晶振 | Si590 | 113MHz | CMOS | 3.3V |
| 590CA11M0592DGR | Skyworks晶振 | Si590 | 11.0592MHz | CMOS | 3.3V |
| 590CA125M000DGR | Skyworks晶振 | Si590 | 125MHz | CMOS | 3.3V |
| 590CA12M0000DGR | Skyworks晶振 | Si590 | 12MHz | CMOS | 3.3V |
| 590CA13M7680DGR | Skyworks晶振 | Si590 | 13.768MHz | CMOS | 3.3V |
| 590CA16M0000DGR | Skyworks晶振 | Si590 | 16MHz | CMOS | 3.3V |
| 590CA19M5300DGR | Skyworks晶振 | Si590 | 19.53MHz | CMOS | 3.3V |
| 590CA24M5760DGR | Skyworks晶振 | Si590 | 24.576MHz | CMOS | 3.3V |
| 590CA25M0000DGR | Skyworks晶振 | Si590 | 25MHz | CMOS | 3.3V |
| 590CA27M5000DGR | Skyworks晶振 | Si590 | 27.5MHz | CMOS | 3.3V |
| 590CA31M2500DGR | Skyworks晶振 | Si590 | 31.25MHz | CMOS | 3.3V |
| 590CA32M9560DGR | Skyworks晶振 | Si590 | 32.956MHz | CMOS | 3.3V |
| 590CA35M3280DGR | Skyworks晶振 | Si590 | 35.328MHz | CMOS | 3.3V |
| 590CA49M1520DGR | Skyworks晶振 | Si590 | 49.152MHz | CMOS | 3.3V |
| 590CA50M0000DGR | Skyworks晶振 | Si590 | 50MHz | CMOS | 3.3V |
| 590CA50M1000DGR | Skyworks晶振 | Si590 | 50.1MHz | CMOS | 3.3V |
| 590CA56M9600DGR | Skyworks晶振 | Si590 | 56.96MHz | CMOS | 3.3V |
| 590CA66M7340DGR | Skyworks晶振 | Si590 | 66.734MHz | CMOS | 3.3V |
| 590CA74M2500DGR | Skyworks晶振 | Si590 | 74.25MHz | CMOS | 3.3V |
