6G放大器晶振,603-25-150JA4C8,IDT艾迪悌晶振，尺寸3.2x2.50mm，频率25MHZ，欧美进口晶振，艾迪悌无源晶体，石英晶体谐振器，四脚贴片晶振，水晶振动子，超小型晶振，25MHZ无源晶体，轻薄型晶振，无铅环保晶振，水晶振动子，SMD晶振，石英无源晶振，石英晶振，进口无源晶振，低老化石英晶振，低功耗无源晶振，低损耗晶振，高品质贴片晶振，高性能石英晶振，智能家居晶振，通信应用晶振，娱乐设备晶振，蓝牙音响晶振，测试测量晶振，小型设备晶振，无线网络专用晶振，物联网专用无源晶体，平板电脑专用晶振，具有超高的可靠性能以及耐压性能，石英晶振产品十分适合用于智能家居，通信应用，娱乐设备，蓝牙音响，测试测量，小型设备，无线网络，物联网，平板电脑等领域.6G放大器晶振,603-25-150JA4C8,IDT艾迪悌晶振.

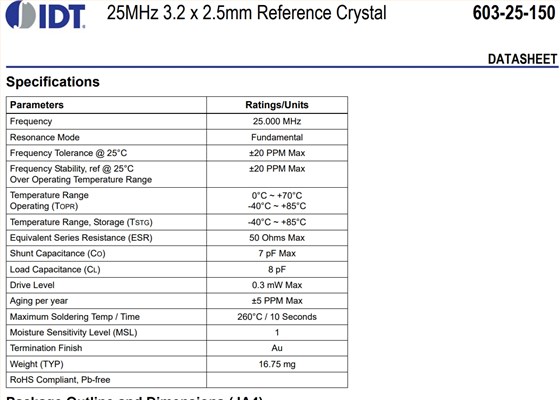

6G放大器晶振,603-25-150JA4C8,IDT艾迪悌晶振 参数表
| Parameters Ratings/Units | |
| Frequency | 25.000 MHz |
| Resonance Mode | Fundamental |
| Frequency Tolerance @ 25°C | ±20 PPM Max |
|
Frequency Stability, ref @ 25°C Over Operating TemperatureRange |
0°C ~ +70°C -40°C ~ +85°C |
| Temperature Range, Storage (TSTG) | -40°C ~ +85°C |
| Equivalent Series Resistance (ESR) | 50 Ohms Max |
| Shunt Capacitance (CO) | 7 pF Max |
| Load Capacitance (CL) | 8 pF |
| Drive Level | 0.3 mW Max |
| Aging per year | ±5 PPM Max |
| Maximum Soldering Temp / Time | 260°C / 10 Seconds |
| Moisture Sensitivity Level (MSL) | 1 |
| Termination Finish | Au |
| Weight (TYP) | 16.75 mg |

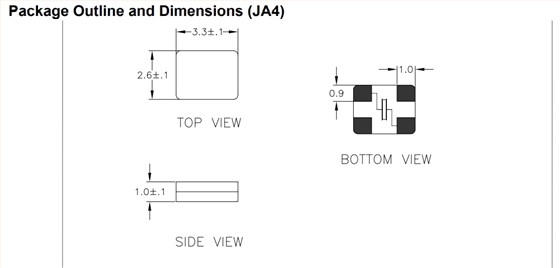

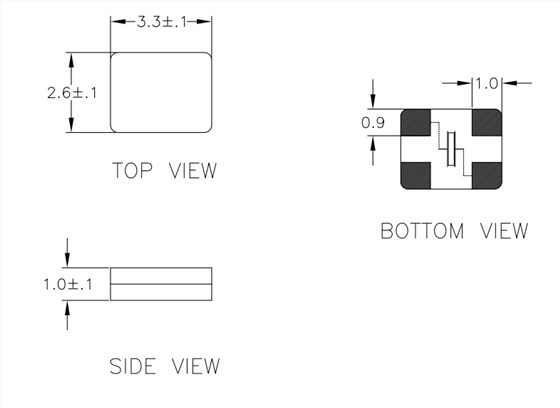

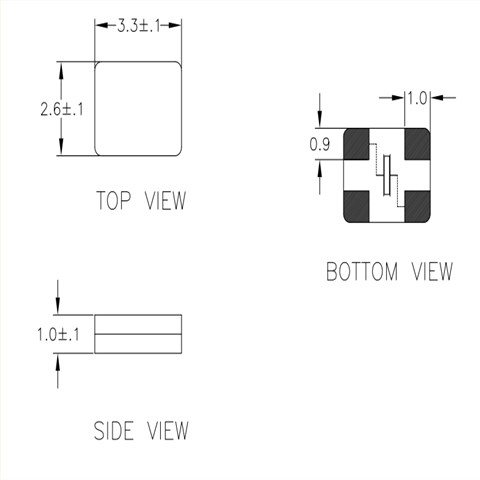

6G放大器晶振,603-25-150JA4C8,IDT艾迪悌晶振 尺寸图
贴片晶振产品特性：
优异的老化特性
符合RoHS标准且无铅
小尺寸晶体
更多相关IDT艾迪悌石英晶振型号
| Manufacturer Part Number原厂编码 | Manufacturer厂家 | Description 参数 | Type 系列 | Frequency | Frequency Stability频率稳定度 |
| 603-25-150JA4I8 | IDT晶振 | CRYSTAL 25.0000MHZ 8PF SMD | MHz Crystal | 25MHz | ±20ppm |
| 603-38.88-7JA4I8 | IDT晶振 | CRYSTAL 38.88MHZ 12PF SMD | MHz Crystal | 38.88MHz | ±20ppm |
| 603-38.88-7JA4I8 | IDT晶振 | CRYSTAL 38.88MHZ 12PF SMD | MHz Crystal | 38.88MHz | ±20ppm |
| 603-38.88-7JA4I8 | IDT晶振 | CRYSTAL 38.88MHZ 12PF SMD | MHz Crystal | 38.88MHz | ±20ppm |
| 603-40-48JA4I8 | IDT晶振 | CRYSTAL 40.0000MHZ 5PF SMD | MHz Crystal | 40MHz | ±20ppm |
| 603-40-48JA4I8 | IDT晶振 | CRYSTAL 40.0000MHZ 5PF SMD | MHz Crystal | 40MHz | ±20ppm |
| 603-40-48JA4I8 | IDT晶振 | CRYSTAL 40.0000MHZ 5PF SMD | MHz Crystal | 40MHz | ±20ppm |
| 116B-40-3SH41 | IDT晶振 | CRYSTAL | - | - | - |
| 124B-40-2SH41 | IDT晶振 | CRYSTAL | - | - | - |
| 278-14.31A-91SA2I | IDT晶振 | CRYSTAL | - | - | - |
| 278-14.31A-91SA2I8 | IDT晶振 | CRYSTAL | - | - | - |
| 278-24.8832-3SA2I | IDT晶振 | CRYSTAL 24.8330MHZ 10PF SMD | MHz Crystal | 24.833MHz | ±20ppm |
| 278-24.8832-3SA2I8 | IDT晶振 | CRYSTAL 24.8330MHZ 10PF SMD | MHz Crystal | 24.833MHz | ±20ppm |
| 278-24-157SA2I | IDT晶振 | CRYSTAL | - | - | - |
| 278-24-157SA2I8 | IDT晶振 | CRYSTAL | - | - | - |
| 278-25.78125-1SA2I | IDT晶振 | CRYSTAL 25.7810MHZ 10PF SMD | MHz Crystal | 25.781MHz | ±20ppm |
| 278-25-336SA2I | IDT晶振 | CRYSTAL 25.0000MHZ 10PF SMD | MHz Crystal | 25MHz | ±20ppm |
| 278-25-336SA2I8 | IDT晶振 | CRYSTAL 25.0000MHZ 10PF SMD | MHz Crystal | 25MHz | ±20ppm |
| 278-2578125-1SA2I8 | IDT晶振 | CRYSTAL 25.781MHZ 10PF SMD | MHz Crystal | 25.781MHz | ±20ppm |
| 278LF-8-206SA2X | IDT晶振 | CRYSTAL | - | - | - |
| 278LF-8-206SA2X8 | IDT晶振 | CRYSTAL | - | - | - |
| 443-7.3728-1JU6I | IDT晶振 | CRYSTAL | - | - | - |
| 445-7.3728-1JU6I | IDT晶振 | CRYSTAL | - | - | - |
| 495-24.8832-2JB4I | IDT晶振 | CRYSTAL 24.8830MHZ 10PF SMD | MHz Crystal | 24.883MHz | ±20ppm |
| 495-24.8832-2JB4I8 | IDT晶振 | CRYSTAL 24.8830MHZ 10PF SMD | MHz Crystal | 24.883MHz | ±20ppm |
| 495-25.78125-2JB4I | IDT晶振 | CRYSTAL 25.7810MHZ 10PF SMD | MHz Crystal | 25.781MHz | ±20ppm |
| 495-25-141JB4I | IDT晶振 | CRYSTAL 25.0000MHZ 10PF SMD | MHz Crystal | 25MHz | ±20ppm |
| 495-25-141JB4I8 | IDT晶振 | CRYSTAL 25.0000MHZ 10PF SMD | MHz Crystal | 25MHz | ±20ppm |
| 495-2578125-2JB4I8 | IDT晶振 | CRYSTAL 25.7810MHZ 10PF SMD | MHz Crystal | 25.781MHz | ±20ppm |
| 495-48-13JB4X | IDT晶振 | CRYSTAL | - | - | - |
| 495-48-13JB4X8 | IDT晶振 | CRYSTAL | - | - | - |
| 507B25-31JA4X | IDT晶振 | CRYSTAL | - | - | - |
| 507B25-31JA4X8 | 美国进口IDT晶体 | CRYSTAL | - | - | - |
| 589-25-21SJ4I | IDT晶振 | CRYSTAL | - | - | - |
| 589-25-21SJ4I8 | IDT晶振 | CRYSTAL | - | - | - |
| 603-24-127JA4I | IDT晶振 | CRYSTAL 24.0000MHZ 12PF SMD | MHz Crystal | 24MHz | ±30ppm |
| 603-24-127JA4I8 | IDT晶振 | CRYSTAL 24.0000MHZ 12PF SMD | MHz Crystal | 24MHz | ±30ppm |
| 603-25-150JA4C | IDT晶振 | CRYSTAL 25.0000MHZ 8PF SMD | MHz Crystal | 25MHz | ±20ppm |
| 603-25-150JA4C8 | IDT晶振 | CRYSTAL 25.0000MHZ 8PF SMD | MHz Crystal | 25MHz | ±20ppm |
| 673-50-2SR4I | IDT晶振 | CRYSTAL | - | - | - |
| 678-120-2JU6I | IDT晶振 | CRYSTAL | - | - | - |
| 678-120-2JU6I8 | IDT晶振 | CRYSTAL | - | - | - |
| 678-122.88-3JU6I | IDT晶振 | CRYSTAL | - | - | - |
| 678-122.88-3JU6I8 | IDT晶振 | CRYSTAL | - | - | - |
