32.768K,7CZ-32.768KBA-T,台产TXC晶振,7CZ钟表晶振,5032石英贴片晶振
台产TXC晶振中物料编码为7CZ-32.768KBA-T的7CZ石英贴片，也叫7CZ钟表晶振，该晶振的频率是32.768KHz，精度为±25ppm，为CMOS输出晶振，电压为3.3V，电流是3mA，其工作温度在-10°C~70°C，尺寸是5.0x3.2mm，为5032石英贴片晶振。该晶振也叫台湾晶技晶振、CMOS有源晶振，石英晶体振荡器、计算机电脑晶振、PC主板晶振、网络设备晶振、路由器晶振、四脚SMD晶振。符合RoHS标准&Pb免费。康华尔电子专注于生产:石英晶振,表晶,32.768KHZ,陶瓷晶振,贴片晶振,有源晶振,VC-TCXO 压控温补振荡器,温补晶振,压控振荡器等系列产品.产品广泛应用于钟表,通讯设备,电脑,音响,仪器仪表,家用电器,卫星导航系统,及各种频率控制设备。
32.768K,7CZ-32.768KBA-T,台产TXC晶振,7CZ钟表晶振,5032石英贴片晶振
| 编码 | 7CZ-32.768KBA-T |
| 品牌 | TXC晶振 |
| 型号 | 7CZ |
| 频率 | 32.768kHz |
| 输出方式 | CMOS |
| 电压 | 3.3V |
| 频率公差 | ±25ppm |
| 工作温度 | -10°C~70°C |
| 电流 | 3mA |

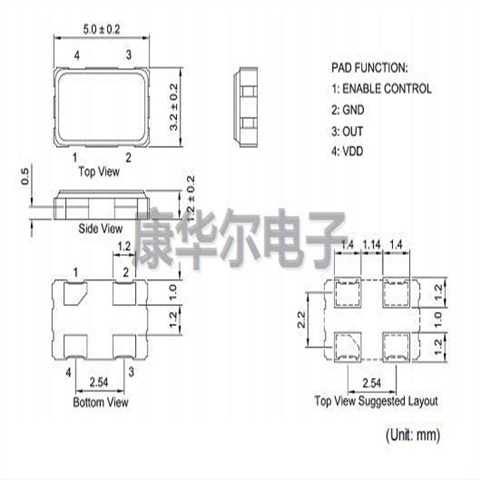

| 尺寸 | 5.00mmx3.20mm |
32.768K,7CZ-32.768KBA-T,台产TXC晶振,7CZ钟表晶振,5032石英贴片晶振
更多相关晶振参考
| 物料编码 | 制造商 | 型号 | 频率 | 输出 | 电压 | 精度 |
| 7CZ-32.768KBA-T | TXC晶振 | 7CZ | 32.768kHz | CMOS | 3.3V | ±25ppm |
| 7C-40.000MBA-T | TXC晶振 | 7C | 40MHz | CMOS | 3.3V | ±25ppm |
| 7C-48.000MBE-T | TXC晶振 | 7C | 48MHz | CMOS | 3.3V | ±50ppm |
| 7C-6.000MBB-T | TXC晶振 | 7C | 6MHz | CMOS | 3.3V | ±50ppm |
| 7C-16.000MBB-T | TXC晶振 | 7C | 16MHz | CMOS | 3.3V | ±50ppm |
| 7C-6.000MBA-T | TXC晶振 | 7C | 6MHz | CMOS | 3.3V | ±25ppm |
| 7C-14.31818MBA-T | TXC晶振 | 7C | 14.31818MHz | CMOS | 3.3V | ±25ppm |
| 7C-33.3330MBA-T | TXC晶振 | 7C | 33.333MHz | CMOS | 3.3V | ±25ppm |
| 7CZ-32.768KATF-T | TXC晶振 | 7CZ | 32.768kHz | CMOS | 5V | ±25ppm |
| 7CZ-32.768KAAT-T | TXC晶振 | 7CZ | 32.768kHz | CMOS | 2.5V~3.3V | ±25ppm |
| 7CZ-32.768KBTF-T | TXC晶振 | 7CZ | 32.768kHz | CMOS | 3.3V | ±25ppm |
| 7CZ-32.768KBAT-T | TXC晶振 | 7CZ | 32.768kHz | CMOS | 3.3V | ±25ppm |
| 7CZ-32.768KCTF-T | TXC晶振 | 7CZ | 32.768kHz | CMOS | 2.5V | ±25ppm |
| 7CZ-32.768KCAT-T | TXC晶振 | 7CZ | 32.768kHz | CMOS | 2.5V | ±25ppm |
| 7C-133.3330MDB-T | TXC晶振 | 7C | 133.333MHz | CMOS | 1.8V | ±50ppm |
| 7C-75.000MDB-T | TXC晶振 | 7C | 75MHz | CMOS | 1.8V | ±50ppm |
| 7C-80.000MDB-T | TXC晶振 | 7C | 80MHz | CMOS | 1.8V | ±50ppm |
| 7C-100.000MDB-T | TXC晶振 | 7C | 100MHz | CMOS | 1.8V | ±50ppm |
| 7C-100.000MBE-T | TXC晶振 | 7C | 100MHz | CMOS | 3.3V | ±50ppm |
| 7C-75.000MBE-T | TXC晶振 | 7C | 75MHz | CMOS | 3.3V | ±50ppm |
| 7C-77.760MBE-T | TXC晶振 | 7C | 77.76MHz | CMOS | 3.3V | ±50ppm |
| 7C-80.000MEA-T | TXC晶振 | 7C | 80MHz | CMOS | 2.8V | ±25ppm |
| 7C-100.000MDE-T | TXC晶振 | 7C | 100MHz | CMOS | 1.8V | ±50ppm |
| 7C-133.3330MDE-T | TXC晶振 | 7C | 133.333MHz | CMOS | 1.8V | ±50ppm |
| 7C-125.000MBE-T | TXC晶振 | 7C | 125MHz | CMOS | 3.3V | ±50ppm |
| 7C-133.000MBE-T | TXC晶振 | 7C | 133MHz | CMOS | 3.3V | ±50ppm |
| 7C-156.250MBE-T | TXC晶振 | 7C | 156.25MHz | CMOS | 3.3V | ±50ppm |
| 7C-100.000MBF-T | TXC晶振 | 7C | 100MHz | CMOS | 3.3V | ±100ppm |
| 7C-4.000MBA-T | TXC晶振 | 7C | 4MHz | CMOS | 3.3V | ±25ppm |
| 7C-8.000MBA-T | TXC晶振 | 7C | 8MHz | CMOS | 3.3V | ±25ppm |
| 7C-12.000MBA-T | TXC晶振 | 7C | 12MHz | CMOS | 3.3V | ±25ppm |
| 7C-16.000MBA-T | TXC晶振 | 7C | 16MHz | CMOS | 3.3V | ±25ppm |
| 7C-20.000MBA-T | TXC晶振 | 7C | 20MHz | CMOS | 3.3V | ±25ppm |
| 7C-24.000MBA-T | TXC晶振 | 7C | 24MHz | CMOS | 3.3V | ±25ppm |
| 7C-44.000MBA-T | TXC晶振 | 7C | 44MHz | CMOS | 3.3V | ±25ppm |
| 7C-48.000MBA-T | TXC晶振 | 7C | 48MHz | CMOS | 3.3V | ±25ppm |
| 7C-50.000MBA-T | TXC晶振 | 7C | 50MHz | CMOS | 3.3V | ±25ppm |
