16.384MHz,ABM10W-16.3840MHZ-8-D1X-T3,艾博康ABM10W谐振器

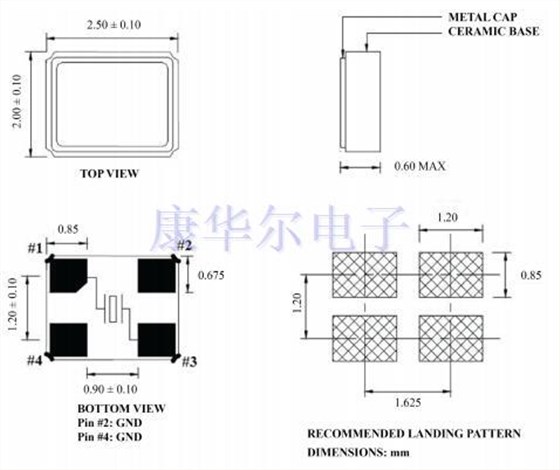

康华尔电子在2018年与多个欧美晶振品牌签订代销代理同盟合作关系:ECS晶振,ABRACON晶振,CTS晶振,JAUCH晶振等多个晶振进口品牌合作关系,主要以车规晶振,工业级晶振,石英晶振,差分晶体振荡器,进口差分晶振,军工晶体为主打.优质的品质:高频,高稳,高温,小尺寸,低相噪,低抖动,低能耗,低功率,底电压等优势的进口差分晶振。美国进口艾博康晶振中物料编码为ABM10W-16.3840MHZ-8-D1X-T3的艾博康ABM10W谐振器，该晶振的频率是16.384MHz，精度为±10ppm，负载电容是8PF，串联电阻为100?，其工作温度在-40°C~85°C，尺寸是2.5mm×2.0mm。该晶振也叫美国进口晶振、2520贴片晶振，艾博康石英晶振，艾博康无源晶体、蓝牙晶振、物联网晶振、无线模块晶振。符合RoHS标准。
16.384MHz,ABM10W-16.3840MHZ-8-D1X-T3,艾博康ABM10W谐振器
16.384MHz,ABM10W-16.3840MHZ-8-D1X-T3,艾博康ABM10W谐振器
更多相关晶振参考
| 编码 | 品牌 | 型号 | 工作温度 | 频率 | 频率公差 |
| ABM10W-16.3840MHZ-8-D1X-T3 | Abracon晶振 | ABM10W | -40°C~85°C | 16.384MHz | ±10ppm |
| ABM10W-16.3840MHZ-8-D2X-T3 | Abracon晶振 | ABM10W | -40°C~85°C | 16.384MHz | ±20ppm |
| ABM10W-16.3840MHZ-8-J1Z-T3 | Abracon晶振 | ABM10W | -40°C~105°C | 16.384MHz | ±10ppm |
| ABM10W-16.3840MHZ-8-J2Z-T3 | Abracon晶振 | ABM10W | -40°C~105°C | 16.384MHz | ±20ppm |
| ABM10W-16.3840MHZ-8-K1Z-T3 | Abracon晶振 | ABM10W | -40°C~125°C | 16.384MHz | ±10ppm |
| ABM10W-16.3840MHZ-8-K2Z-T3 | Abracon晶振 | ABM10W | -40°C~125°C | 16.384MHz | ±20ppm |
| ABM10W-16.6667MHZ-4-D1X-T3 | Abracon晶振 | ABM10W | -40°C~85°C | 16.6667MHz | ±10ppm |
| ABM10W-16.6667MHZ-4-D2X-T3 | Abracon晶振 | ABM10W | -40°C~85°C | 16.6667MHz | ±20ppm |
| ABM10W-16.6667MHZ-4-J1Z-T3 | Abracon晶振 | ABM10W | -40°C~105°C | 16.6667MHz | ±10ppm |
| ABM10W-16.6667MHZ-4-J2Z-T3 | Abracon晶振 | ABM10W | -40°C~105°C | 16.6667MHz | ±20ppm |
| ABM10W-16.6667MHZ-4-K1Z-T3 | Abracon晶振 | ABM10W | -40°C~125°C | 16.6667MHz | ±10ppm |
| ABM10W-16.6667MHZ-4-K2Z-T3 | Abracon晶振 | ABM10W | -40°C~125°C | 16.6667MHz | ±20ppm |
| ABM10W-16.6667MHZ-6-D1X-T3 | Abracon晶振 | ABM10W | -40°C~85°C | 16.6667MHz | ±10ppm |
| ABM10W-16.6667MHZ-6-D2X-T3 | Abracon晶振 | ABM10W | -40°C~85°C | 16.6667MHz | ±20ppm |
| ABM10W-16.6667MHZ-6-J1Z-T3 | Abracon晶振 | ABM10W | -40°C~105°C | 16.6667MHz | ±10ppm |
| ABM10W-16.6667MHZ-6-J2Z-T3 | Abracon晶振 | ABM10W | -40°C~105°C | 16.6667MHz | ±20ppm |
| ABM10W-16.6667MHZ-6-K1Z-T3 | Abracon晶振 | ABM10W | -40°C~125°C | 16.6667MHz | ±10ppm |
| ABM10W-16.6667MHZ-6-K2Z-T3 | Abracon晶振 | ABM10W | -40°C~125°C | 16.6667MHz | ±20ppm |
| ABM10W-16.6667MHZ-7-D1X-T3 | Abracon晶振 | ABM10W | -40°C~85°C | 16.6667MHz | ±10ppm |
| ABM10W-16.6667MHZ-7-D2X-T3 | Abracon晶振 | ABM10W | -40°C~85°C | 16.6667MHz | ±20ppm |
| ABM10W-16.6667MHZ-7-J1Z-T3 | Abracon晶振 | ABM10W | -40°C~105°C | 16.6667MHz | ±10ppm |
| ABM10W-16.6667MHZ-7-J2Z-T3 | Abracon晶振 | ABM10W | -40°C~105°C | 16.6667MHz | ±20ppm |
| ABM10W-16.6667MHZ-7-K1Z-T3 | Abracon晶振 | ABM10W | -40°C~125°C | 16.6667MHz | ±10ppm |
| ABM10W-16.6667MHZ-7-K2Z-T3 | Abracon晶振 | ABM10W | -40°C~125°C | 16.6667MHz | ±20ppm |
| ABM10W-16.6667MHZ-8-D1X-T3 | Abracon晶振 | ABM10W | -40°C~85°C | 16.6667MHz | ±10ppm |
| ABM10W-16.6667MHZ-8-D2X-T3 | Abracon晶振 | ABM10W | -40°C~85°C | 16.6667MHz | ±20ppm |
| ABM10W-16.6667MHZ-8-J1Z-T3 | Abracon晶振 | ABM10W | -40°C~105°C | 16.6667MHz | ±10ppm |
| ABM10W-16.6667MHZ-8-J2Z-T3 | Abracon晶振 | ABM10W | -40°C~105°C | 16.6667MHz | ±20ppm |
| ABM10W-16.6667MHZ-8-K1Z-T3 | Abracon晶振 | ABM10W | -40°C~125°C | 16.6667MHz | ±10ppm |
| ABM10W-16.6667MHZ-8-K2Z-T3 | Abracon晶振 | ABM10W | -40°C~125°C | 16.6667MHz | ±20ppm |
| ABM10W-16.8000MHZ-4-D1X-T3 | Abracon晶振 | ABM10W | -40°C~85°C | 16.8MHz | ±10ppm |
| ABM10W-16.8000MHZ-4-D2X-T3 | Abracon晶振 | ABM10W | -40°C~85°C | 16.8MHz | ±20ppm |
