贴片晶振ABM11W,ABM11W-24.9231MHZ-7-B2U-T3,7pF,艾博康无源晶振,24.9231MHz
物料编码为ABM11W-24.9231MHZ-7-B2U-T3的贴片晶振ABM11W，该晶振的频率是24.9231MHz，精度为±20ppm，负载电容是7PF，串联电阻为100?，其工作温度在-20°C~70°C，尺寸是2.0mm×1.6mm。该晶振也叫美国进口晶振、2016石英贴片晶振，艾博康石英晶振，艾博康无源晶振、蓝牙晶振、物联网晶振、无线模块晶振。符合RoHS标准。深圳康华尔电子晶振厂家拥有15年晶振研发经验的技术团队，掌握核心技术，拥有自主知识产权的晶振制作方法，是国内主要批量供应晶振生产厂家，拥有 30 多台进口生产设备自动化程度达到 80%以上，引进全自动生产设备，缩短 30%交期，优化工序，制定合理的生产计划，常备库存,保障交付。
贴片晶振ABM11W,ABM11W-24.9231MHZ-7-B2U-T3,7pF,艾博康无源晶振,24.9231MHz
| 编码 | ABM11W-24.9231MHZ-7-B2U-T3 |
| 品牌 | Abracon晶振 |
| 型号 | ABM11W |
| 频率 | 24.9231MHz |
| 频率公差 | ±20ppm |
| 工作温度 | -20°C~70°C |
| 负载电容 | 7pF |

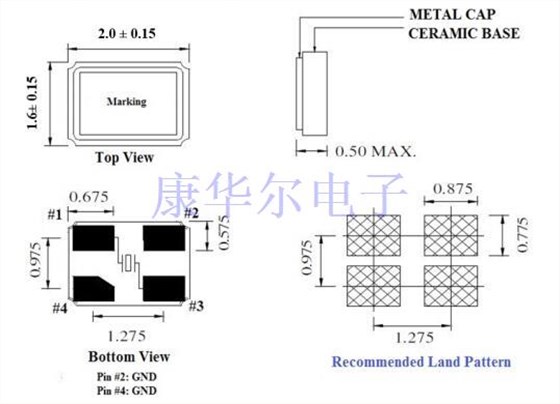

| 尺寸 | 2.0mmx1.6mm |
贴片晶振ABM11W,ABM11W-24.9231MHZ-7-B2U-T3,7pF,艾博康无源晶振,24.9231MHz
更多相关晶振参考
| 编码 | 品牌 | 型号 | 工作温度 | 频率 | 频率公差 |
| ABM11W-24.9231MHZ-7-B2U-T3 | Abracon晶振 | ABM11W | -20°C~70°C | 24.9231MHz | ±20ppm |
| ABM11W-24.9231MHZ-7-D1X-T3 | Abracon晶振 | ABM11W | -40°C~85°C | 24.9231MHz | ±10ppm |
| ABM11W-24.9231MHZ-7-D2X-T3 | Abracon晶振 | ABM11W | -40°C~85°C | 24.9231MHz | ±20ppm |
| ABM11W-24.9231MHZ-7-J1Z-T3 | Abracon晶振 | ABM11W | -40°C~105°C | 24.9231MHz | ±10ppm |
| ABM11W-24.9231MHZ-7-J2Z-T3 | Abracon晶振 | ABM11W | -40°C~105°C | 24.9231MHz | ±20ppm |
| ABM11W-24.9231MHZ-7-K1Z-T3 | Abracon晶振 | ABM11W | -40°C~125°C | 24.9231MHz | ±10ppm |
| ABM11W-24.9231MHZ-7-K2Z-T3 | Abracon晶振 | ABM11W | -40°C~125°C | 24.9231MHz | ±20ppm |
| ABM11W-24.9231MHZ-8-B1U-T3 | Abracon晶振 | ABM11W | -20°C~70°C | 24.9231MHz | ±10ppm |
| ABM11W-24.9231MHZ-8-B2U-T3 | Abracon晶振 | ABM11W | -20°C~70°C | 24.9231MHz | ±20ppm |
| ABM11W-24.9231MHZ-8-D1X-T3 | Abracon晶振 | ABM11W | -40°C~85°C | 24.9231MHz | ±10ppm |
| ABM11W-24.9231MHZ-8-D2X-T3 | Abracon晶振 | ABM11W | -40°C~85°C | 24.9231MHz | ±20ppm |
| ABM11W-24.9231MHZ-8-J1Z-T3 | Abracon晶振 | ABM11W | -40°C~105°C | 24.9231MHz | ±10ppm |
| ABM11W-24.9231MHZ-8-J2Z-T3 | Abracon晶振 | ABM11W | -40°C~105°C | 24.9231MHz | ±20ppm |
| ABM11W-24.9231MHZ-8-K1Z-T3 | Abracon晶振 | ABM11W | -40°C~125°C | 24.9231MHz | ±10ppm |
| ABM11W-24.9231MHZ-8-K2Z-T3 | Abracon晶振 | ABM11W | -40°C~125°C | 24.9231MHz | ±20ppm |
| ABM11W-25.0000MHZ-4-B1U-T3 | Abracon晶振 | ABM11W | -20°C~70°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-4-B2U-T3 | Abracon晶振 | ABM11W | -20°C~70°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-4-D1X-T3 | Abracon晶振 | ABM11W | -40°C~85°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-4-D2X-T3 | Abracon晶振 | ABM11W | -40°C~85°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-4-J1Z-T3 | Abracon晶振 | ABM11W | -40°C~105°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-4-J2Z-T3 | Abracon晶振 | ABM11W | -40°C~105°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-4-K1Z-T3 | Abracon晶振 | ABM11W | -40°C~125°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-4-K2Z-T3 | Abracon晶振 | ABM11W | -40°C~125°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-6-B1U-T3 | Abracon晶振 | ABM11W | -20°C~70°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-6-B2U-T3 | Abracon晶振 | ABM11W | -20°C~70°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-6-D1X-T3 | Abracon晶振 | ABM11W | -40°C~85°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-6-D2X-T3 | Abracon晶振 | ABM11W | -40°C~85°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-6-J1Z-T3 | Abracon晶振 | ABM11W | -40°C~105°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-6-J2Z-T3 | Abracon晶振 | ABM11W | -40°C~105°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-6-K1Z-T3 | Abracon晶振 | ABM11W | -40°C~125°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-6-K2Z-T3 | Abracon晶振 | ABM11W | -40°C~125°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-7-B1U-T3 | Abracon晶振 | ABM11W | -20°C~70°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-7-B2U-T3 | Abracon晶振 | ABM11W | -20°C~70°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-7-D1X-T3 | Abracon晶振 | ABM11W | -40°C~85°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-7-D2X-T3 | Abracon晶振 | ABM11W | -40°C~85°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-7-J1Z-T3 | Abracon晶振 | ABM11W | -40°C~105°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-7-J2Z-T3 | Abracon晶振 | ABM11W | -40°C~105°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-7-K1Z-T3 | Abracon晶振 | ABM11W | -40°C~125°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-7-K2Z-T3 | Abracon晶振 | ABM11W | -40°C~125°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-8-B1U-T3 | Abracon晶振 | ABM11W | -20°C~70°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-8-B2U-T3 | Abracon晶振 | ABM11W | -20°C~70°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-8-D1X-T3 | Abracon晶振 | ABM11W | -40°C~85°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-8-D2X-T3 | Abracon晶振 | ABM11W | -40°C~85°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-8-J1Z-T3 | Abracon晶振 | ABM11W | -40°C~105°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-8-J2Z-T3 | Abracon晶振 | ABM11W | -40°C~105°C | 25MHz | ±20ppm |
| ABM11W-25.0000MHZ-8-K1Z-T3 | Abracon晶振 | ABM11W | -40°C~125°C | 25MHz | ±10ppm |
| ABM11W-25.0000MHZ-8-K2Z-T3 | Abracon晶振 | ABM11W | -40°C~125°C | 25MHz | ±20ppm |
| ABM11W-26.0000MHZ-4-B1U-T3 | Abracon晶振 | ABM11W | -20°C~70°C | 26MHz | ±10ppm |
