CX5032GB16000H0PESZZ,CX5032GB谐振器,京瓷石英晶体,16MHz
日本京瓷公司最初为一家技术陶瓷生产厂商。技术陶瓷是指一系列具备独特物理、化学和电子性能的先进材料。如今，京瓷公司的大多数产品与电信有关，包括无线手机和网络设备、半导体元件、射频和微波产品套装、无源电子元件、水晶振荡器和连接器、使用在光电通讯网络中的光电产品。物料编码为CX5032GB16000H0PESZZ的京瓷石英晶体，CX5032GB谐振器，尺寸为5032mm，也叫5032进口晶振，该晶振的频率是16MHz，工作温度为-10℃~70℃，精度是±50ppm，其负载电容是12pF。该晶振也叫两脚SMD晶振，石英晶体，京瓷无源晶振，5032谐振器，KYOCERA无源晶振。
CX5032GB16000H0PESZZ,CX5032GB谐振器,京瓷石英晶体,16MHz
| 编码 | CX5032GB16000H0PESZZ |
| 品牌 | 京瓷晶振 |
| 型号 | CX5032GB |
| 频率 | 16MHz |
| 频率公差 | ±50ppm |
| 工作温度 | -10°C~70°C |
| 负载电容 | 12pF |

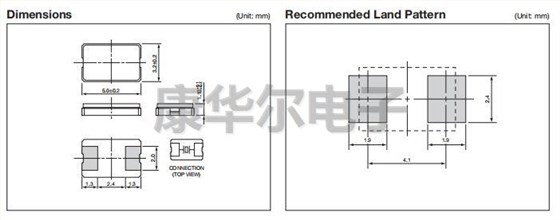

| 尺寸 | 5.00mmx3.20mm |
CX5032GB16000H0PESZZ,CX5032GB谐振器,京瓷石英晶体,16MHz
更多相关晶振 参考
| 编码 | 品牌 | 型号 | 频率 | 频率公差 | 负载电容 |
| CT2520DB19200C0FLHAF | 京瓷晶振 | CT2520DB | 19.2MHz | ±10ppm | 7pF |
| CX5032GB16000H0PESZZ | 京瓷晶振 | CX5032GB | 16MHz | ±50ppm | 12pF |
| CT1612DB38400C0FLHA1 | 京瓷晶振 | CT1612DB | 38.4MHz | ±10ppm | 7pF |
| CT1612DB38400D0FLHA2 | 京瓷晶振 | CT1612DB | 38.4MHz | ±10ppm | 8pF |
| CT1612RB38400D0FLHA2 | 京瓷晶振 | CT1612RB | 38.4MHz | ±10ppm | 8pF |
| CT2016DB19200C0FLHA1 | 京瓷晶振 | CT2016DB | 19.2MHz | ±10ppm | 7pF |
| CX49GFNB03579H0PESZZ | 京瓷晶振 | CX49GFNB | 3.579545MHz | ±50ppm | 12pF |
| CX49GFNB04000H0PESZZ | 京瓷晶振 | CX49GFNB | 4MHz | ±50ppm | 12pF |
| CX49GFNB04194H0PESZZ | 京瓷晶振 | CX49GFNB | 4.194304MHz | ±50ppm | 12pF |
| CX49GFNB04332H0PESZZ | 京瓷晶振 | CX49GFNB | 4.332MHz | ±50ppm | 12pF |
| CX49GFNB04433H0PESZZ | 京瓷晶振 | CX49GFNB | 4.433619MHz | ±50ppm | 12pF |
| CX49GFNB04915H0PESZZ | 京瓷晶振 | CX49GFNB | 4.9152MHz | ±50ppm | 12pF |
| CX49GFNB06000H0PESZZ | 京瓷晶振 | CX49GFNB | 6MHz | ±50ppm | 12pF |
| CX49GFNB07200H0PESZZ | 京瓷晶振 | CX49GFNB | 7.2MHz | ±50ppm | 12pF |
| CX49GFNB08000H0PESZZ | 京瓷晶振 | CX49GFNB | 8MHz | ±50ppm | 12pF |
| CX49GFNB10000H0PESZZ | 京瓷晶振 | CX49GFNB | 10MHz | ±50ppm | 12pF |
| CX49GFNB12000H0PESZZ | 京瓷晶振 | CX49GFNB | 12MHz | ±50ppm | 12pF |
| CX49GFNB14318H0PESZZ | 京瓷晶振 | CX49GFNB | 14.31818MHz | ±50ppm | 12pF |
| CX49GFNB16000H0PESZZ | 京瓷晶振 | CX49GFNB | 16MHz | ±50ppm | 12pF |
| CX49GFNB16934H0PESZZ | 京瓷晶振 | CX49GFNB | 16.934MHz | ±50ppm | 12pF |
| CX49GFNB18432H0PESZZ | 京瓷晶振 | CX49GFNB | 18.432MHz | ±50ppm | 12pF |
| CX49GFNB20000H0PESZZ | 京瓷晶振 | CX49GFNB | 20MHz | ±50ppm | 12pF |
| CX49GFNB24000H0PESZZ | 京瓷晶振 | CX49GFNB | 24MHz | ±50ppm | 12pF |
| CX49GFNB24.576H0PESZZ | 京瓷晶振 | CX49GFNB | 24.576MHz | ±50ppm | 12pF |
| CX49GFNB27000H0PESZZ | 京瓷晶振 | CX49GFNB | 27MHz | ±50ppm | 12pF |
| CX5032GB10000H0PESZZ | 京瓷晶振 | CX5032GB | 10MHz | ±50ppm | 12pF |
| CX5032GB12000H0PESZZ | 京瓷晶振 | CX5032GB | 12MHz | ±50ppm | 12pF |
| CX5032GB14318H0PESZZ | 京瓷晶振 | CX5032GB | 14.31818MHz | ±50ppm | 12pF |
| CX5032GB14745H0PESZZ | 京瓷晶振 | CX5032GB | 14.7456MHz | ±50ppm | 12pF |
| CX5032GB20000H0PESZZ | 京瓷晶振 | CX5032GB | 20MHz | ±50ppm | 12pF |
| CX5032GB24576H0PESZZ | 京瓷晶振 | CX5032GB | 24.576MHz | ±50ppm | 12pF |
| CX5032GB27000H0PESZZ | 京瓷晶振 | CX5032GB | 27MHz | ±50ppm | 12pF |
| ST4115SB32768H5HPWZZ | 京瓷晶振 | ST4115SB | 32.768kHz | ±20ppm | 12.5pF |
