HE-MCC-53系列,HEC四脚贴片晶振,HE-MCC-53E-48.00-16,5032mm,48MHZ特点:
5.0x3.2mm石英晶振封装
符合RoHS标准且无铅
低成本低功耗

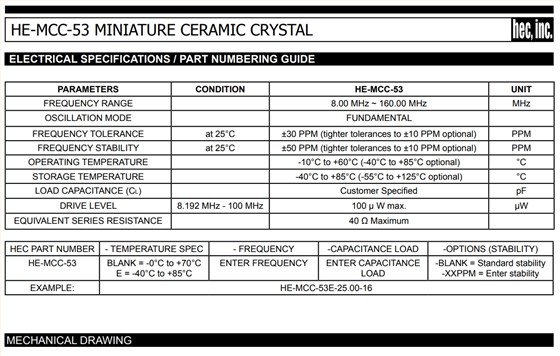

HE-MCC-53系列,HEC四脚贴片晶振,HE-MCC-53E-48.00-16,5032mm,48MHZ 参数表
| PARAMETERS | CONDITION | HE-MCC-53 | UNIT | |||||
| FREQUENCY RANGE | 48.00 MHz | MHz | ||||||
| OSCILLATION MODE | FUNDAMENTAL | |||||||
| FREQUENCY TOLERANCE | at 25°C | ±30 PPM (tighter tolerances to ±10 PPM optional) | PPM | |||||
| FREQUENCY STABILITY | at 25°C | ±50 PPM (tighter tolerances to ±10 PPM optional) | PPM | |||||
| OPERATING TEMPERATURE | -10°C to +60°C (-40°C to +85°C optional) | °C | ||||||
| STORAGE TEMPERATURE | -40°C to +85°C (-55°C to +125°C optional) | °C | ||||||
| LOAD CAPACITANCE (CL) | Customer Specified | pF | ||||||
| DRIVE LEVEL | 8.192 MHz - 100 MHz | 100 µ W max. | µW | |||||
| EQUIVALENT SERIES RESISTANCE | 40 Ω Maximum | |||||||

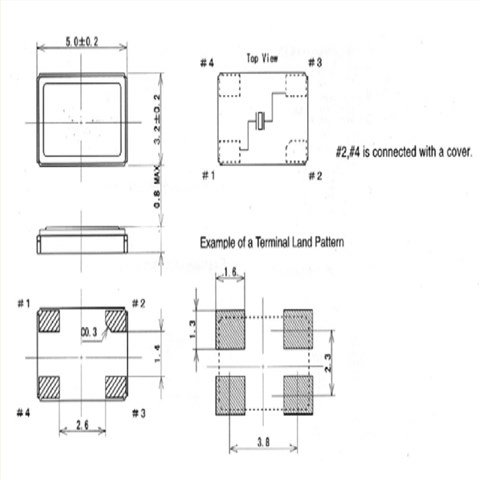

HE-MCC-53系列,HEC四脚贴片晶振,HE-MCC-53E-48.00-16,5032mm,48MHZ 尺寸图
