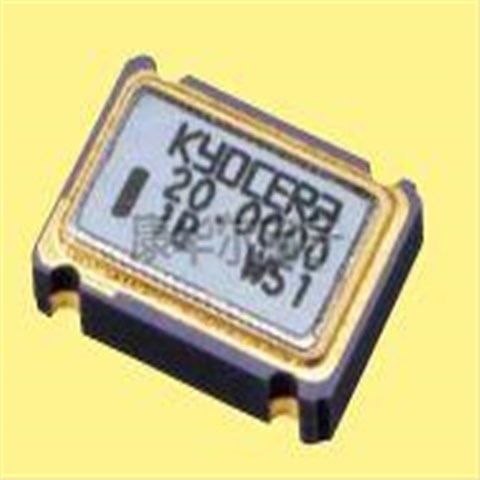

日本株式会社京瓷从1959年创业以来，一直将“追求全体员工物质与精神两方面幸福的同时，为人类和社会的进步与发展做出贡献”作为经营理念，脚踏实地，持续开展各项业务。日本株式会社京瓷晶振中物料编码为K50-HC0CSE49.1520MR的Kyocera Crystal，为K50-HC有源晶振，尺寸为7050mm，也叫7050振荡器，该晶振的频率是49.152MHz，工作温度为-10℃~70℃，精度是±50ppm，其电压是5V，电流是50mA。该晶振也叫四脚SMD晶振，石英晶体振荡器，京瓷有源晶振。
K50-HC0CSE49.1520MR,K50-HC有源晶振,7050振荡器,Kyocera Crystal
| 编码 | K50-HC0CSE49.1520MR |
| 品牌 | Kyocera Crystal |
| 型号 | K50-HC |
| 频率 | 49.152MHz |
| 输出方式 | CMOS |
| 电压 | 5V |
| 频率公差 | ±50ppm |
| 工作温度 | -10°C~70°C |
| 电流 | 50mA |
| 尺寸 | 7.00mmx5.00mm |
K50-HC0CSE49.1520MR,K50-HC有源晶振,7050振荡器,Kyocera Crystal
更多相关晶振参考
| 编码 | 品牌 | 型号 | 频率 | 输出 | 电压 |
| K50-3C0SE40.0000MR | Kyocera Crystal | K50-3C | 40MHz | CMOS | 3.3V |
| K50-HC0CSE49.1520MR | Kyocera Crystal | K50-HC | 49.152MHz | CMOS | 5V |
| K50-3C0SE16.0000MR | Kyocera Crystal | K50-3C | 16MHz | CMOS | 3.3V |
| K50-HC0CSE20.0000MR | Kyocera Crystal | K50-HC | 20MHz | CMOS | 5V |
| K50-HC0CSE27.0000MR | Kyocera Crystal | K50-HC | 27MHz | CMOS | 5V |
| K50-HC1CSE24.576 | Kyocera Crystal | K50-HC | 24.576MHz | CMOS | 5V |
| K50-HC1CSE25.000 | Kyocera Crystal | K50-HC | 25MHz | CMOS | 5V |
| K50-HC1CSE26.562 | Kyocera Crystal | K50-HC | 26.562MHz | CMOS | 5V |
| K50-HC1CSE27.000 | Kyocera Crystal | K50-HC | 27MHz | CMOS | 5V |
| K50-HC1CSE28.322 | Kyocera Crystal | K50-HC | 28.322MHz | CMOS | 5V |
| K50-HC1CSE29.000 | Kyocera Crystal | K50-HC | 29MHz | CMOS | 5V |
| K50-HC1CSE3.6864 | Kyocera Crystal | K50-HC | 3.6864MHz | CMOS | 5V |
| K50-HC1CSE30.000 | Kyocera Crystal | K50-HC | 30MHz | CMOS | 5V |
| K50-HC1CSE32.000 | Kyocera Crystal | K50-HC | 32MHz | CMOS | 5V |
| K50-HC1CSE32.768 | Kyocera Crystal | K50-HC | 32.768MHz | CMOS | 5V |
| K50-HC1CSE33.000 | Kyocera Crystal | K50-HC | 33MHz | CMOS | 5V |
| K50-HC1CSE33.333 | Kyocera Crystal | K50-HC | 33.333MHz | CMOS | 5V |
| K50-HC1CSE33.868 | Kyocera Crystal | K50-HC | 33.868MHz | CMOS | 5V |
| K50-HC1CSE40.000 | Kyocera Crystal | K50-HC | 40MHz | CMOS | 5V |
| K50-HC1CSE48.000 | Kyocera Crystal | K50-HC | 48MHz | CMOS | 5V |
| K50-HC1CSE49.152 | Kyocera Crystal | K50-HC | 49.152MHz | CMOS | 5V |
| K50-HC1CSE50.000 | Kyocera Crystal | K50-HC | 50MHz | CMOS | 5V |
| K50-HC1CSE51.666 | Kyocera Crystal | K50-HC | 51.666MHz | CMOS | 5V |
| K50-HC1CSE53.125 | Kyocera Crystal | K50-HC | 53.125MHz | CMOS | 5V |
| K50-HC1CSE59.600 | Kyocera Crystal | K50-HC | 59.6MHz | CMOS | 5V |
| K50-HC1CSE60.000 | Kyocera Crystal | K50-HC | 60MHz | CMOS | 5V |
| K50-HC1CSE64.000 | Kyocera Crystal | K50-HC | 64MHz | CMOS | 5V |
| K50-HC1CSE66.000 | Kyocera Crystal | K50-HC | 66MHz | CMOS | 5V |
| K50-HC1CSE66.666 | Kyocera Crystal | K50-HC | 66.666MHz | CMOS | 5V |
| K50-HC1CSE8.0000 | Kyocera Crystal | K50-HC | 8MHz | CMOS | 5V |
| K50-HC1CSE9.8304 | Kyocera Crystal | K50-HC | 9.8304MHz | CMOS | 5V |
| K50-3C0SE53.1250 | Kyocera Crystal | K50-3C | 53.125MHz | CMOS | 3.3V |
| K50-3C0SE66.0000 | Kyocera Crystal | K50-3C | 66MHz | CMOS | 3.3V |
| K50-3C1E10.0000M | Kyocera Crystal | K50-3C | 10MHz | CMOS | 3.3V |
| K50-3C1E12.5000M | Kyocera Crystal | K50-3C | 12.5MHz | CMOS | 3.3V |
| K50-3C1E13.5600M | Kyocera Crystal | K50-3C | 13.56MHz | CMOS | 3.3V |
| K50-3C1E14.31818 | Kyocera Crystal | K50-3C | 14.31818MHz | CMOS | 3.3V |
| K50-3C1E14.7456M | Kyocera Crystal | K50-3C | 14.7456MHz | CMOS | 3.3V |
| K50-3C1E16.4000M | Kyocera Crystal | K50-3C | 16.4MHz | CMOS | 3.3V |
| K50-3C1E20.0000M | Kyocera Crystal | K50-3C | 20MHz | CMOS | 3.3V |
| K50-3C1E20.8000M | Kyocera Crystal | K50-3C | 20.8MHz | CMOS | 3.3V |
| K50-3C1E22.4000M | Kyocera Crystal | K50-3C | 22.4MHz | CMOS | 3.3V |
| K50-3C1E22.8000M | Kyocera Crystal | K50-3C | 22.8MHz | CMOS | 3.3V |
| K50-3C1E24.0000M | Kyocera Crystal | K50-3C | 24MHz | CMOS | 3.3V |
| K50-3C1E25.0000M | Kyocera Crystal | K50-3C | 25MHz | CMOS | 3.3V |
| K50-3C1E27.0000M | Kyocera Crystal | K50-3C | 27MHz | CMOS | 3.3V |
| K50-3C1E27.5000M | Kyocera Crystal | K50-3C | 27.5MHz | CMOS | 3.3V |
| K50-3C1E29.4989M | Kyocera Crystal | K50-3C | 29.4989MHz | CMOS | 3.3V |
| K50-3C1E32.0000M | Kyocera Crystal | K50-3C | 32MHz | CMOS | 3.3V |
| K50-3C1E33.0000M | Kyocera Crystal | K50-3C | 33MHz | CMOS | 3.3V |
| K50-3C1E33.3333M | Kyocera Crystal | K50-3C | 33.3333MHz | CMOS | 3.3V |
| K50-3C1E33.8688M | Kyocera Crystal | K50-3C | 33.8688MHz | CMOS | 3.3V |
| K50-3C1E37.0560M | Kyocera Crystal | K50-3C | 37.056MHz | CMOS | 3.3V |
| K50-3C1E40.0000M | Kyocera Crystal | K50-3C | 40MHz | CMOS | 3.3V |
| K50-3C1E43.6800M | Kyocera Crystal | K50-3C | 43.68MHz | CMOS | 3.3V |
| K50-3C1E44.0000M | Kyocera Crystal | K50-3C | 44MHz | CMOS | 3.3V |
| K50-3C1E45.0000M | Kyocera Crystal | K50-3C | 45MHz | CMOS | 3.3V |
| K50-3C1E48.0000M | Kyocera Crystal | K50-3C | 48MHz | CMOS | 3.3V |
| K50-3C1E50.0000M | Kyocera Crystal | K50-3C | 50MHz | CMOS | 3.3V |
| K50-3C1E53.1250M | Kyocera Crystal | K50-3C | 53.125MHz | CMOS | 3.3V |
| K50-3C1E55.0000M | Kyocera Crystal | K50-3C | 55MHz | CMOS | 3.3V |
| K50-3C1E60.0000M | Kyocera Crystal | K50-3C | 60MHz | CMOS | 3.3V |
| K50-3C1E62.5000M | Kyocera Crystal | K50-3C | 62.5MHz | CMOS | 3.3V |
| K50-3C1E64.0000M | Kyocera Crystal | K50-3C | 64MHz | CMOS | 3.3V |
