NX2012SA-32.768kHz-EXS00A-MU00644,2012音叉晶振,NDK晶振
NX2012SA-32.768kHz-EXS00A-MU00644是NDK原厂2012音叉晶振,专为低功耗设备设计,等效串联电阻控制优异,驱动功耗低,有效延长电池类产品续航时间.贴片小型化封装,节省PCB布板空间,抗温变性能出色,?40℃~+85℃宽温区间稳定起振,广泛用于智能手环,蓝牙耳机,低功耗传感器,物联网节点NDK.康华尔电子作为NDK正规代理,提供原装现货与技术支持,可提供样品测试,咨询热线:0755?27838351.
NX2012SA-32.768kHz-EXS00A-MU00644,2012音叉晶振,NDK晶振
| 编码 | NX2012SA-32.768kHz-EXS00A-MU00644 |
| 品牌 | NDK |
| 型号 | NX2012SA晶振 |
| 频率 | 32.768K |
| 负载 | 12.5PF |
| 精度 | ±20PPm |
| 产地 | 日产进口晶振 |
| 工作温度 | -40°C ~ 85°C |
| 电流 | - |

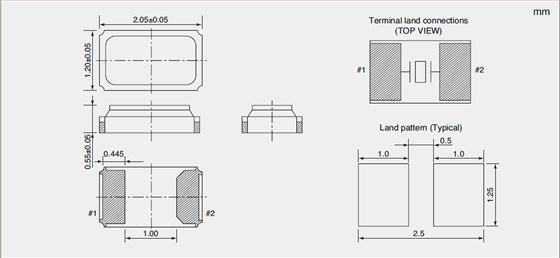

| 尺寸 | 2012mm |
NX2012SA-32.768kHz-EXS00A-MU00644,2012音叉晶振,NDK晶振
更多相关晶振参考
NX2012SA
32.768
STD-MUB-1
NX2012SA-32.768KHZ-STD-MUB-1
2.0×1.2
NX2012SA
32.768
STD-MUB-2
NX2012SA-32.768KHZ-STD-MUB-2
2.0×1.2
NX2012SA
32.768
STD-MUB-3
NX2012SA-32.768KHZ-STD-MUB-3
2.0×1.2
NX2012SA
32.768
STD-MUT-1
NX2012SA-32.768KHZ-STD-MUT-1
2.0×1.2
NX2012SA
32.768
STD-MUT-2
NX2012SA-32.768KHZ-STD-MUT-2
2.0×1.2
NX2012SA
32.768
STD-MUT-3
NX2012SA-32.768KHZ-STD-MUT-3
2.0×1.2
