NX5032GA-25.000000MHZ-LN-CD-1 25MHZ 50ppm OA/AV应用

NX5032GA-25.000000MHZ-LN-CD-1 25MHZ 50ppm OA/AV应用，型号NX5032GA，尺寸5032mm,频率25MHZ，频率稳定度50ppm，日本进口晶振，5032mm晶振,NDK晶振,无源晶振,贴片晶振,陶瓷晶振，两脚贴片晶振，无线设备晶振，蓝牙音响晶振，测试仪器晶振，NX5032GA-12.000000MHZ-LN-CD-1晶振，NX5032GA-32.000000MHZ-LN-CD-1晶振。NX5032GA-25.000000MHZ-LN-CD-1 25MHZ 50ppm OA/AV应用

产品被广泛用于汽车电子设备，也是理想的OA/AV应用的最佳之选，还可以广泛应用测试仪器，无线设备，电子产品等领域.NX5032GA-25.000000MHZ-LN-CD-1 25MHZ 50ppm OA/AV应用参数表

Item	Model	NX5032GA
Standard		Standard					Optional
Nominal Frequency (MHz)		8 ≤ F < 10.499	10.5≤F≤ 49.999	8 ≤ F ≤ 10.499	10.5≤F≤ 49.999	50 ≤ F ≤ 55	8 ≤ F ≤ 55
Overtone Order		Fundamental					Fundamental
Frequency Tolerance (25 ±3 °C)		±30 × 10−6		±20 × 10−6			±20 × 10−6
Frequency versus Temperature Characteristics (with reference to +25 °C)		±50 × 10−6		±30 × 10−6			±50 × 10−6
Operating Temperature Range (°C)		−40 to +85		−10 to +70			−40 to +85 *3
Storage Temperature Range (°C)		−40 to +125		−40 to +85			−40 to +125
Equivalent Series Resistance		Refer to *1		Refer to *2			Refer to 12
Level of Drive (μW)		50 (Max. 500)					50 (Max. 500)
Load Capacitance (pF)		8					6 to 32
Frequency Aging (+25 °C)		---	---	---	---	---	Max. ±10 × 10−6/ year *3
Specifications Number		STD-CSK-7	STD-CSK-8	STD-CSK-3	STD-CSK-4	STD-CKW-3	Refer to *4

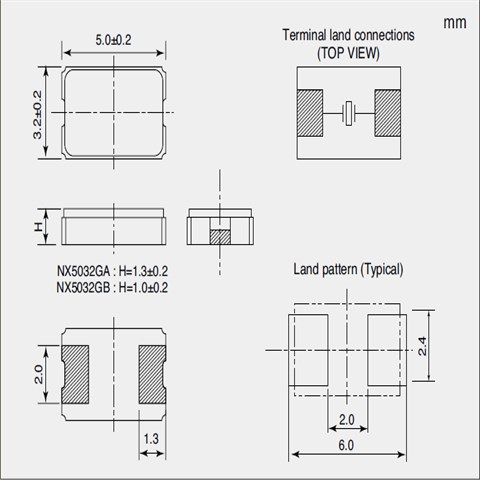

NX5032GA-25.000000MHZ-LN-CD-1 25MHZ 50ppm OA/AV应用 尺寸图

*1 Equivalent Series Resistance
Nominal Frequency (MHz)		Equivalent Series Resistance Max. (Ω)
8 ≤ F < 9.5		300
9.5 ≤ F < 10		150
10 ≤ F < 20		120
20 ≤ F < 30		70
30 ≤ F ≤ 49.99		50
If you have any other requests,NDK will study it.
*2 Equivalent Series Resistance
Nominal Frequency (MHz)		Equivalent Series Resistance Max. (Ω)
8 ≤ F < 9.5		300
9.5 ≤ F < 15		100
15 ≤ F ≤ 55		50
If you have any other requests,NDK will study it.

NX5032GA-25.000000MHZ-LN-CD-1晶振特点

紧凑而薄。(5.0×3.2×1.3毫米typ)。
●支持从8mhz开始的低频。
●优异的环境特性，包括耐热性和抗震性。
●满足使用无铅焊料的回流剖面要求。

更多的NDK晶振相关型号

原厂编码	厂家	型号	Frequency	频率稳定度
NX5032GA-24.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	24MHz	±50ppm
NX5032GA-25.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	25MHz	±50ppm
NX5032GA-27.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	27MHz	±50ppm
NX5032GA-16.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	16MHz	±50ppm
NX5032GA-10.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	10MHz	±50ppm
NX5032GA-12.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	12MHz	±50ppm
NX5032GA-48.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	48MHz	±50ppm
NX5032GA-16.384000MHZ-LN-CD-1	NDK晶振	NX5032GA	16.384MHz	±50ppm
NX5032GA-20.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	20MHz	±50ppm
NX5032GA-32.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	32MHz	±50ppm
NX5032GA-27M-STD-CSK-4	NDK晶振	NX5032GA	27MHz	±30ppm
NX5032GA-12.288M-STD-CSK-4	NDK晶振	NX5032GA	12.288MHz	±30ppm
NX5032GA-14.31818M-STD-CSK-4	NDK晶振	NX5032GA	14.31818MHz	±30ppm
NX5032GA-25.000M-STD-CSK-4	NDK晶振	NX5032GA	25MHz	±30ppm
NX5032GA-12MHZ-STD-CSK-4	NDK晶振	NX5032GA	12MHz	±30ppm
NX5032GA-10.000M-STD-CSU-1	NDK晶振	NX5032GA	10MHz	±150ppm
NX5032GA-20.000M-STD-CSU-2	NDK晶振	NX5032GA	20MHz	±150ppm
NX5032GA-12.000M-STD-CSU-2	NDK晶振	NX5032GA	12MHz	±150ppm
NX5032GA-20.000M-STD-CSK-4	NDK晶振	NX5032GA	20MHz	±30ppm
NX5032GA-13.56M-STD-CSK-4	NDK晶振	NX5032GA	13.56MHz	±30ppm
NX5032GA-12.288000MHZ-LN-CD-1	NDK晶振	NX5032GA	12.288MHz	±50ppm
NX5032GA-16MHZ-STD-CSK-8	NDK晶振	NX5032GA	16MHz	±50ppm
NX5032GA-16MHZ-STD-CSK-4	NDK晶振	NX5032GA	16MHz	±30ppm
NX5032GA- 9.84375M-STD-CSU-1	日本NDK晶振	NX5032GA	9.84375MHz	±150ppm
NX5032GA-10.000M-STD-CSK-3	NDK晶振	NX5032GA	10MHz	±30ppm
NX5032GA-30.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	30MHz	±50ppm
NX5032GA-40.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	40MHz	±50ppm
NX5032GA-12MHZ-STD-CSK-8	NDK晶振	NX5032GA	12MHz	±50ppm
NX5032GA-16.000M-STD-CSU-2	NDK晶振	NX5032GA	16MHz	±150ppm
NX5032GA-8.000M-STD-CSU-1	NDK晶振	NX5032GA	8MHz	±150ppm
NX5032GA-13.560000MHZ-LN-CD-1	NDK晶振	NX5032GA	13.56MHz	±50ppm
NX5032GA-11.0592M-STD-CSK-4	NDK晶振	NX5032GA	11.0592MHz	±30ppm
NX5032GA-30.000M-STD-CSK-4	NDK晶振	NX5032GA	30MHz	±30ppm
NX5032GA-24.000M-STD-CSK-4	NDK晶振	NX5032GA	24MHz	±30ppm
NX5032GA-40.000M-STD-CSU-2	NDK晶振	NX5032GA	40MHz	±150ppm
NX5032GA -13.56M-STD-CSU-2	NDK晶振	NX5032GA	13.56MHz	±150ppm
