NDK小封装有源晶振,NZ2016SHB汽车音频晶振,NZ2016SHB-0.032768MHZ-NSC5132A

NDK小封装有源晶振,NZ2016SHB汽车音频晶振,NZ2016SHB-0.032768MHZ-NSC5132ANDK小封装有源晶振,NZ2016SHB汽车音频晶振,NZ2016SHB-0.032768MHZ-NSC5132A

产品简介

NDK小封装有源晶振,NZ2016SHB汽车音频晶振,NZ2016SHB-0.032768MHZ-NSC5132A，尺寸2.0x1.6mm，频率32.768KHZ，输出逻辑CMOS，CMOS输出晶振，日本NDK振荡器，进口有源晶振，2016mm有源振荡器，时钟晶体振荡器，石英晶体振荡器，贴片有源晶振，有源晶体振荡器，SPXO振荡器，OSC贴片振荡器，汽车导航系统晶振，汽车音频有源晶振，汽车导航专用晶振，相机设备有源晶振，低抖动有源晶振，低电压有源晶振，低功耗有源晶振，低耗能有源晶振，低损耗有源晶振，高性能有源晶振，高精度有源晶振，具有良好的可靠性能。

有源晶振产品广泛用于汽车导航系统，汽车音频设备和汽车导航，汽车音频，相机等应用领域，还可以广泛用于仪器设备，测试设备等.NDK小封装有源晶振,NZ2016SHB汽车音频晶振,NZ2016SHB-0.032768MHZ-NSC5132A.



产品详情

1

NDK小封装有源晶振,NZ2016SHB汽车音频晶振,NZ2016SHB-0.032768MHZ-NSC5132A，尺寸2.0x1.6mm，频率32.768KHZ，输出逻辑CMOS，CMOS输出晶振，日本NDK振荡器，进口有源晶振，2016mm有源振荡器，时钟晶体振荡器，石英晶体振荡器，贴片有源晶振，有源晶体振荡器，SPXO振荡器，OSC贴片振荡器，汽车导航系统晶振，汽车音频有源晶振，汽车导航专用晶振，相机设备有源晶振，低抖动有源晶振，低电压有源晶振，低功耗有源晶振，低耗能有源晶振，低损耗有源晶振，高性能有源晶振，高精度有源晶振，具有良好的可靠性能。

有源晶振产品广泛用于汽车导航系统，汽车音频设备和汽车导航，汽车音频，相机等应用领域，还可以广泛用于仪器设备，测试设备等.NDK小封装有源晶振,NZ2016SHB汽车音频晶振,NZ2016SHB-0.032768MHZ-NSC5132A.2

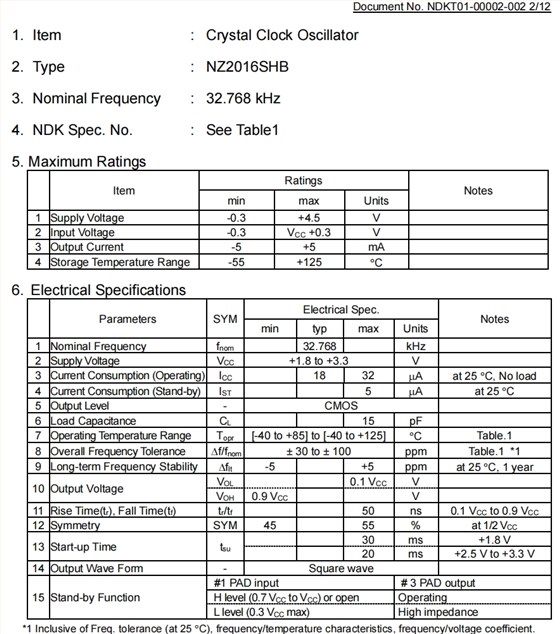

NDK小封装有源晶振,NZ2016SHB汽车音频晶振,NZ2016SHB-0.032768MHZ-NSC5132A 参数表

Item Ratings Notes
min max Units
Supply Voltage -0.3 +4.5 V
Input Voltage -0.3 VCC+0.3 V
Output Current -5 +5 mA
Storage Temperature Range -55 +125 。C
Parameters SYM Electrical Spec. Notes
min typ max Units
Nominal Frequency fnom 32.768 kHz
Supply Voltage VCC +1.8 to +3.3 V
Current Consumption (Operating) ICC 18 32 μA at 25。C, No load
Current Consumption (Stand-by) IST 5 μA at 25。C
Output Level - CMOS
Load Capacitance CL 15 pF
Operating Temperature Range Topr [-40 to +85] to [-40 to +125] 。C Table.1
Overall Frequency Tolerance Δf/fnom ± 30 to ± 100 ppm Table.1* 1
Long-term Frequency Stability Δflt -5 +5 ppm at 25。C, 1 year
Output Voltage VOL 0.1 VCC V
VOH 0.9 VCC V
Rise Time(tr), Fall Time(tf) tr/tf 50 ns 0.1 VCCto 0.9 VCC
Symmetry SYM 45 55 % at 1/2 VCC
Start-up Time tsu 30 ms +1.8 V
20 ms +2.5 V to +3.3 V
Output Wave Form - Square wave
Stand-by Function #1 PAD input # 3 PAD output
H level (0.7 VCCto VCC) or open Operating
L level (0.3 VCCmax) High impedance

3

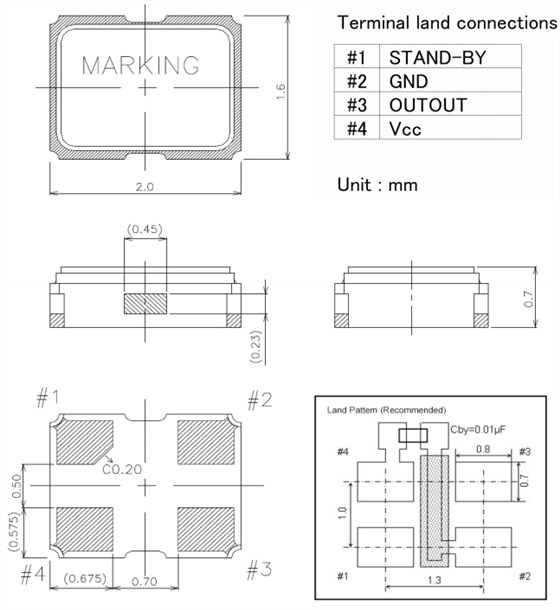

NDK小封装有源晶振,NZ2016SHB汽车音频晶振,NZ2016SHB-0.032768MHZ-NSC5132A 尺寸图

NZ2016SHB

NDK小封装有源晶振,NZ2016SHB汽车音频晶振,NZ2016SHB-0.032768MHZ-NSC5132A

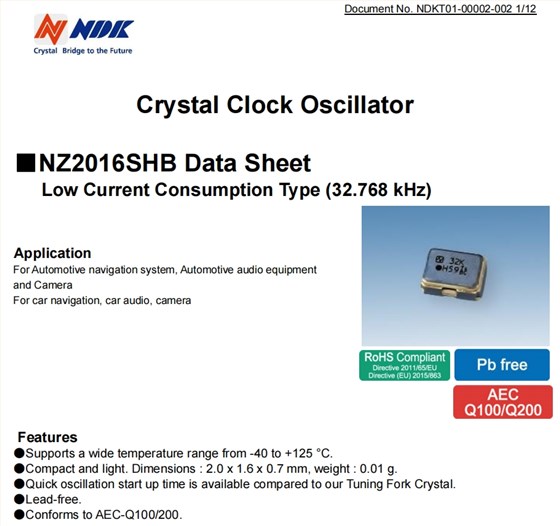

2016晶振产品特点：

支持-40至+125°C的宽温度范围。

小巧轻便。尺寸：2.0 x 1.6 x 0.7毫米，重量：0.01克。

与我们的音叉水晶相比，可提供快速振荡启动时间。

无铅。

符合AEC-Q100/200。

NZ2016SHB 1

NZ2016SHB 2

Model Nominal frequency[MHz] Specification number 晶振厂家 Package size(LxW)[mm] Output specification Operating temperature rang[℃]
NP3225SBA 100MHZ NSC5391B NDK晶振 3.2x2.5 LVDS -40~+105
NP3225SBA 125MHZ NSC5391B NDK晶振 3.2x2.5 LVDS -40~+105
NP3225SBA 156.25MHZ NSC5391B NDK晶振 3.2x2.5 LVDS -40~+105
NP3225SCA 100MHZ NSC5392B NDK晶振 3.2x2.5 HCSL -40~+105
NP3225SCA 125MHZ NSC5392B NDK晶振 3.2x2.5 HCSL -40~+105
NP3225SCA 156.25MHZ NSC5392B NDK晶振 3.2x2.5 HCSL -40~+105
NZ1612SHB 0.032768MHZ NSC5154A NDK晶振 1.6x1.2 CMOS -40~+125
NZ1612SHB 0.032768MHZ NSC5154B NDK晶振 1.6x1.2 CMOS -40~+125
NZ1612SHB 0.032768MHZ NSC5154C NDK晶振 1.6x1.2 CMOS -40~+125
NZ1612SHB 0.032768MHZ NSC5154D NDK晶振 1.6x1.2 CMOS -40~+125
NZ1612SHB 0.032768MHZ NSC5153A NDK晶振 1.6x1.2 CMOS -40~+105
NZ1612SHB 0.032768MHZ NSC5153B NDK晶振 1.6x1.2 CMOS -40~+105
NZ1612SHB 0.032768MHZ NSC5153C NDK晶振 1.6x1.2 CMOS -40~+105
NZ1612SHB 0.032768MHZ NSC5153D NDK晶振 1.6x1.2 CMOS -40~+105
NZ1612SHB 0.032768MHZ NSC5102A NDK晶振 1.6x1.2 CMOS -40~+85
NZ1612SHB 0.032768MHZ NSC5102B NDK晶振 1.6x1.2 CMOS -40~+85
NZ1612SHB 0.032768MHZ NSC5102C NDK晶振 1.6x1.2 CMOS -40~+85
NZ1612SHB 0.032768MHZ NSC5102D NDK晶振 1.6x1.2 CMOS -40~+85
NZ2016SHB 0.032768MHZ NSC5132A NDK晶振 2.0x1.6 CMOS -40~+125
NZ2016SHB 0.032768MHZ NSC5132B NDK晶振 2.0x1.6 CMOS -40~+125
NZ2016SHB 0.032768MHZ NSC5132C NDK晶振 2.0x1.6 CMOS -40~+125
NZ2016SHB 0.032768MHZ NSC5132D NDK晶振 2.0x1.6 CMOS -40~+125
NZ2016SHB 0.032768MHZ NSC5133A NDK晶振 2.0x1.6 CMOS -40~+105
NZ2016SHB 0.032768MHZ NSC5133B NDK晶振 2.0x1.6 CMOS -40~+105
NZ2016SHB 0.032768MHZ NSC5133C NDK晶振 2.0x1.6 CMOS -40~+105
NZ2016SHB 0.032768MHZ NSC5133D NDK晶振 2.0x1.6 CMOS -40~+105
NZ2016SHB 0.032768MHZ NSC5134A NDK晶振 2.0x1.6 CMOS -40~+85
NZ2016SHB 0.032768MHZ NSC5134B NDK晶振 2.0x1.6 CMOS -40~+85
NZ2016SHB 0.032768MHZ NSC5134C NDK晶振 2.0x1.6 CMOS -40~+85
NZ2016SHB 0.032768MHZ NSC5134D NDK晶振 2.0x1.6 CMOS -40~+85
NZ2520SHB 0.032768MHZ NSC5135A NDK晶振 2.5x2.0 CMOS -40~+125
NZ2520SHB 0.032768MHZ NSC5135B NDK晶振 2.5x2.0 CMOS -40~+125
NZ2520SHB 0.032768MHZ NSC5135C NDK晶振 2.5x2.0 CMOS -40~+125
NZ2520SHB 0.032768MHZ NSC5135D NDK晶振 2.5x2.0 CMOS -40~+125
NZ2520SHB 0.032768MHZ NSC5136A NDK晶振 2.5x2.0 CMOS -40~+105
NZ2520SHB 0.032768MHZ NSC5136B NDK晶振 2.5x2.0 CMOS -40~+105
NZ2520SHB 0.032768MHZ NSC5136C NDK晶振 2.5x2.0 CMOS -40~+105
NZ2520SHB 0.032768MHZ NSC5136D NDK晶振 2.5x2.0 CMOS -40~+105
NZ2520SHB 0.032768MHZ NSC5137A NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SHB 0.032768MHZ NSC5137B NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SHB 0.032768MHZ NSC5137C NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SHB 0.032768MHZ NSC5137D NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SHB 0.032768MHZ NSC5308A NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SHB 0.032768MHZ NSC5308B NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SHB 0.032768MHZ NSC5308C NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SHB 0.032768MHZ NSC5308D NDK晶振 2.5x2.0 CMOS -40~+85
NZ2016SHA 0.032768MHZ NSC5297A NDK晶振 2.0x1.6 CMOS -40~+125
NZ2016SHA 0.032768MHZ NSC5297B NDK晶振 2.0x1.6 CMOS -40~+125
NZ2016SHA 0.032768MHZ NSC5297C NDK晶振 2.0x1.6 CMOS -40~+125
NZ2016SHA 0.032768MHZ NSC5297D NDK晶振 2.0x1.6 CMOS -40~+125
NZ2016SHA 0.032768MHZ NSC5298A NDK晶振 2.0x1.6 CMOS -40~+105
NZ2016SHA 0.032768MHZ NSC5298B NDK晶振 2.0x1.6 CMOS -40~+105
NZ2016SHA 0.032768MHZ NSC5298C NDK晶振 2.0x1.6 CMOS -40~+105
NZ2016SHA 0.032768MHZ NSC5298D NDK晶振 2.0x1.6 CMOS -40~+105
NZ2016SHA 0.032768MHZ NSC5299A NDK晶振 2.0x1.6 CMOS -40~+85
NZ2016SHA 0.032768MHZ NSC5299B NDK晶振 2.0x1.6 CMOS -40~+85
NZ2016SHA 0.032768MHZ NSC5299C NDK晶振 2.0x1.6 CMOS -40~+85
NZ2016SHA 0.032768MHZ NSC5299D NDK晶振 2.0x1.6 CMOS -40~+85
NZ2520SHA 0.032768MHZ NSC5271A NDK晶振 2.5x2.0 CMOS -40~+125
NZ2520SHA 0.032768MHZ NSC5271B NDK晶振 2.5x2.0 CMOS -40~+125
NZ2520SHA 0.032768MHZ NSC5271C NDK晶振 2.5x2.0 CMOS -40~+125
NZ2520SHA 0.032768MHZ NSC5271D NDK晶振 2.5x2.0 CMOS -40~+125
NZ2520SHA 0.032768MHZ NSC5272A NDK晶振 2.5x2.0 CMOS -40~+105
NZ2520SHA 0.032768MHZ NSC5272B NDK晶振 2.5x2.0 CMOS -40~+105
NZ2520SHA 0.032768MHZ NSC5272C NDK晶振 2.5x2.0 CMOS -40~+105
NZ2520SHA 0.032768MHZ NSC5272D NDK晶振 2.5x2.0 CMOS -40~+105
NZ2520SHA 0.032768MHZ NSC5273A NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SHA 0.032768MHZ NSC5273B NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SHA 0.032768MHZ NSC5273C NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SHA 0.032768MHZ NSC5273D NDK晶振 2.5x2.0 CMOS -40~+85

6
