OV-7604-C7-32.768k-20PPM-TB-QA,3215mm,Microcrystal晶振，瑞士进口晶振，Microcrystal微晶晶振，型号：OV-7604-C7，编码为：OV-7604-C7-32.768k-20PPM-TB-QA，频率：32.768K晶振，精度：±20ppm，工作温度范围：-40℃至+125℃，小体积晶振尺寸：3.2x1.5x1.0mm，四脚贴片晶振，石英晶振，有源晶振，低功率时钟振荡器。OV-7604-C7是一个低频SMD振荡器，它集成了一个CMOS电路和一个XTAL。它在真空下工作，在一个密封的陶瓷包装与陶瓷盖。应用程序：物联网晶振，测量晶振，工业的，汽车电子晶振，医疗保健，可穿戴设备、便携式设备等应用。
OV-7604-C7-32.768k-20PPM-TB-QA,3215mm,Microcrystal晶振，产品特点：
电源电压范围宽，功耗非常低同步CLKOUT启用/禁用
体积小、重量轻（12.4毫克）石英晶振
抗冲击和振动能力强
100%无铅，符合RoHS标准
可根据AEC-Q200进行汽车鉴定

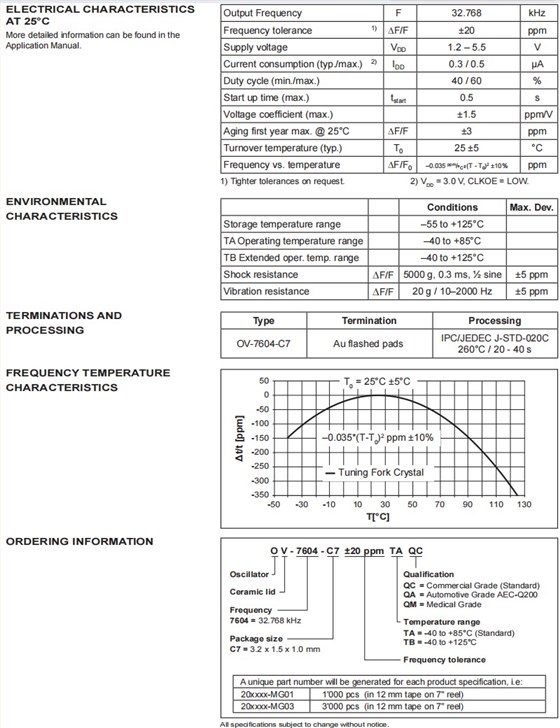

OV-7604-C7-32.768k-20PPM-TB-QA,3215mm,Microcrystal晶振,参数表
Output Frequency
F
32.768
kHz
Frequency tolerance1)
ΔF/F
±20
ppm
Supply voltage
VDD
1.2 – 5.5
V
Current consumption (typ./max.)2)
IDD
0.3 / 0.5
µA
Duty cycle (min./max.)
40 / 60
%
Start up time (max.)
tstart
0.5
s
Voltage coefficient (max.)
±1.5
ppm/V
Aging first year max. @ 25°C
ΔF/F
±3
ppm
Turnover temperature (typ.)
T0
25 ±5
°C
Frequency vs. temperature
ΔF/F0
–0.035 ppm/°C² (T - T0)2±10%
ppm
OV-7604-C7-32.768k-20PPM-TB-QA,3215mm,Microcrystal晶振,尺寸图
