SG3225VAN 156.250000MHz LVDS,X1G004241001400高性能晶振

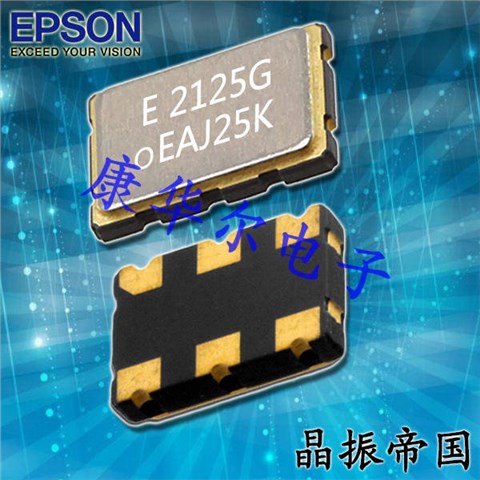

SG3225VAN 156.250000MHz LVDS,X1G004241001400高性能晶振，日本进口晶振，EPSON爱普生晶振，型号SG3225VAN，编码为：X1G004241001400，频率为：156.250000MHz，小体积晶振尺寸：3.2x2.5x1.2mm，六脚贴片晶振，LVDS差分晶振，SPXO石英晶体振荡器，石英晶振，有源晶振，SMD晶振，无铅环保晶振，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，低抖动，低功耗，低耗能，低电源电压，低损耗，低相位噪声，高精度，高性能，高品质等特点。贴片晶振被广泛应用于：通讯设备、无线网络，蓝牙模块，物联网，机顶盒、光端机、医疗设备，安防设备、路由器/交换机、仪器仪表，光纤通信，10G以太网及各种频率控制设备上。

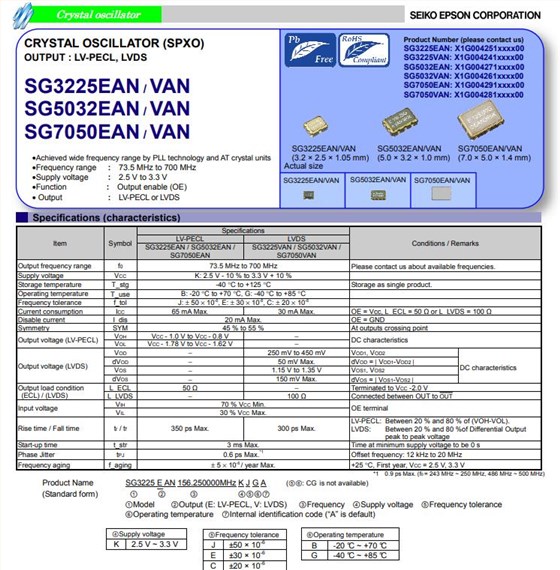

SG3225VAN 156.250000MHz LVDS,X1G004241001400高性能晶振 参数图

Item	Symbol	Specifications		Condition/Remarks
		LV-PECL	LVDS
		SG3225EAN	SG3225VAN
		SG5032EAN	SG5032VAN
		SG7050EAN	SG7050VAN
Output frequency range	f0	156.250000MHz		Please contact us about available frequencies.
Supply voltage	VCC	K : 2.5 V to 3.3 V		VCC= ±10 %
Storage temperature	T_stg	-40 °C to +125 °C		Store as bare product.
Operating temperature	T_use	B : -20 °C to +70 °C
		G : -40 °C to +85 °C
Frequency tolerance	f_tol	C : ±20 × 10-6
		E : ±30 × 10-6
		J : ±50 × 10-6
Current consumption	ICC	65m A Max.	30 mA Max.	OE = VCC
				L_ECL = 50 Ω or L_LVDS = 100 Ω
				f0= 700 MHz
Disable current	I_dis	20 mA Max.		OE = GND
Symmetry	SYM	45 % to 55 %		At outputs crossing point
Output voltage	VOH	VCC- 1.0 V to VCC- 0.8 V	-	DC characteristics
(LV-PECL)	VOL	VCC- 1.78 V to VCC- 1.62 V	-
Output voltage	VOD	-	250 mV to 450 mV	VOD1, VOD2	DC characteristics
(LVDS)	dVOD	-	50 mV Max.	dVOD= | VOD1- VOD2|
	VOS	-	1.15 V to 1.35 V	VOS1, VOS2
	dVOS	-	150 mV Max.	dVOS= | VOS1- VOS2|
Output load condition	L_ECL	50 Ω	-	Terminated to VCC- 2.0 V
(ECL)/(LVDS)	L_LVDS	-	100 Ω	Connected between OUT toOUT
Input voltage	VIH	70 % VCCMin.		OE terminal
	VIL	30 % VCCMax.
Rise time / Fall time	tr/tf	350 ps Max.	-	Between 20 % and 80 % of ( VOH- VOL)
		-	300 ps Max.	Between 20 % and 80 %of Differential Output peak to peak voltage.
Start-up time	t_str	3 ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter	tPJ	0.6 ps Max. *1		Offset frequency: 12 kHz to 20 MHz
Frequency aging	f_aging	±5 × 10-6/ year Max.		+25 °C , VCC= 2.5 V or 3.3 V
				First year.

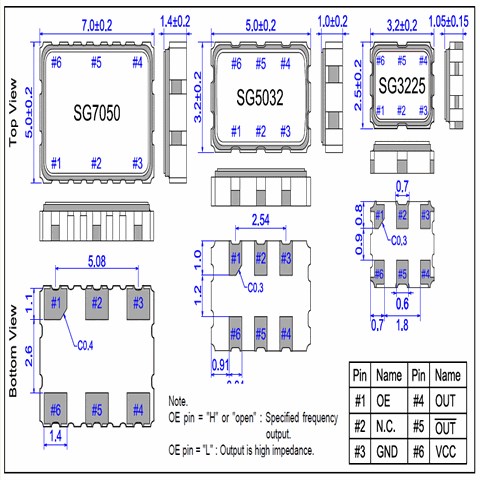

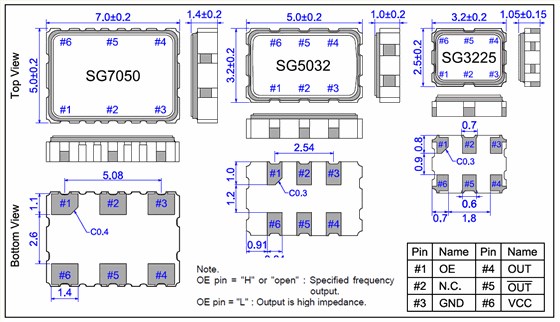

SG3225VAN 156.250000MHz LVDS,X1G004241001400高性能晶振 尺寸图

SG3225VAN 156.250000MHz LVDS,X1G004241001400高性能晶振

差分晶振一般为六脚贴片，工作温度范围-40℃至+85℃，差分振荡器的频率相对都比较高，比如从50MHz起可以做到700MHz或者更低和更高频率，且任意频率精确到个位小数点后六位。电源电压能够做到2.5V-3.3V之间。例如：2.25V、2.5V 、3.0V、3.3V、3.6V可任意选择应用。常见的封装尺寸有7050(7.0x5.0mm)、5032(5.0x3.2mm)、3225(3.2x2.5mm)，更小封装可达到2520(2.5x2.0mm)，常用的输出方式主要有LVPECL和LVDS两种。
