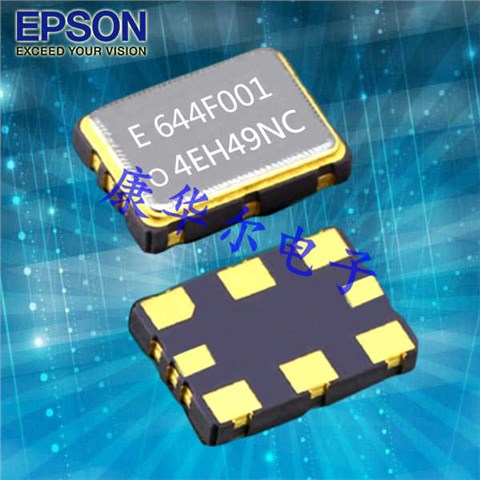

X1G0050210003,SG-8504CA石英振荡器,6G模块晶振,EPSON晶振

X1G0050210003,SG-8504CA石英振荡器,6G模块晶振,EPSON晶振，尺寸7.0*5.0mm,频率75MHZ,输出LV-PECL，OSC差分振荡器，进口差分LV-PECL晶振 ，爱普生差分晶振，有源晶体振荡器，石英差分晶振，低电压差分晶振，低损耗差分振荡器，低抖动差分晶振，有源差分晶振，光模块差分晶振，蓝牙模块差分振荡器，测试测量专用差分晶振，产品具备低抖动低相位低损耗高性能的特点.

差分晶振主要应用范围：OTN, BTS，测试仪器，6G模块，蓝牙模块，光模块，无线网络设备，智能家居，蓝牙音响，平板电脑等领域.X1G0050210003,SG-8504CA石英振荡器,6G模块晶振,EPSON晶振.

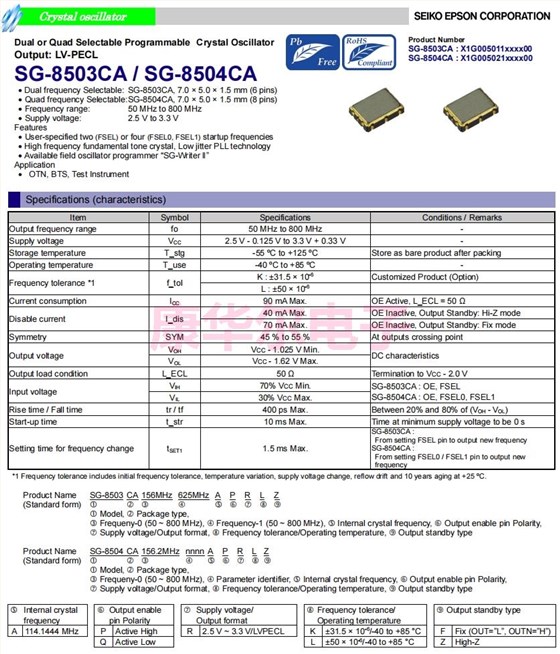

X1G0050210003,SG-8504CA石英振荡器,6G模块晶振,EPSON晶振参数表

Specifications (characteristics)

Item

Symbol

Specifications

Conditions / Remarks

Output frequency range

75MHz

Supply voltage

VCC

2.5 V - 0.125 V to 3.3 V + 0.33 V

Storage temperature

T_stg

-55 ºC to +125 ºC

Store as bare product after packing

Operating temperature

T_use

-40 ºC to +85 ºC

Frequency tolerance *1

f_tol

K : ±31.5 × 10-6

Customized Product (Option)

L : ±50 × 10-6

Current consumption

ICC

90 mA Max.

OE Active, L_ECL = 50 Ω

Disable current

I_dis

40 mA Max.

OE Inactive, Output Standby: Hi-Z mode

70 mA Max.

OE Inactive, Output Standby: Fix mode

Symmetry

SYM

45 % to 55 %

At outputs crossing point

Output voltage

VOH

VCC- 1.025 V Min.

DC characteristics

VOL

VCC- 1.62 V Max.

Output load condition

L_ECL

50 Ω

Termination to VCC- 2.0 V

Input voltage

VIH

70% VCCMin.

SG-8503CA : OE, FSEL
SG-8504CA : OE, FSEL0, FSEL1

VIL

30% VCCMax.

Rise time / Fall time

tr / tf

400 ps Max.

Between 20% and 80% of (VOH- VOL)

Start-up time

t_str

10 ms Max.

Time at minimum supply voltage to be 0 s

Setting time for frequency change

tSET1

1.5 ms Max.

SG-8503CA :
From setting FSEL pin to output new frequency
SG-8504CA :
From setting FSEL0 / FSEL1 pin to output new
frequency

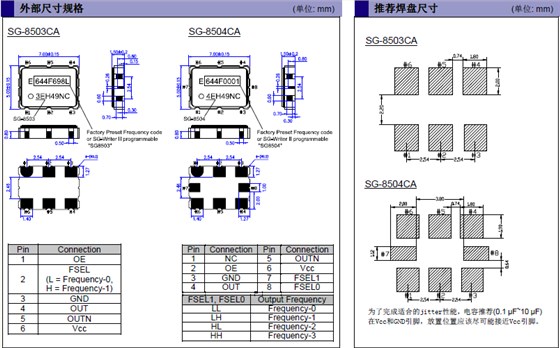

X1G0050210003,SG-8504CA石英振荡器,6G模块晶振,EPSON晶振 尺寸图

SPXO晶振产品特性：

双频可选:SG-8503CA, 7.0×5.0×1.5mm(6引脚)

四频可选:SG-8504CA, 7.0× 5.0×1.5 mm(8引脚)

频率范围:50mhz ~ 800mhz

电源电压:2.5 V至3.3 V

用户指定两个(FSEL)或四个(FSEL0, FSEL1)启动频率

高频基频晶体，低抖动锁相环技术

可用的场振荡器编程器“SG-Writer _”
