SG2520EGN差分振荡器,爱普生测量设备晶振,X1G0058810001

SG2520EGN差分振荡器,爱普生测量设备晶振,X1G0058810001，尺寸2.5x2.0mm，频率156.25MHZ，输出逻辑LV-PECL，日本进口晶振，EPSON石英振荡器，差分石英振荡器，有源差分晶振，贴片差分晶振，LV-PECL输出晶振，差分晶体振荡器，2520mm差分晶振，差分晶振LV-PECL，低电压差分晶振，低抖动差分晶振，低耗能差分晶振，低相位差分晶振，高品质差分晶振，路由器差分晶振，光模块差分晶振，测量设备差分晶振，数据中心差分振荡器，具备良好的可靠性能。

5G将使网络通信流量呈指数级增长。5G通信网络需要高速以及宽带宽，同时最小化噪声。这将通过高频率、低抖动来实现将使用小型光学模块的通信设备的参考时钟。有源晶振产品适用于网络设备（路由器、交换机、光模块等），数据中心，测试和测量设备，工厂自动化，ADC和DAC等高速转换器等领域。SG2520EGN差分振荡器,爱普生测量设备晶振,X1G0058810001.

SG2520EGN差分振荡器,爱普生测量设备晶振,X1G0058810001 参数表

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Maximum supply voltage

VCC

-0.3

4.0

Input voltage

Vin

-0.3

VCC+ 0.5

OE/terminal

Storage temperature range

T_stg

-55

+125

°C

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Supply voltage

VCC

2.375

2.5

2.625

Suffix: D

3.135

3.3

3.465

Suffix: C

Supply voltage

GND

0.0

Operating temperature range

T_use

-40

+25

+85

°C

Suffix: G

-40

+25

+105

°C

Suffix: H

ECL load condition

L_ECL

Terminated to VCC- 2.0 V

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

500

MHz

Frequency tolerance *2

f_tol

-25

+25

×10-6

Suffix: D

-50

+50

×10-6

Suffix: J

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 % VCC
Current consumption	ICC	-	-	60	mA
Disable current	I_dis	-	-	35	mA	OE = GND
Stand-by current	I_std	-	-	30	μA	= GND, T_use Max. = +85 °C
		-	-	60	μA	= GND, T_use Max. = +105 °C
Rise time / Fall time	tr / tf	-	-	0.35	ns	20 % - 80 % of (VOH- VOL)
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOH	VCC- 1.1	-	-	V	DC level
	VOL	-	-	VCC- 1.5	V
Differential swing	VSW	800	-	2 000	mV
Input voltage	VIH	70 % VCC	-	-	V	OE/terminal
	VIL	-	-	30 % VCC	V
Output disable time (OE)	tstp_oe	-	-	100	ns	Measured from the time OE pin crosses 30 % VCC
Output disable time (ST)	tstp_st	-	-	100	ns	Measured from the time pin crosses 30 % VCC
Output enable time (OE)	tsta_oe	-	-	500	ns	Measured from the time OE pin crosses 70 % VCC
Output enable time (ST)	tsta_st	-	-	10	ms	Measured from the time pin crosses 70 % VCC
Phase jitter Offset frequency fo < 50 MHz: 12 kHz to 5 MHz fo≥50 MHz: 12 kHz to 20 MHz	tPJ	-	-	250	fs	fo < 100 MHz
		-	-	90	fs	100 MHz≤fo≤156 MHz
		-	-	70	fs	156 MHz < fo≤212 MHz
		-	-	60	fs	212 MHz < fo≤391 MHz
		-	-	50	fs	fo > 391 MHz

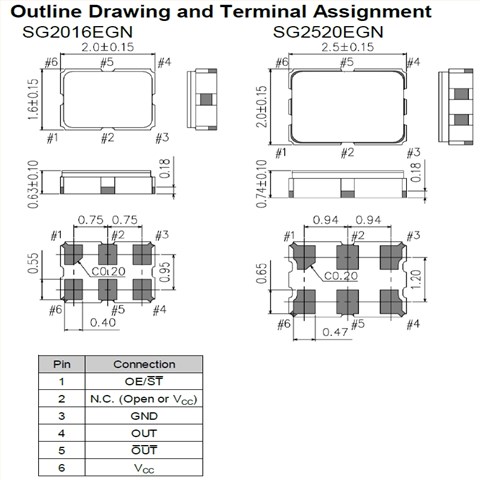

SG2520EGN差分振荡器,爱普生测量设备晶振,X1G0058810001 尺寸图

SG2520EGN差分振荡器,爱普生测量设备晶振,X1G0058810001

产品特点：

差分晶体振荡器

频率范围（fo）：25MHz至500MHz

输出：LVPECL

电源电压：2.5 V Typ./3.3 V类型。

工作温度：-40°C至+105°C

低相位抖动：44 fs典型值。（fo=156.25 MHz）

编码	晶振厂家	型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0023510013	爱普生晶振	SG-770SCD	156.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	0 to 70 °C
X1G0023510014	爱普生晶振	SG-770SCD	187.500000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	0 to 70 °C
X1G0023510019	爱普生晶振	SG-770SCD	125.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510026	爱普生晶振	SG-770SCD	62.500000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510027	爱普生晶振	SG-770SCD	133.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510028	爱普生晶振	SG-770SCD	106.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510029	爱普生晶振	SG-770SCD	155.520000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510032	爱普生晶振	SG-770SCD	133.330000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510033	爱普生晶振	SG-770SCD	148.500000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510035	爱普生晶振	SG-770SCD	125.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	0 to 70 °C
X1G0023510044	爱普生晶振	SG-770SCD	155.520000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	0 to 70 °C
X1G0023510053	爱普生晶振	SG-770SCD	50.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510122	爱普生晶振	SG-770SCD	80.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510123	爱普生晶振	SG-770SCD	133.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510125	爱普生晶振	SG-770SCD	150.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510126	爱普生晶振	SG-770SCD	50.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-20 to 70 °C
X1G0023510128	爱普生晶振	SG-770SCD	80.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-20 to 70 °C
X1G0023510129	爱普生晶振	SG-770SCD	53.125000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510130	爱普生晶振	SG-770SCD	133.333300 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510131	爱普生晶振	SG-770SCD	75.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510132	爱普生晶振	SG-770SCD	98.304000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0023510808	爱普生晶振	SG-770SCD	200.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1M0003010002	爱普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010003	爱普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010004	爱普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010006	爱普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010007	爱普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010008	爱普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010009	爱普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010010	爱普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010011	爱普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010012	爱普生晶振	XG-2102CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010013	爱普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010014	爱普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010015	爱普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010016	爱普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010017	爱普生晶振	XG-2102CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010019	爱普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010020	爱普生晶振	XG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010021	爱普生晶振	XG-2102CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010022	爱普生晶振	XG-2102CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010023	爱普生晶振	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010025	爱普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010026	爱普生晶振	XG-2102CA	245.760000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010027	爱普生晶振	XG-2102CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010029	爱普生晶振	XG-2102CA	156.257812 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010030	爱普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010031	爱普生晶振	XG-2102CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010032	爱普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010033	爱普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010035	爱普生晶振	XG-2102CA	199.860000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010036	爱普生晶振	XG-2102CA	200.140000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010037	爱普生晶振	XG-2102CA	216.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010039	爱普生晶振	XG-2102CA	263.157900 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010040	爱普生晶振	XG-2102CA	622.080000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010041	爱普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010042	爱普生晶振	XG-2102CA	103.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010043	爱普生晶振	XG-2102CA	105.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010044	爱普生晶振	XG-2102CA	161.132800 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010045	爱普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010046	爱普生晶振	XG-2102CA	644.531250 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010047	爱普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010048	爱普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010049	爱普生晶振	XG-2102CA	156.255000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010050	爱普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010051	爱普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010052	爱普生晶振	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010053	爱普生晶振	XG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1G0058810001	爱普生晶振	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0058810002	爱普生晶振	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0058810003	爱普生晶振	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0058810005	爱普生晶振	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C
