爱普生SPXO振荡器,X1M0002010009,EG-2102CB通信模块晶振

爱普生SPXO振荡器,X1M0002010009,EG-2102CB通信模块晶振，尺寸5.0x3.2mm，频率150MHZ，输出逻辑LV-PECL，EPSON石英晶振，日本进口晶振，进口有源晶振，5032mm差分晶振，SPXO差分晶振，贴片差分晶振，有源差分振荡器，石英差分晶振，LV-PECL输出晶振，进口差分LV-PECL晶振，低电压差分晶振，低抖动差分晶振，低损耗差分晶振，低相位差分晶振，低相噪差分晶振，高性能差分晶振，高品质差分晶振，通信模块差分晶振，航空通信差分晶振，娱乐设备差分晶振，多媒体设备差分晶振，数字视频差分晶振，光通信差分晶振，智能穿戴差分晶振，具有良好的稳定性能。

差分振荡器产品比较常用于通信模块，航空通信，娱乐设备，多媒体设备，数字视频，光通信，智能穿戴等应用场景.爱普生SPXO振荡器,X1M0002010009,EG-2102CB通信模块晶振.

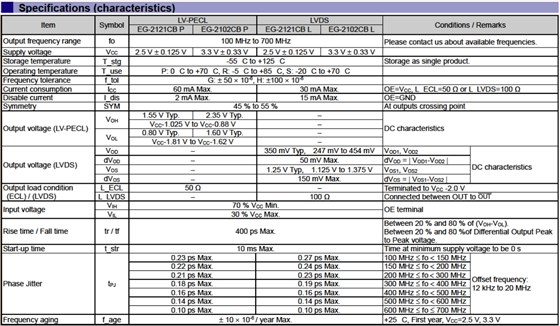

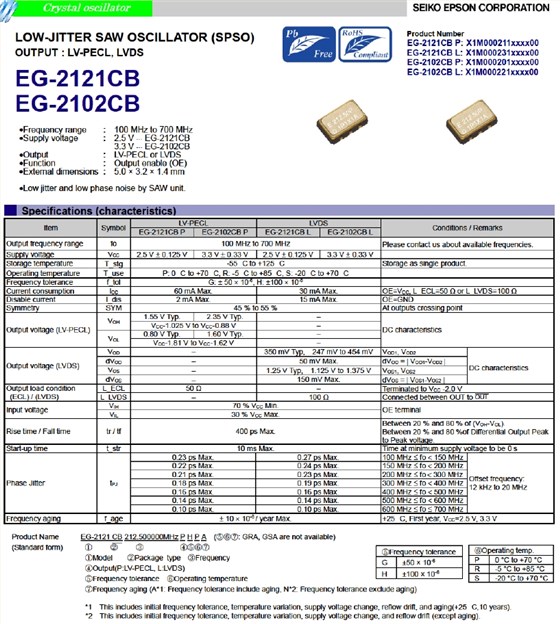

爱普生SPXO振荡器,X1M0002010009,EG-2102CB通信模块晶振 参数表

EG-2102CB 参数png

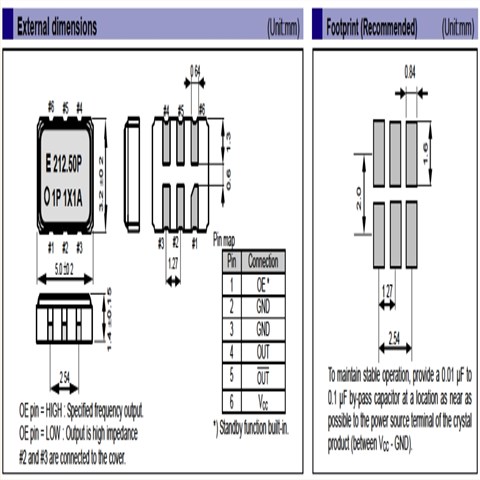

爱普生SPXO振荡器,X1M0002010009,EG-2102CB通信模块晶振 尺寸图

爱普生SPXO振荡器,X1M0002010009,EG-2102CB通信模块晶振

产品特点：

频率范围：100MHZ~700MHZ

电压：3.3V

输出：LVPECL差分晶振 or LVDS

尺寸为5.00x3.20x1.40mm

编码	日本进口晶振品牌	型号	频率	尺寸	输出方式	电源电压	工作温度
X1M0001410001	爱普生晶振	EG-4101CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410002	爱普生晶振	EG-4101CA	281.333300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410003	爱普生晶振	EG-4101CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410004	爱普生晶振	EG-4101CA	698.812300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410007	爱普生晶振	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410008	爱普生晶振	EG-4101CA	400.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410010	爱普生晶振	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410013	爱普生晶振	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410014	爱普生晶振	EG-4101CA	644.531200 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410017	爱普生晶振	EG-4101CA	156.253906 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0002010001	爱普生晶振	EG-2102CB	133.330000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010002	爱普生晶振	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010003	爱普生晶振	EG-2102CB	133.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010004	爱普生晶振	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010005	爱普生晶振	EG-2102CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0002010006	爱普生晶振	EG-2102CB	644.531300 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010007	爱普生晶振	EG-2102CB	625.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002010008	爱普生晶振	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002010009	爱普生晶振	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010010	爱普生晶振	EG-2102CB	106.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002110001	爱普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0002110002	爱普生晶振	EG-2121CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0002110003	爱普生晶振	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0002110004	爱普生晶振	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0004110002	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110005	爱普生晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110006	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0004110007	爱普生晶振	MG7050EAN	669.325580 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0004110008	爱普生晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110009	爱普生晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0004110010	爱普生晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110011	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110012	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0004110013	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0004110014	爱普生晶振	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110015	爱普生晶振	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110016	爱普生晶振	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110017	爱普生晶振	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110018	爱普生晶振	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110019	爱普生晶振	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110020	爱普生晶振	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0004110021	爱普生晶振	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0004110022	爱普生晶振	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0004110023	爱普生晶振	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0004110024	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0004110025	爱普生晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0004110026	爱普生晶振	MG7050EAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
