瑞萨XA晶振中物料编码为XAL335A00.000000K的晶振，其频率是1GHz，输出方式是LVDS 输出，为瑞萨XA差分晶振，该晶振的电压是3.3V，频率公差为±50ppm，其工作温度是-40°C~105°C，该晶振的电流是100mA，尺寸是3225mm，该晶振也叫3225有源晶振，3225差分晶振，六脚SMD晶振，瑞萨贴片晶振。差分晶振可提供两种相位彼此完全相反的信号, 差分晶体振荡器属于行业里极其高端的有源晶振，拥有LVDS,LVPECL,HCMOS 等输出方式，我们常见的是贴片差分晶振，体积有微小型也有大体积，常规的输出方式是 LVDS，因此在业界中还有 LVDS 差分晶振这一说法，军事设备与工业设备应用比较比较多。
瑞萨XA差分晶振,1GHz,XAL335A00.000000K,3225有源晶振
|
原产编码 |
XAL335A00.000000K |
|
品牌 |
Renesas |
|
型号 |
XA |
|
频率 |
1GHz |
|
输出方式 |
LVDS |
|
电压 |
3.3V |
|
精度 |
±50ppm |
|
工作温度 |
-40°C~105°C |
|
电流 |
100mA |
|
尺寸 |

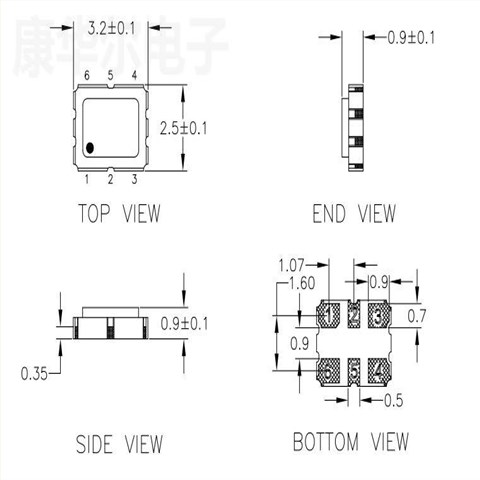

3225mm |
瑞萨XA差分晶振,1GHz,XAL335A00.000000K,3225有源晶振
