Renesas振荡器,XUP525100.000000I,6G以太网晶振,XP差分晶振

Renesas振荡器,XUP525100.000000I,6G以太网晶振,XP差分晶振，尺寸5.0x3.2mm，频率100MHZ，电压2.5V，输出逻辑LVPECL，LVPECL输出晶振，LVPECL差分晶振，有源差分晶振，5032mm差分晶体振荡器，OSC差分晶振，SMD差分晶振，六脚贴片差分晶振，6G电信差分晶振，6G以太网差分晶振，测试测量差分晶振，仪器设备晶振，路由器差分晶振，高质量差分晶振，高性能差分晶振，低抖动差分晶振，低损耗差分晶振，低功耗差分晶振，低电压差分晶振，具有高质量低抖动的特点.

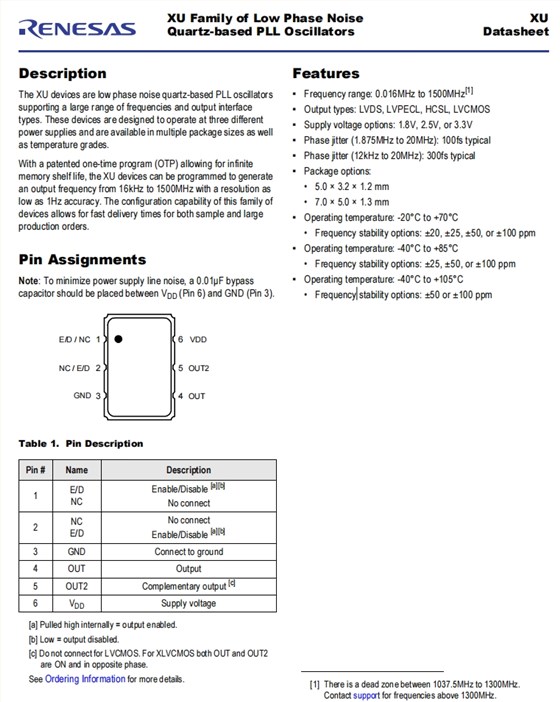

XU差分输出晶振是基于低相位噪声石英的PLL振荡器支持大范围的频率和输出接口类型。这些设备被设计为在三种不同的条件下运行电源，也有多种封装尺寸作为温度等级。拥有专利的一次性程序（OTP），允许无限存储器的保质期，XU设备可以被编程为输出频率为16kHz至1500MHz，分辨率为低至1Hz精度。Renesas振荡器,XUP525100.000000I,6G以太网晶振,XP差分晶振.

Renesas振荡器,XUP525100.000000I,6G以太网晶振,XP差分晶振 参数表

Symbol	Parameter	Output Type	Conditions	Minimum	Typical	Maximum	Units
IDD	Current Consumption	LVDS	0.016MHz to 400MHz.			97	mA
			400.000+MHz to 1.5GHz.			122
		LVPECL	0.016MHz to 212.5MHz.			115
			212.5+MHz to 400MHz.			128
			400+MHz to 670MHz.			142
		HCSL	0.016MHz to 670MHz.			145
		LVCMOS	0.016MHz to 62.5MHz.			98
			62.5+MHz to 167MHz.			108
Table 7.2.5V IDD DC Electrical Characteristics
VDD= 2.5V ±5%, TA= -20°C to +70°C; -40°C to +85°C, -40°C to +105°C.
Symbol	Parameter	Output Type	Conditions	Minimum	Typical	Maximum	Units
IDD	Current Consumption	LVDS	0.016MHz to 400MHz.			90	mA
			400.000+MHz to 1.35GHz.			103
		LVPECL	0.016MHz to 156.25MHz.			102
			156.25+MHz to 400MHz.			112
			400+MHz to 670MHz.			118
		HCSL	0.016MHz to 400MHz.			102
			400.000+MHz to 670MHz.			112
		LVCMOS	0.016MHz to 62.5MHz.			80
			62.5+MHz to 125MHz.			85
			125+MHz to 167MHz.			92

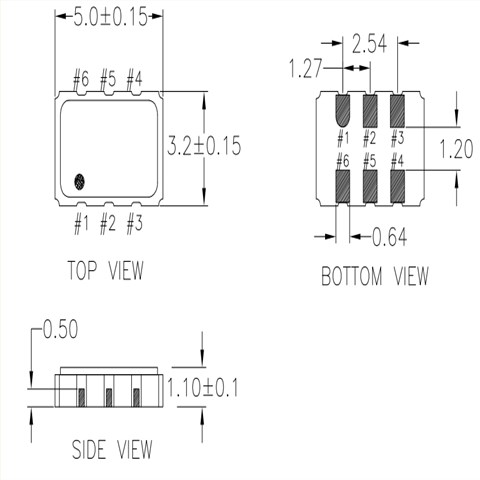

Renesas振荡器,XUP525100.000000I,6G以太网晶振,XP差分晶振尺寸图

产品特性：

频率范围：0.016MHz至1500MHz[1]

输出类型：LVDS差分振荡器、LVPECL、HCSL、LVCMOS

电源电压选项：1.8V、2.5V或3.3V

相位抖动（1.875MHz至20MHz）：典型100fs

相位抖动（12kHz至20MHz）：典型300fs

程序包选项：

5.0×3.2×1.2毫米

7.0×5.0×1.3毫米

工作温度：-20°C至+70°C

频率稳定性选项：±20、±25、±50或±100ppm

工作温度：-40°C至+85°C

频率稳定性选项：±25、±50或±100ppm

工作温度：-40°C至+105°C

频率稳定性选项：±50或±100ppm
