Oscilent水晶音叉晶体,223-000312-20,223系列晶振,8038mm,32.768KHZ，尺寸8.0x3.8mm，频率32.768KHZ，奥斯康利无源晶体，8038陶瓷面晶振，水晶振动子，32.768KHZ音叉晶振，无源贴片晶振，四脚无源晶体，无源晶振，SMD晶振，32.768KHZ贴片晶振，时钟应用晶振，音叉晶体，智能体温计晶振，智能电表晶振，时间显示晶振，游戏机晶振，娱乐设备晶振，低功耗晶振，低耗能晶振，低损耗晶振，高性能晶振，高品质晶振，具有高品质高性能的特点。32.768K时钟晶振产品被广泛应用于时钟应，智能体温计，智能电表，时间显示，游戏机，娱乐设备等应用领域。Oscilent水晶音叉晶体,223-000312-20,223系列晶振,8038mm,32.768KHZ.
Oscilent水晶音叉晶体,223-000312-20,223系列晶振,8038mm,32.768KHZ 参数表
| Parameter | Conditions | Characteristics | Units | |||||
| Nominal Frequency | fO | 32.768 | kHz | |||||
| Calibration Tolerance | @25ºC | ±20 | PPM | |||||
| Turnover Temperature | TO | +25 ±5 | ºC | |||||
| Operating Temperature | TOPR | -40 ~ +85 | ºC | |||||
| Storage Temperature | TSTG | -55 ~ +125 | ºC | |||||
|
Equivalent Series Resistance |
R1 | 50 max. | kohm | |||||
| Load Capacitance | CL | 12.5 (typ.) / 6.0 (Optional) | pF | |||||
| Motional Capacitance | C1 | 0.003 (typ.) | pF | |||||
| Shunt Capacitance | C0 | 1.35 (typ.) | pF | |||||
| Temperature Coefficient | - | -0.040 PPM / ºC² max. | PPM/( Co) | |||||
| Drive Level | DL | 1 max. | µW | |||||
| Insulation Resistance | IR. | 500 min. DC 100V | Mohm | |||||
| Aging (First Year) | @25ºC | ±3 PPM max. | PPM | |||||
| Q Factor | Q | 50,000 min. | - | |||||

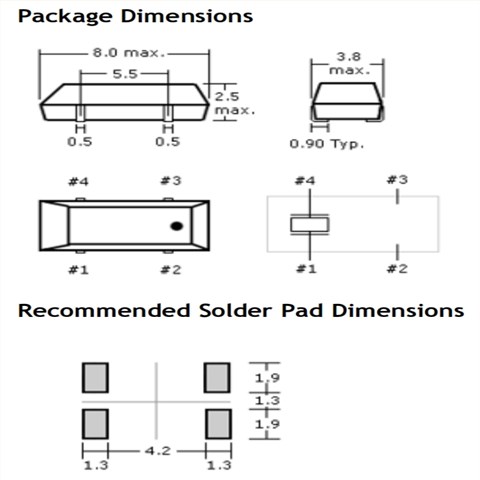

Oscilent水晶音叉晶体,223-000312-20,223系列晶振,8038mm,32.768KHZ 尺寸图
Oscilent水晶音叉晶体,223-000312-20,223系列晶振,8038mm,32.768KHZ
产品特点：
低调
长期稳定性
行业标准占地面积
卓越的抗震性能
卓越的环境特性
磁带和卷轴
RoHs/无铅合规
