美国Skyworkss晶振公司生产的Si511差分晶振一般是四、六脚贴片式晶振，尺寸7.0*5.0*1.8mm，为Skyworks石英晶振，该体积的产品采用金属面编带封装,具备充分的封密性能 ,采用自动贴片机高速焊接，电压3.3v，具有低损耗、低电源电压的特点。我们的生产流程经过专业的工程师进行严密的设计与规范，每一个环节都有科学的控制管理方法，细致到每道工序、每个质控点。生产人员必须通过严格的上岗培训才能生产作业，生产过程中必须穿着统一制服，专人专项操作机器设备。

TC-2

511ABA156M250AAGR,Skyworks石英晶振,511ABA156M250BAG,Si511差分晶振

原产编码	511ABA156M250AAGR/511ABA156M250BAG
品牌	Skyworks晶振
型号	Si511
频率	156.25MHz
输出方式	LVPECL
电压	3.3V
工作温度	﹣40℃~85℃
精度	±25ppm
电流	43MA

511ABA156M250AAGR,Skyworks石英晶振,511ABA156M250BAG,Si511差分晶振

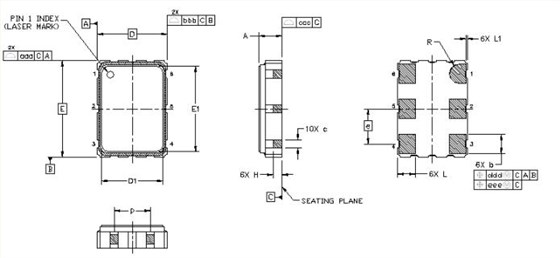

7050 cct

更多相关编码参考

原产编码	品牌	型号	频率	输出方式
510KBA25M0000BAGR	Skyworks晶振	Si510	25 MHz	CMOS
511BBA125M000BAGR	Skyworks晶振	Si511	125 MHz	LVDS
511FBA125M000BAGR	Skyworks晶振	Si511	125 MHz	LVDS
510ABA148M500BAGR	Skyworks晶振	Si510	148.5 MHz	LVPECL
510BBA156M250BAGR	Skyworks晶振	Si510	156.25 MHz	LVDS
511FBA000330BAGR	Skyworks晶振	Si511	125 MHz	LVDS
511BBA100M000BAG	Skyworks晶振	Si511	100 MHz	LVDS
511BBA125M000AAG	Skyworks晶振	Si511	125 MHz	LVDS
511BBA100M000AAG	Skyworks晶振	Si511	100 MHz	LVDS
511BBA200M000AAG	Skyworks晶振	Si511	200 MHz	LVDS
530BB125M000DG	Skyworks晶振	Si530	125 MHz	LVDS
531BC125M000DG	Skyworks晶振	Si531	125 MHz	LVDS
545BAA200M000BBG	Skyworks晶振	Ultra™ Si545	200 MHz	LVDS
570BAB000544DG	Skyworks晶振	Si570	156.25 MHz	LVDS
510BBA125M000AAGR	Skyworks晶振	Si510	125 MHz	LVDS
510BBA156M250AAGR	Skyworks晶振	Si510	156.25 MHz	LVDS
511ABA156M250AAGR	Skyworks晶振	Si511	156.25 MHz	LVPECL
511BBA200M000BAGR	Skyworks晶振	Si511	200 MHz	LVDS
510MCA50M0000AAGR	Skyworks晶振	Si510	50 MHz	CMOS
511BCA160M000BAGR	Skyworks晶振	Si511	160 MHz	LVDS
510KBA100M000BAG	Skyworks晶振	Si510	100 MHz	CMOS
511BBA74M2500BAG	Skyworks晶振	Si511	74.25 MHz	LVDS
510BBA125M000BAG	Skyworks晶振	Si510	125 MHz	LVDS
511FBA125M000BAG	Skyworks晶振	Si511	125 MHz	LVDS
511BBA125M000BAG	Skyworks晶振	Si511	125 MHz	LVDS
510BBA100M000BAG	Skyworks晶振	Si510	100 MHz	LVDS
511FBA100M000BAG	Skyworks晶振	Si511	100 MHz	LVDS
510FBA125M000BAG	Skyworks晶振	Si510	125 MHz	LVDS
510KCA125M000BAG	Skyworks晶振	Si510	125 MHz	CMOS
511BBA000110BAG	Skyworks晶振	Si511	148.35165 MHz	LVDS
511FBA156M250BAG	Skyworks晶振	Si511	156.25 MHz	LVDS
511BBA148M500BAG	Skyworks晶振	Si511	148.5 MHz	LVDS
511JBA125M000BAG	Skyworks晶振	Si511	125 MHz	LVDS
511FBA200M000BAG	Skyworks晶振	Si511	200 MHz	LVDS
510BBA200M000BAG	Skyworks晶振	Si510	200 MHz	LVDS
511JBA100M000BAG	Skyworks晶振	Si511	100 MHz	LVDS
511FCA25M0000BAG	Skyworks晶振	Si511	25 MHz	LVDS
511FCA100M000BAG	Skyworks晶振	Si511	100 MHz	LVDS
511SBA156M250BAG	Skyworks晶振	Si511	156.25 MHz	CMOS
511JBA135M000BAG	Skyworks晶振	Si511	135 MHz	LVDS
