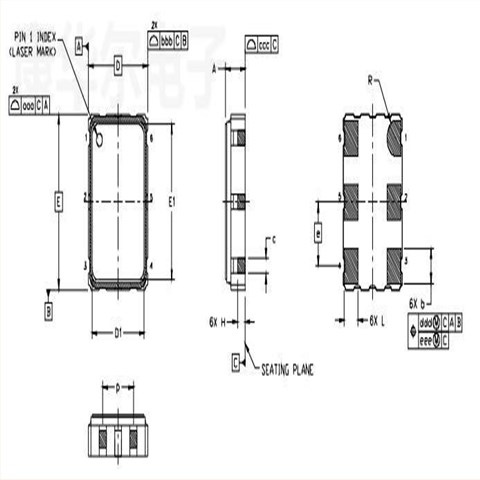

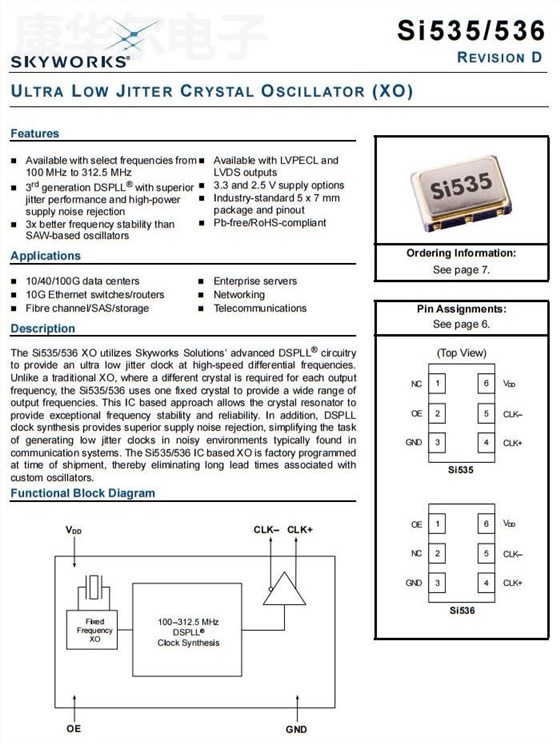

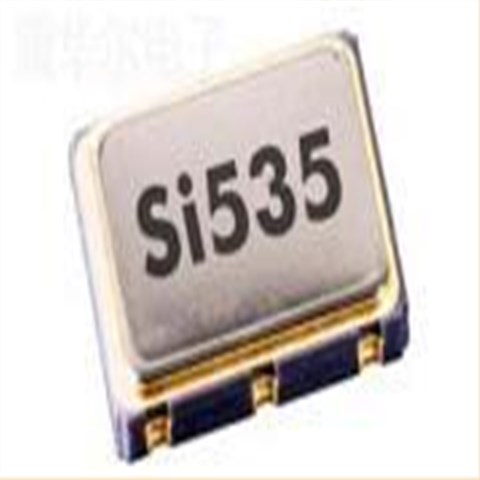

编码是535EC212M500DG的差分振荡器Si535的频率是212.5MHz，其输出方式为LVPECL输出，也叫差分晶振LVPECL，该晶振的电压是2.5V，精度为±7ppm，工作温度是-40°C~85°C，其电流是121mA，尺寸为7050mm。7050振荡器，LVPECL差分晶振，差分晶体振荡器，差分晶体振荡器属于行业里极其高端的有源晶振,拥有 LVDS,LVPECL,HCMOS 等输出方式,我们常见的是贴片差分晶振,体积有微小型也有大体积,常规的输出方式是 LVDS,因此在业界中还有 LVDS 差分晶振这一说法, 军事设备与工业设备应用比较比较多。
535EC212M500DG,212.5MHz,差分晶振LVPECL,差分振荡器Si535,Skyworks晶振
|
原产编码 |
535EC212M500DG |
|
品牌 |
Skyworks晶振 |
|
型号 |
Si535 |
|
频率 |
212.5MHz |
|
输出方式 |
LVPECL |
|
电压 |
2.5V |
|
工作温度 |
﹣40℃~85℃ |
|
精度 |
±7ppm |
|
电流 |
121mA |
|
尺寸 |
7050mm |
535EC212M500DG,212.5MHz,差分晶振LVPECL,差分振荡器Si535,Skyworks晶振
更多相关晶振参考
| 原产编码 | 品牌 | 型号 | 频率 | 输出方式 | 电压 |
| 536BB125M000DG | Skyworks晶振 | Si536 | 125MHz | LVDS | 3.3V |
| 536FB125M000DG | Skyworks晶振 | Si536 | 125MHz | LVDS | 2.5V |
| 535FB156M250DG | Skyworks晶振 | Si535 | 156.25MHz | LVDS | 2.5V |
| 536FB156M250DG | Skyworks晶振 | Si536 | 156.25MHz | LVDS | 2.5V |
| 531FC100M000DG | Skyworks晶振 | Si531 | 100MHz | LVDS | 2.5V |
| 530AC156M250DG | Skyworks晶振 | Si530 | 156.25MHz | LVPECL | 3.3V |
| 530BC156M250DG | Skyworks晶振 | Si530 | 156.25MHz | LVDS | 3.3V |
| 530FC156M250DG | Skyworks晶振 | Si530 | 156.25MHz | LVDS | 2.5V |
| 531AC156M250DG | Skyworks晶振 | Si531 | 156.25MHz | LVPECL | 3.3V |
| 531EC156M250DG | Skyworks晶振 | Si531 | 156.25MHz | LVPECL | 2.5V |
| 530AC200M000DG | Skyworks晶振 | Si530 | 200MHz | LVPECL | 3.3V |
| 530BC148M500DG | Skyworks晶振 | Si530 | 148.5MHz | LVDS | 3.3V |
| 531BC148M500DG | Skyworks晶振 | Si531 | 148.5MHz | LVDS | 3.3V |
| 531BC200M000DG | Skyworks晶振 | Si531 | 200MHz | LVDS | 3.3V |
| 531FC200M000DG | Skyworks晶振 | Si531 | 200MHz | LVDS | 2.5V |
| 570CAC000121DG | Skyworks晶振 | Si570 | 100MHz | CMOS | 3.3V |
| 570AAC000118DG | Skyworks晶振 | Si570 | 156.25MHz | LVPECL | 3.3V |
| 570AAC000129DG | Skyworks晶振 | Si570 | 155.52MHz | LVPECL | 3.3V |
| 570BAC000115DG | Skyworks晶振 | Si570 | 125MHz | LVDS | 3.3V |
| 570CAC000115DG | Skyworks晶振 | Si570 | 125MHz | CMOS | 3.3V |
| 531BB125M000DG | Skyworks晶振 | Si531 | 125MHz | LVDS | 3.3V |
| 531FB106M250DG | Skyworks晶振 | Si531 | 106.25MHz | LVDS | 2.5V |
| 530FB100M000DG | Skyworks晶振 | Si530 | 100MHz | LVDS | 2.5V |
| 530CB50M0000DG | Skyworks晶振 | Si530 | 50MHz | CMOS | 3.3V |
| 514BBA001207AAG | Skyworks晶振 | Si514 | 100MHz | LVDS | 3.3V |
| 570BBC000115DG | Skyworks晶振 | Si570 | 125MHz | LVDS | 3.3V |
