Raltron石英振荡器,CO2016以太网晶振,CO2016-50.000-3.3-50-T-TR，尺寸2.0x1.6mm，频率50MHZ，电压3.3V，频率稳定性50ppm，美国拉隆晶振，美国进口晶振，石英有源晶振，贴片有源晶振，OSC振荡器，石英晶体振荡器，2016mm有源晶振，时钟晶体振荡器，50MHZ有源晶振，环保有源晶振，低电压有源晶振，低功耗有源晶振，低抖动有源晶振，低耗能有源晶振，高品质有源晶振，智能家居有源晶振，多媒体设备有源晶振，以太网有源晶振，室外基站有源晶振，通讯模块有源晶振，数字电视有源晶振，智能音响有源晶振，具有低抖动高品质的特点，有源晶振产品适合用于智能家居，多媒体设备，以太网，室外基站，通讯模块，数字电视，智能音响等领域。Raltron石英振荡器,CO2016以太网晶振,CO2016-50.000-3.3-50-T-TR.
Raltron石英振荡器,CO2016以太网晶振,CO2016-50.000-3.3-50-T-TR 参数表
| PARAMETER | VALUE | ||||||||||||||||||
| Nominal Frequency | 50MHZ | ||||||||||||||||||
| Operating Temperature Range |
-20°C~+70°CStandard -40°C ~ +85?C Extended |
||||||||||||||||||
| Frequency Stability* | ±20 ppm, ±25 ppm, ±30 ppm, ±50 ppm | ||||||||||||||||||
| Storage Temperature Range | -55°C to +125°C | ||||||||||||||||||
| Supply Voltage (Vcc) | 1.8 V, 3.3 V, 5.0 V | ||||||||||||||||||
| Supply Current | 240 µA max | ||||||||||||||||||
|
Output CMOS |
Symmetry | 40% to 60% at 50% Vdd (45% to 55% Available) | |||||||||||||||||
| Rise / Fall Time | 200 ns max at 10% to 90% Vdd | ||||||||||||||||||
| Logic “0” Level | Vcc x 0.1 V max | ||||||||||||||||||
| Logic “1” Level | Vcc x 0.9 V min | ||||||||||||||||||
| Load | 15 pF max | ||||||||||||||||||
| Enable / Disable Function |
Pin 1: High or Open >> Output enabled Pin 3 Pin 1: Low >> Output disabled (High impedance) |
||||||||||||||||||
| Start-up Time | 10 ms max | ||||||||||||||||||

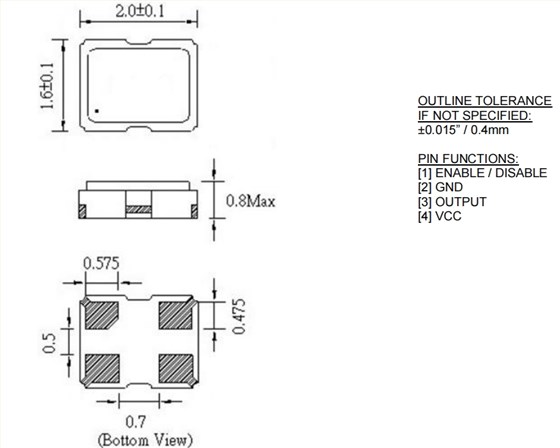

Raltron石英振荡器,CO2016以太网晶振,CO2016-50.000-3.3-50-T-TR 尺寸图
Raltron石英振荡器,CO2016以太网晶振,CO2016-50.000-3.3-50-T-TR
进口有源晶振产品特点：
尺寸2.0*1.6mm
电压3.3V
频率稳定性±500ppm
低抖动低功耗
| 元器件详情 | 包装 | Oscillator Type | Operating Frequency | Frequency Stability | Supply Voltage | Operating Temp Range |
| 卷盘 | 25MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO2016-25.000-3.3-50-T-TR | ||||||
| Raltron | ||||||
| CO2016 系列 2 x 1.6 mm 25 MHz 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 50MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO2016-50.000-3.3-50-T-TR | ||||||
| Raltron | ||||||
| CO2016系列2 x 1.6 mm 50 MHz 3.3 V ±50 ppm表面贴装时钟振荡器 | ||||||
| 卷盘 | 25MHz | ±20ppm | 3.3V | -40°C to +85°C | ||
| CO4302-25.000-EXT-T-T | ||||||
| Raltron | ||||||
| CO4 Series 25 MHz 3.3 V ±20 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 40MHz | ±20ppm | 3.3V | -40°C to +85°C | ||
| CO4302-40.000-T-EXT-TR | ||||||
| Raltron | ||||||
| CO43 系列 40 MHz ±20 ppm -40 至 +85°C 严格对称 标准贴装 时钟 振荡器 | ||||||
| 卷盘 | 11.184MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO43025-11.184-TR | ||||||
| Raltron | ||||||
| CO43025 系列 11.184 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装 振荡器 | ||||||
| 卷盘 | 12.96MHz | ±25ppm | 3.3V | -10°C to +70°C | ||
| CO43025-12.960-TR | ||||||
| Raltron | ||||||
| CO43025系列12.960 MHz薄型5 X 7 mm 3.3 V 25 PPM表面贴装振荡器 | ||||||
| 盒装 | 14.3182MHz | ±25ppm | 3.3V | -10°C to +70°C | ||
| CO43025-14.31818-T | ||||||
| Raltron | ||||||
| CO43025 系列 14.31818 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装 振荡器 | ||||||
| 卷盘 | 14.3182MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO43025-14.31818-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 14.31818 MHz 3.3 V ±25 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 16.384MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO43025-16.384-T-TR | ||||||
| Raltron | ||||||
| CO43025 系列 16.384 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装 振荡器 | ||||||
| 卷盘 | 20MHz | ±25ppm | 3.3V | -40°C to +85°C | ||
| CO43025-20.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO43025 系列 20 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装 扩展型 振荡器 | ||||||
| 卷盘 | 24.576MHz | ±25ppm | 3.3V | -10°C to +70°C | ||
| CO43025-24.576-T-TR | ||||||
| Raltron | ||||||
| CO43 Series 24.576 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 24.704MHz | ±25ppm | 3.3V | -40°C to +85°C | ||
| CO43025-24.704-EXT-T | ||||||
| Raltron | ||||||
| CO43 Series 24.704 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 25MHz | ±25ppm | 3.3V | -10°C to +70°C | ||
| CO43025-25.000-T-TR | ||||||
| Raltron | ||||||
| CO43 Series 25 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | ||||||
| CO43025-32.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 32 MHz 3.3 V ±25 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 25MHz | ±25ppm | 3.3V | -40°C to +85°C | ||
| CO43025S-25.000-EXT-TR | ||||||
| Raltron | ||||||
| CO43025 系列 25 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装 扩展型 振荡器 | ||||||
| 卷盘 | 27MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO43025S-27.000-T-TR- L30 | ||||||
| Raltron | ||||||
| CO43 Series 27 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 1.8432MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO4305-1.8432MHZ-T | ||||||
| Raltron | ||||||
| CO43 Series 1.8432 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 10MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-10.000-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 10 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 11.0592MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-11.0592MHZ-T | ||||||
| Raltron | ||||||
| CO4 Series 11.0592 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 剪切卷带 | 11.2896MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-11.2896-EXT-T-TR | ||||||
| Raltron | ||||||
| CO43 Series 11.2896 MHz ±50 ppm -40 to +85°C Tight Symmetry SMT Clock Oscillator | ||||||
| 卷盘 | 16MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-16.000-EXT-TR | ||||||
| Raltron | ||||||
| C043 系列 16 MHz ± 50 ppm 7 x 5 mm 3.3 V 表面贴装 有源贴片晶振 | ||||||
| 卷盘 | 2.048MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-2.048-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 2.048 MHz 7 x 5 mm 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 20MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-20.000-T-TR | ||||||
| Raltron | ||||||
| CO43系列20 MHz 7 x 5 mm 3.3 V ±50 ppm表面贴装时钟振荡器 | ||||||
| 卷盘 | 22.118MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-22.118-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 22.118 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 22.118MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-22.118M-EXT | ||||||
| Raltron | ||||||
| CO43 系列 22.118 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 24MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-24.000-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 24 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 24MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-24.000-TR | ||||||
| Raltron | ||||||
| CO43 系列 24 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 24.576MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-24.576-EXT-T-T | ||||||
| Raltron | ||||||
| CO4 Series 24.576 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 24.576MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-24.576-EXT-TR-L30 | ||||||
| Raltron | ||||||
| CO43 Series 24.576 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 25MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-25.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 25 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator |
