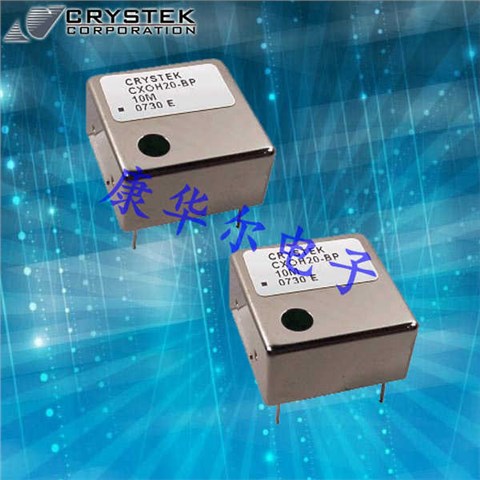

Crystek晶振\CXOH20-BP-10.000\6G模块晶振\TCXO振荡器，尺寸为20.00mmx20.00mm,频率为10MHZ，有源晶振，欧美进口晶振，温补晶振，石英晶体振荡器，OSC振荡器，低电压晶振，高性能晶振，测试设备专用晶振，射频源应用晶振，网络设备晶振，无线模块晶振，可视化智能家居晶振，通讯产品专用晶振，大尺寸晶振，低抖动晶振.
有源晶振产品主要应用范围：测试设备，射频源，仪器设备，无线网络，6G模块等领域。Crystek晶振\CXOH20-BP-10.000\6G模块晶振\TCXO振荡器.

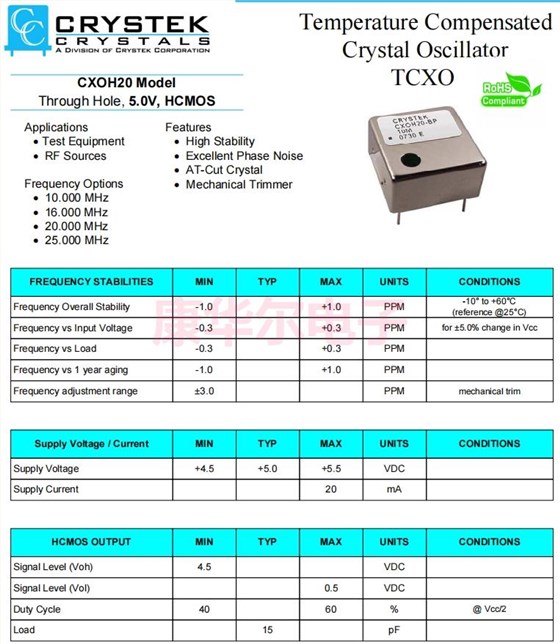

Crystek晶振\CXOH20-BP-10.000\6G模块晶振\TCXO振荡器参数表
| FREQUENCYSTABILITIES | MIN | TYP | MAX | UNITS | CONDITIONS | ||||||||||||
| Frequency Overall Stability | - 1.0 | +1.0 | PPM |
- 10° to +60°C (reference @25°C) |
|||||||||||||
| Frequency vs Input Voltage | --0.3 | +0.3 | PPM | for ±5.0% change in Vcc | |||||||||||||
| Frequency vs Load | --0.3 | +0.3 | PPM | ||||||||||||||
| Frequency vs 1 year aging | - 1.0 | +1.0 | PPM | ||||||||||||||
| Frequency adjustment range | ±3.0 | PPM | mechanical trim | ||||||||||||||
| SupplyVoltage/Current | MIN | TYP | MAX | UNITS | CONDITIONS | ||||||||||||
| Supply Voltage | +4.5 | +5.0 | +5.5 | VDC | |||||||||||||
| Supply Current | 20 | mA | |||||||||||||||
| HCMOSOUTPUT | MIN | TYP | MAX | UNITS | CONDITIONS | ||||||||||||
| Signal Level (Voh) | 4.5 | VDC | |||||||||||||||
| Signal Level (Vol) | 0.5 | VDC | |||||||||||||||
| Duty Cycle | 40 | 60 | % | @ Vcc/2 | |||||||||||||
| Load | 15 | pF | |||||||||||||||

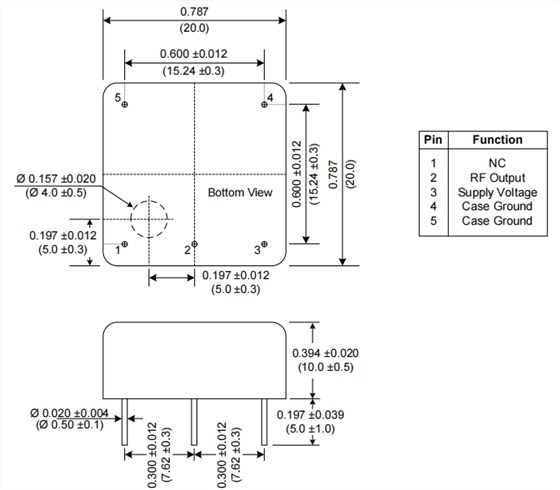

Crystek晶振\CXOH20-BP-10.000\6G模块晶振\TCXO振荡器 尺寸图
晶体振荡器产品特性：
高稳定性
出色的相位噪声
切晶体
机械微调
更多相关CRYSTEK瑞斯克晶振型号
| Manufacturer Part Number原厂代码 | 晶振厂家 | Series型号 | Part Status | Type 类型 | Frequency 频率 | Frequency Stability频率稳定度 | Operating Temperature工作温度 |
| CVSS-945X-100.000 | Crystek Corporation | CVSS-945 | Active | VCXO | 100MHz | - | -40°C ~ 85°C |
| CVSS-945-100.000 | Crystek Corporation | CVSS-945 | Active | VCXO | 100MHz | - | 0°C ~ 70°C |
| CCSO-914X-250.000 | Crystek Corporation | CCSO | Active | SO (SAW) | 250MHz | ±100ppm | -40°C ~ 85°C |
| CXOH20-BP-10.000 | Crystek Corporation | CXOH20 | Active | TCXO | 10MHz | ±1ppm | -10°C ~ 60°C |
| CCSO-014-1090.000 | Crystek Corporation | CCSO | Active | SO (SAW) | 1.09GHz | ±250ppm | -55°C ~ 105°C |
| CVSS-945-50.000 | Crystek Corporation | CVSS-945 | Active | VCXO | 50MHz | - | 0°C ~ 70°C |
| CVSS-945-80.000 | Crystek Corporation | CVSS-945 | Active | VCXO | 80MHz | - | 0°C ~ 70°C |
| CVHD-952-148.500 | Crystek Corporation | CVHD-952 | Active | VCXO | 148.5MHz | - | 0°C ~ 70°C |
| CVSS-945-122.880 | Crystek Corporation | CVSS-945 | Active | VCXO | 122.88MHz | - | 0°C ~ 70°C |
| CVCSO-914-245.760 | Crystek Corporation | CVCSO-914 | Active | VCSO (SAW) | 245.76MHz | ±200ppm | -20°C ~ 70°C |
| CRBSCS-01-80.000 | Crystek Corporation | CRBSCS, RedBox | Active | RF Clock Source | 80MHz | ±25ppm | -40°C ~ 85°C |
| CRBSCS-01-250.000 | Crystek Corporation | CRBSCS, RedBox | Active | RF Clock Source | 250MHz | ±150ppm | -40°C ~ 85°C |
| CRBSCS-01-1000.000 | Crystek Corporation | CRBSCS, RedBox | Active | RF Clock Source | 1GHz | ±150ppm | -40°C ~ 85°C |
| CCO-083-100.000 | Crystek Corporation | CCO | Active | XO (Standard) | 100MHz | ±25ppm | 0°C ~ 70°C |
| CCSO-914X-245.760 | Crystek Corporation | CCSO | Active | SO (SAW) | 245.76MHz | ±150ppm | -40°C ~ 85°C |
| CVHD-952-153.600 | Crystek Corporation | CVHD-952 | Active | VCXO | 153.6MHz | - | 0°C ~ 70°C |
| CVSS-945-125.000 | Crystek Corporation | CVSS-945 | Active | VCXO | 125MHz | - | 0°C ~ 70°C |
| CRBSCS-01-100.000 | Crystek Corporation | CRBSCS, RedBox | Active | RF Clock Source | 100MHz | ±150ppm | -40°C ~ 85°C |
| CRBSCS-01-125.000 | Crystek Corporation | CRBSCS, RedBox | Active | RF Clock Source | 125MHz | ±25ppm | -40°C ~ 85°C |
| CRBSCS-01-50.000 | Crystek Corporation | CRBSCS, RedBox | Active | RF Clock Source | 50MHz | ±25ppm | -40°C ~ 85°C |
| CRBSCS-01-245.760 | Crystek Corporation | CRBSCS, RedBox | Active | RF Clock Source | 245.76MHz | ±150ppm | -40°C ~ 85°C |
| CCO-083-16.000 | Crystek Corporation | CCO | Active | XO (Standard) | 16MHz | ±25ppm | 0°C ~ 70°C |
| CVHD-952-148.3516 | Crystek Corporation | CVHD-952 | Active | VCXO | 148.3516MHz | - | 0°C ~ 70°C |
| CCO-083-200.000 | Crystek Corporation | CCO | Active | XO (Standard) | 200MHz | ±25ppm | 0°C ~ 70°C |
| CRBSCS-01-1244.160 | Crystek Corporation | CRBSCS, RedBox | Active | RF Clock Source | 1.24416GHz | ±150ppm | -40°C ~ 85°C |
| CO27VH15DE-02-10.000 | Crystek Corporation | CO27 | Obsolete | OCXO | 10MHz | ±200ppb | -20°C ~ 80°C |
| CO27VS12DE-02-10.000 | Crystek Corporation | CO27 | Obsolete | OCXO | 10MHz | ±200ppb | -20°C ~ 80°C |
| CO27VS05DE-02-10.000 | Crystek Corporation | CO27 | Obsolete | OCXO | 10MHz | ±200ppb | -20°C ~ 80°C |
