FMI薄型晶体,FMXMC2S16HDC-32.000000M-CM,3225mm,32MHZ

FMI薄型晶体,FMXMC2S16HDC-32.000000M-CM,3225mm,32MHZ,FMI石英晶振,欧美进口晶振,无源贴片晶振,轻薄型晶振,3225mm无源晶振,水晶振动子,石英晶体谐振器,石英贴片晶振,尺寸3.2x2.5mm,频率32MHZ,负载16pF,高可靠晶振,高性能晶振,低成本晶振,移动通信晶振,平板电脑晶振,数字视频晶振,照相机晶振,智能穿戴晶振.

FMI薄型晶体,FMXMC2S16HDC-32.000000M-CM,3225mm,32MHZ特点:

表面贴装陶瓷组件。

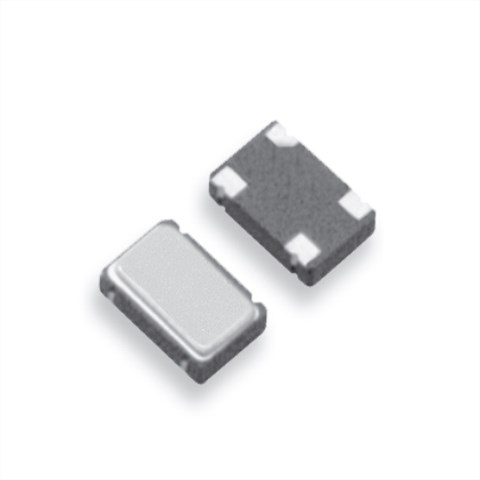

Micro 3.2x2.5/超薄石英晶振

高可靠性

紧密稳定性

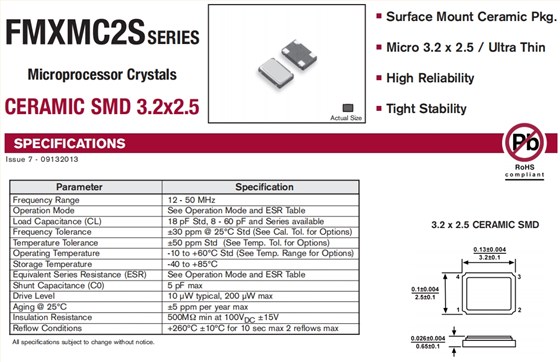

FMI薄型晶体,FMXMC2S16HDC-32.000000M-CM,3225mm,32MHZ 参数表

Parameter								Specification
Frequency Range								30 MHz

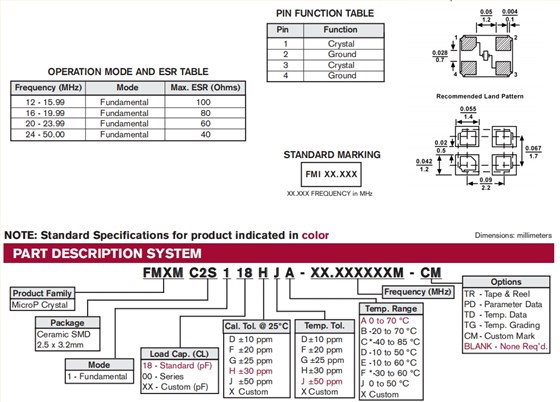

Operation Mode								See Operation Mode and ESR Table
Load Capacitance (CL)								18 pF Std, 8 - 60 pF and Series available
Frequency Tolerance								±30 ppm @ 25°C Std (See Cal. Tol. for Options)
Temperature Tolerance								±50 ppm Std(See Temp. Tol. for Options)
Operating Temperature								-10 to +60°C Std (See Temp. Range for Options)
Storage Temperature								-40 to +85°C
Equivalent Series Resistance (ESR)								See Operation Mode and ESR Table
Shunt Capacitance (C0)								5 pF max
Drive Level								10 µWtypical, 200 µW max
Aging @ 25°C								±5 ppm per year max
Insulation Resistance								500MΩ min at 100VDC±15V
Reflow Conditions								+260ºC ±10ºC for 10 sec max 2 reflows max

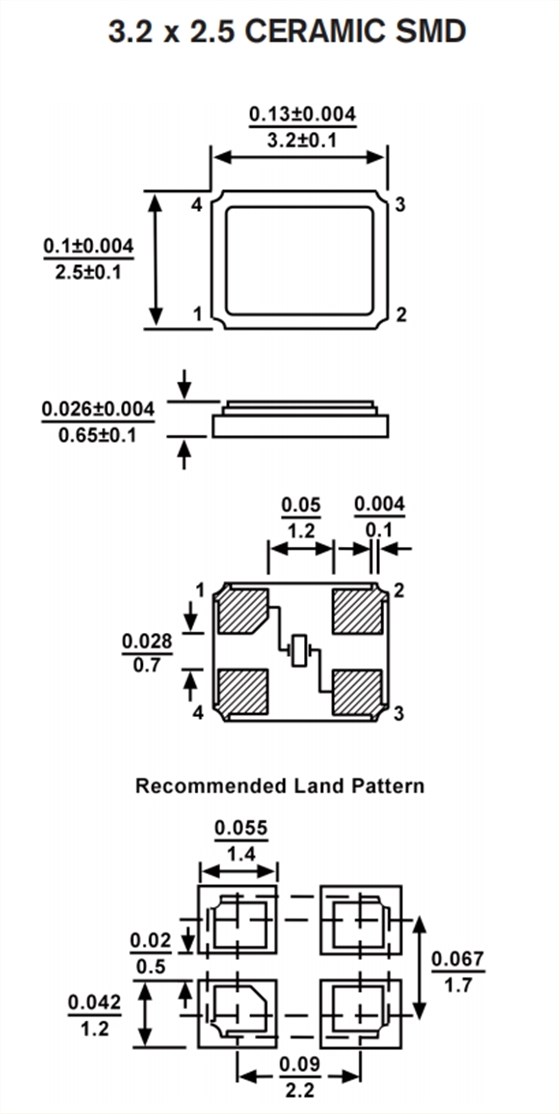

FMI薄型晶体,FMXMC2S16HDC-32.000000M-CM,3225mm,32MHZ 尺寸图
