NX3215SD音叉晶体,NDK车载设备晶振,NX3215SD-32.768KHZ-STD-MUS-5，尺寸3.2x1.5mm，频率32.768KHZ，日本进口晶振，日本电波晶体，无源贴片晶振，SMD晶振，无源晶振，32.768K时钟晶振，两脚贴片晶振，3215mm无源晶振，SMD晶体谐振器，水晶振动子，音叉晶体，轻薄型晶振，绿色环保晶振，32.768KHZ无源晶振，车载设备晶振，智能手表晶振，时钟应用晶振，汽车电子晶振，无线设备晶振，低损耗晶振，低耗能晶振，低功耗晶振，具有良好可靠性能。
晶体音叉晶振产品被广泛应用于车载设备，智能手表，时钟应用，汽车电子，无线设备等应用领域。NX3215SD音叉晶体,NDK车载设备晶振,NX3215SD-32.768KHZ-STD-MUS-5.
NX3215SD音叉晶体,NDK车载设备晶振,NX3215SD-32.768KHZ-STD-MUS-5 参数表
| Parameters | SYM. | ElectricalSpec. | Notes | |||||||||||||||||||||||||||||||||||
| min | typ | max | Units | |||||||||||||||||||||||||||||||||||
| Nominal frequency | fnom | 32.768 | kHz | --- | ||||||||||||||||||||||||||||||||||
| Overtone order | - | Fundamental | - | --- | ||||||||||||||||||||||||||||||||||
| Load Capacitance | CL | - | Table1 | - | pF | Network analyzer | ||||||||||||||||||||||||||||||||
| Frequency tolerance | - | -20 | - | +20 | ×10-6 | @ +25°C (Not include aging) | ||||||||||||||||||||||||||||||||
| Turnover temperature | - | +20 | - | +30 | °C | --- | ||||||||||||||||||||||||||||||||
| Parabolic coefficient | - | - | - | -0.04 | ppm/。C2 | --- | ||||||||||||||||||||||||||||||||
| Operating temp. range | Topr | -40 | - | +125 | °C | --- | ||||||||||||||||||||||||||||||||
| Storage temp. range | Tstr | -40 | - | +125 | °C | --- | ||||||||||||||||||||||||||||||||
| Level of drive | - | - | 0.1 | 0.5 | µW | --- | ||||||||||||||||||||||||||||||||
| Equivalent resistance | Rr | - | - | 80 | kΩ | Network analyzer / Series | ||||||||||||||||||||||||||||||||
| Insulation resistance | - | 500 | - | - | M? |
When terminal to terminal were applied at DC100V ±15V. |
||||||||||||||||||||||||||||||||
| Air-tightness | - | - | - | 1.1×10-9 | Pa m3/s | --- | ||||||||||||||||||||||||||||||||

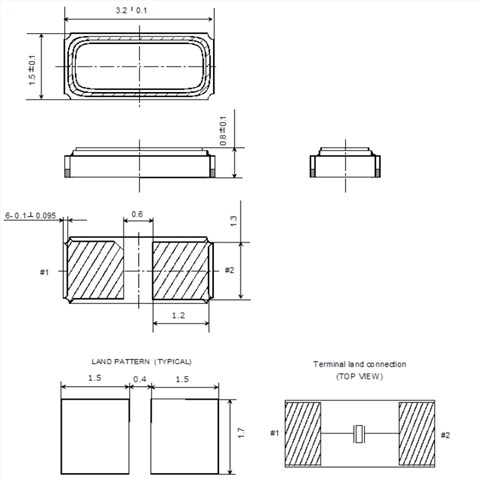

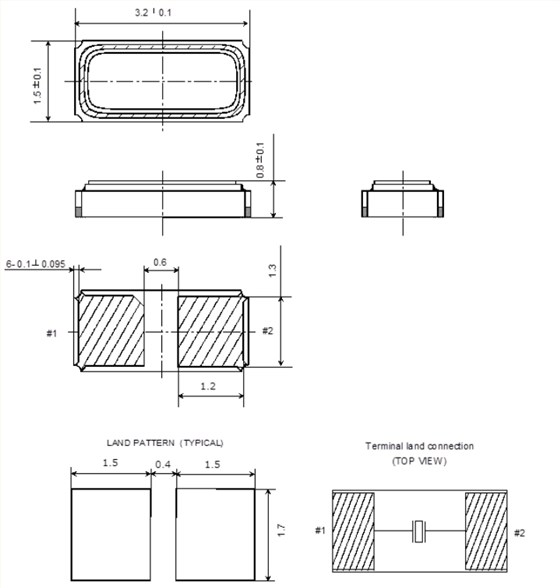

NX3215SD音叉晶体,NDK车载设备晶振,NX3215SD-32.768KHZ-STD-MUS-5 尺寸图

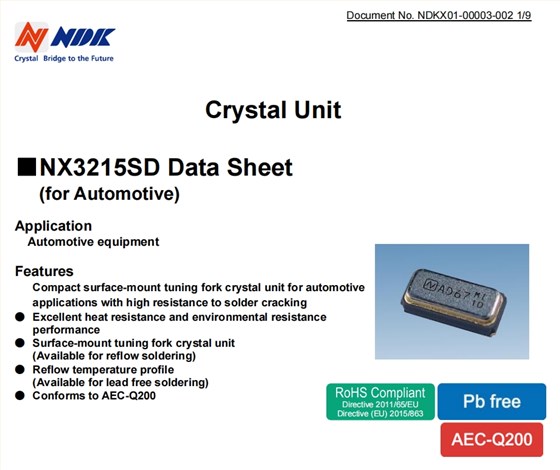

NX3215SD音叉晶体,NDK车载设备晶振,NX3215SD-32.768KHZ-STD-MUS-5
32.768K晶振产品特点：
紧凑型汽车表面安装音叉晶体单元
具有高阻焊裂性的应用
优异的耐热性和耐环境性
表面安装音叉晶体单元（可用于回流焊）
回流温度曲线（可用于无铅焊接）
符合AEC-Q200
| Model | Nominal frequency[kHz] | Specification number | 日本进口晶振 | Package size(LxW)[mm] | Package size(H)[mm] | Operating temperature rang[℃] |
| NX1610SA | 32.768 | STD-MUD-1 | NDK无源晶振 | 1.6×1.0 | 0.45 | -40~+85 |
| NX1610SA | 32.768 | STD-MUD-2 | NDK无源晶振 | 1.6×1.0 | 0.45 | -40~+85 |
| NX1610SA | 32.768 | STD-MUD-3 | NDK无源晶振 | 1.6×1.0 | 0.45 | -40~+85 |
| NX1610SE | 32.768 | STD-MUD-4 | NDK无源晶振 | 1.6×1.0 | 0.45 | -40~+85 |
| NX1610SE | 32.768 | STD-MUD-5 | NDK无源晶振 | 1.6×1.0 | 0.45 | -40~+85 |
| NX1610SE | 32.768 | STD-MUD-6 | NDK无源晶振 | 1.6×1.0 | 0.45 | -40~+85 |
| NX2012SA | 32.768 | STD-MUB-1 | NDK无源晶振 | 2.0×1.2 | 0.55 | -40~+85 |
| NX2012SA | 32.768 | STD-MUB-2 | NDK无源晶振 | 2.0×1.2 | 0.55 | -40~+85 |
| NX2012SA | 32.768 | STD-MUB-3 | NDK无源晶振 | 2.0×1.2 | 0.55 | -40~+85 |
| NX2012SE | 32.768 | STD-MUB-8 | NDK无源晶振 | 2.0×1.2 | 0.55 | -40~+85 |
| NX2012SE | 32.768 | STD-MUB-9 | NDK无源晶振 | 2.0×1.2 | 0.55 | -40~+85 |
| NX2012SE | 32.768 | STD-MUB-10 | NDK无源晶振 | 2.0×1.2 | 0.55 | -40~+85 |
| NX2012SA | 32.768 | STD-MUT-1 | NDK无源晶振 | 2.0×1.2 | 0.55 | -40~+125 |
| NX2012SA | 32.768 | STD-MUT-2 | NDK无源晶振 | 2.0×1.2 | 0.55 | -40~+125 |
| NX2012SA | 32.768 | STD-MUT-3 | NDK无源晶振 | 2.0×1.2 | 0.55 | -40~+125 |
| NX2012SF | 32.768 | STD-MUP-11 | NDK无源晶振 | 2.0×1.2 | 0.55 | -40~+125 |
| NX2012SF | 32.768 | STD-MUP-12 | NDK无源晶振 | 2.0×1.2 | 0.55 | -40~+125 |
| NX2012SF | 32.768 | STD-MUP-13 | NDK无源晶振 | 2.0×1.2 | 0.55 | -40~+125 |
| NX3215SA | 32.768 | STD-MUA-8 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+85 |
| NX3215SA | 32.768 | STD-MUA-9 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+85 |
| NX3215SA | 32.768 | STD-MUA-14 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+85 |
| NX3215SE | 32.768 | STD-MUA-17 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+85 |
| NX3215SE | 32.768 | STD-MUA-18 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+85 |
| NX3215SE | 32.768 | STD-MUA-19 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+85 |
| NX3215SA | 32.768 | STD-MUS-2 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SA | 32.768 | STD-MUS-3 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SA | 32.768 | STD-MUS-4 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SD | 32.768 | STD-MUS-5 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SD | 32.768 | STD-MUS-6 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SD | 32.768 | STD-MUS-7 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SF | 32.768 | STD-MUP-1 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SF | 32.768 | STD-MUP-2 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SF | 32.768 | STD-MUP-3 | NDK无源晶振 | 3.2×1.5 | 0.8 | -40~+125 |
