NZ2520SDA-48MHz-NSC5083A,NZ2520SDA数字音频晶振,NDK高质量振荡器

NZ2520SDA-48MHz-NSC5083A,NZ2520SDA数字音频晶振,NDK高质量振荡器NZ2520SDA-48MHz-NSC5083A,NZ2520SDA数字音频晶振,NDK高质量振荡器

产品简介

NZ2520SDA-48MHz-NSC5083A,NZ2520SDA数字音频晶振,NDK高质量振荡器，尺寸2.5x2.0mm，频率48MHZ，进口有源晶振，日本电波晶振，石英有源晶振，OSC贴片晶振，时钟晶体振荡器，有源贴片晶振，SPXO振荡器，2520mm有源晶振，高品质有源晶振，高质量有源晶振，低相位有源晶振，低相噪有源晶振，数字音频有源晶振，笔记本电脑有源晶振，平板电脑有源晶振，智能手机有源晶振，无线模块有源晶振，通信模块有源晶振，产品具有超低相位噪声的特点。

SPXO晶振产品非常适合用于高品质音频，智能手机，平板电脑，无线模块、笔记本电脑和DSC，通信模块等应用领域。NZ2520SDA-48MHz-NSC5083A,NZ2520SDA数字音频晶振,NDK高质量振荡器.

产品详情

1

NZ2520SDA-48MHz-NSC5083A,NZ2520SDA数字音频晶振,NDK高质量振荡器，尺寸2.5x2.0mm，频率48MHZ，进口有源晶振，日本电波晶振，石英有源晶振，OSC贴片晶振，时钟晶体振荡器，有源贴片晶振，SPXO振荡器，2520mm有源晶振，高品质有源晶振，高质量有源晶振，低相位有源晶振，低相噪有源晶振，数字音频有源晶振，笔记本电脑有源晶振，平板电脑有源晶振，智能手机有源晶振，无线模块有源晶振，通信模块有源晶振，产品具有超低相位噪声的特点。

SPXO晶振产品非常适合用于高品质音频，智能手机，平板电脑，无线模块、笔记本电脑和DSC，通信模块等应用领域。NZ2520SDA-48MHz-NSC5083A,NZ2520SDA数字音频晶振,NDK高质量振荡器.2

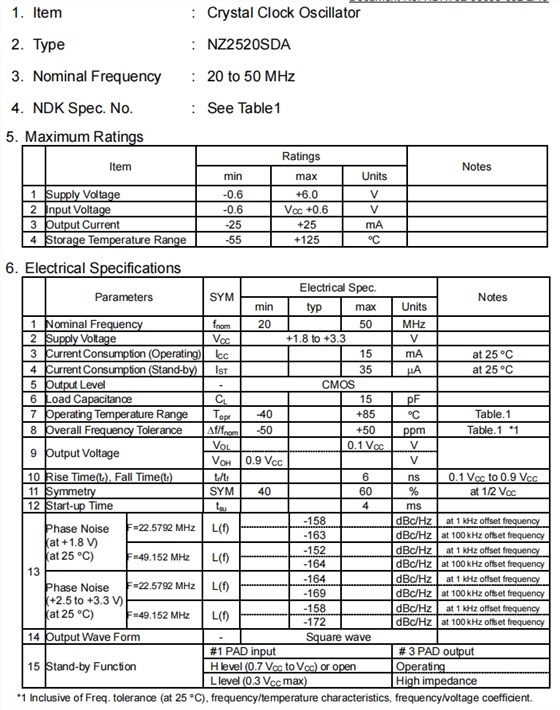

NZ2520SDA-48MHz-NSC5083A,NZ2520SDA数字音频晶振,NDK高质量振荡器 参数表

Item Ratings Notes
min max Units
Supply Voltage -0.6 +6.0 V
Input Voltage -0.6 VCC+0.6 V
Output Current -25 +25 mA
Storage Temperature Range -55 +125 。C
Parameters SYM Electrical Spec. Notes
min typ max Units
Nominal Frequency fnom
48
MHz
Supply Voltage VCC +1.8 to +3.3 V
Current Consumption (Operating) ICC 15 mA at 25。C
Current Consumption (Stand-by) IST 35 μA at 25。C
Output Level - CMOS
Load Capacitance CL 15 pF
Operating Temperature Range Topr -40 +85 。C Table.1
Overall Frequency Tolerance Δf/fnom -50 +50 ppm Table.1*1
Output Voltage VOL 0.1 VCC V
VOH 0.9 VCC V
Rise Time(tr), Fall Time(tf) tr/tf 6 ns 0.1 VCCto 0.9 VCC
Symmetry SYM 40 60 % at 1/2 VCC
Start-up Time tsu 4 ms
Phase Noise
(at +1.8 V)
(at 25。C) 		F=22.5792 MHz L(f) - 158 dBc/Hz at 1 kHz offset frequency
- 163 dBc/Hz at 100 kHz offset frequency
F=49.152 MHz L(f) - 152 dBc/Hz at 1 kHz offset frequency
- 164 dBc/Hz at 100 kHz offset frequency
Phase Noise
(+2.5 to +3.3 V)
(at 25。C) 		F=22.5792 MHz L(f) - 164 dBc/Hz at 1 kHz offset frequency
- 169 dBc/Hz at 100 kHz offset frequency
F=49.152 MHz L(f) - 158 dBc/Hz at 1 kHz offset frequency
- 172 dBc/Hz at 100 kHz offset frequency
Output Wave Form - Square wave
Stand-by Function #1 PAD input # 3 PAD output
H level (0.7 VCCto VCC) or open Operating
L level (0.3 VCCmax) High impedance
3

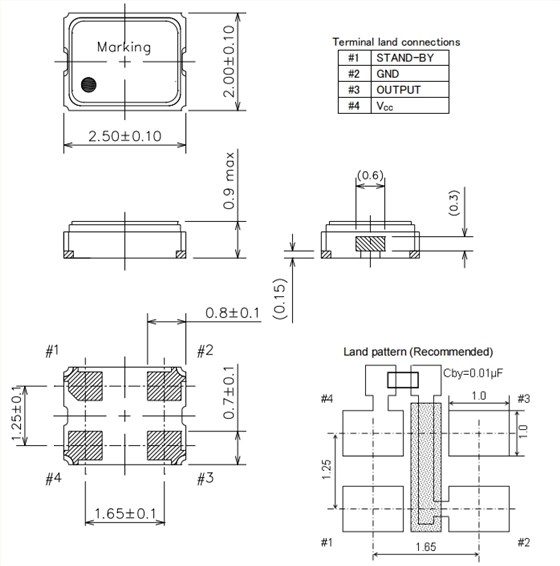

NZ2520SDA-48MHz-NSC5083A,NZ2520SDA数字音频晶振,NDK高质量振荡器 尺寸图

NZ2520SDA

NZ2520SDA-48MHz-NSC5083A,NZ2520SDA数字音频晶振,NDK高质量振荡器

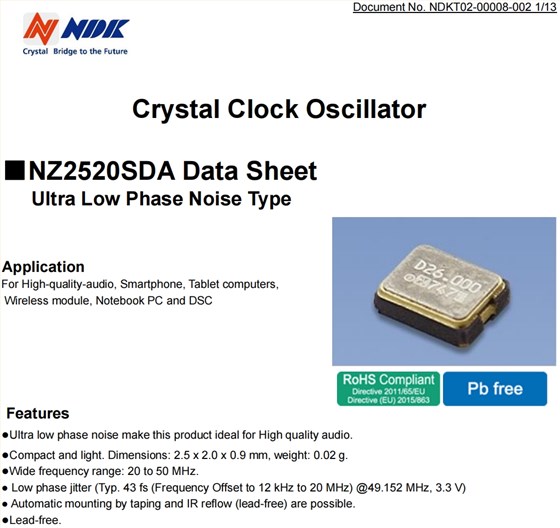

NDK振荡器产品特点：

超低相位噪声使该产品成为高质量音频的理想选择。

小巧轻便。尺寸：2.5 x 2.0 x 0.9毫米，重量：0.02克。

宽频率范围：20至50兆赫。

低相位抖动（典型43 fs（频率偏移到12 kHz到20 MHz）@49.152 MHz，3.3 V）

可以通过胶带和IR回流（无铅）进行自动安装。

无铅。

NZ2520SDA 1

NZ2520SDA 2

Model Nominal frequency[MHz] Specification number 日本进口晶振 Package size(LxW)[mm] Output specification Operating temperature rang[℃] Storage temperature range[℃]
NZ2520SEB 25MHZ NSC5283D NDK晶振 2.5x2.0 CMOS -20~+70 -55~+125
NZ2520SEB 26MHZ NSC5283D NDK晶振 2.5x2.0 CMOS -20~+70 -55~+125
NZ2520SEB 32MHZ NSC5283D NDK晶振 2.5x2.0 CMOS -20~+70 -55~+125
NZ2520SEB 8MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 12MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 12.288MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 15.625MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 16MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 24MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 25MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 26MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 32MHZ NSC5284A NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 8MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 12MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 12.288MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 15.625MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 16MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 24MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 25MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 26MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 32MHZ NSC5284B NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 8MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 12MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 12.288MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 15.625MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 16MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 24MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 25MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 26MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 32MHZ NSC5284C NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 8MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 12MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 12.288MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 15.625MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 16MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 24MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 25MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 26MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SEB 32MHZ NSC5284D NDK晶振 2.5x2.0 CMOS -10~+60 -55~+125
NZ2520SDA 22.5792MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 24MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 24.576MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 25MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 27MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 45.1584MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 48MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 49.152MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 50MHZ NSC5083A NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 22.5792MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 24MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 24.576MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 25MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 27MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 45.1584MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 48MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 49.152MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 50MHZ NSC5083B NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 22.5792MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 24MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 24.576MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 25MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 27MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 45.1584MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 48MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 49.152MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 50MHZ NSC5083C NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 22.5792MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 24MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 24.576MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 25MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 27MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 45.1584MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 48MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 49.152MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SDA 50MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 24MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 24.54MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 25MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 26MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 27MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 33MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 33.33MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 38.4MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 50MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 24MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 24.54MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 25MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 26MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 27MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 33MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 33.33MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 38.4MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 50MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
NZ2520SF 24MHZ NSA3469E NDK晶振 2.5x2.0 CMOS -40~+85 -55~+125
6
