NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器

NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器，尺寸2.5x2.0mm，频率32.768KHZ，输出逻辑CMOS，32.768KHZ有源晶振，2520mm有源晶振，时钟晶体振荡器，SMD振荡器，SPXO晶振，石英晶体振荡器，四脚有源晶振，CMOS输出晶振，摄像头专用有源晶振，汽车导航系统有源晶振，汽车音响专用晶振，仪器设备有源晶振，汽车氛围灯专用有源晶振，低电压有源晶振，低抖动有源晶振，低功耗有源晶振，低耗能有源晶振，高品质有源晶振，高性能有源晶振，具有低电压低抖动的特点。

有源贴片晶振产品可广泛应用各大应用领域，适用于汽车导航系统、汽车音响设备和摄像头，仪器设备，汽车氛围灯等应用场景。NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器.

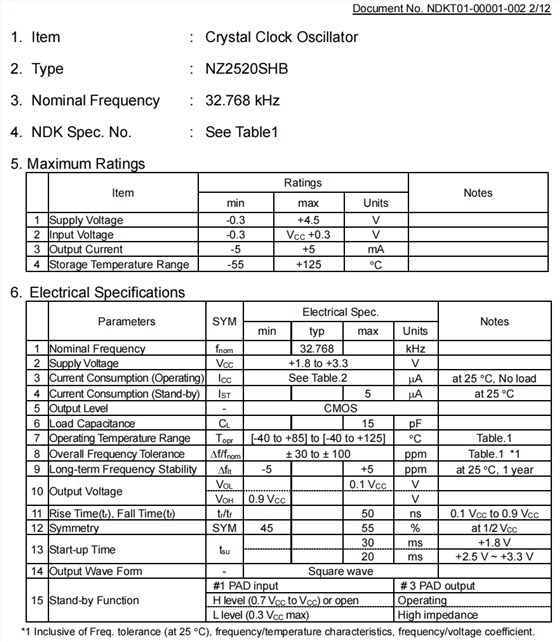

NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器 参数表

Item

Ratings

Notes

min

max

Units

Supply Voltage

-0.3

+4.5

Input Voltage

-0.3

VCC+0.3

Output Current

-5

Storage Temperature Range

-55

+125

。C

Parameters

SYM

Electrical Spec.

Notes

min

typ

max

Units

Nominal Frequency

fnom

32.768

kHz

Supply Voltage

VCC

+1.8 to +3.3

Current Consumption (Operating)

ICC

See Table.2

μA

at 25。C, No load

Current Consumption (Stand-by)

IST

μA

at 25。C

Output Level

CMOS

Load Capacitance

Operating Temperature Range

Topr

[-40 to +85] to [-40 to +125]

。C

Table.1

Overall Frequency Tolerance

Δf/fnom

± 30 to ± 100

ppm

Table.1* 1

Long-term Frequency Stability

Δflt

-5

ppm

at 25。C, 1 year

Output Voltage

VOL

0.1 VCC

VOH

0.9 VCC

Rise Time(tr), Fall Time(tf)

tr/tf

0.1 VCCto 0.9 VCC

Symmetry

SYM

at 1/2 VCC

Start-up Time

tsu

+1.8 V

+2.5 V ~ +3.3 V

Output Wave Form

Square wave

Stand-by Function

#1 PAD input

# 3 PAD output

H level (0.7 VCCto VCC) or open

Operating

L level (0.3 VCCmax)

High impedance

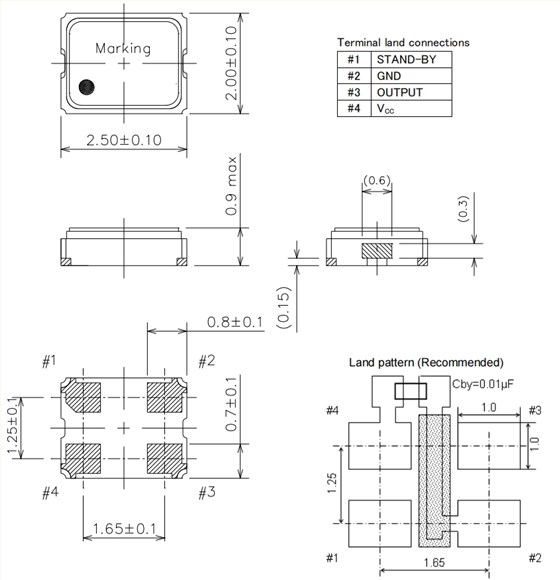

NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器 尺寸图

NZ2520SHB摄像头有源晶振,NZ2520SHB-0.032768MHZ-NSC5135B,NDK32.768K振荡器

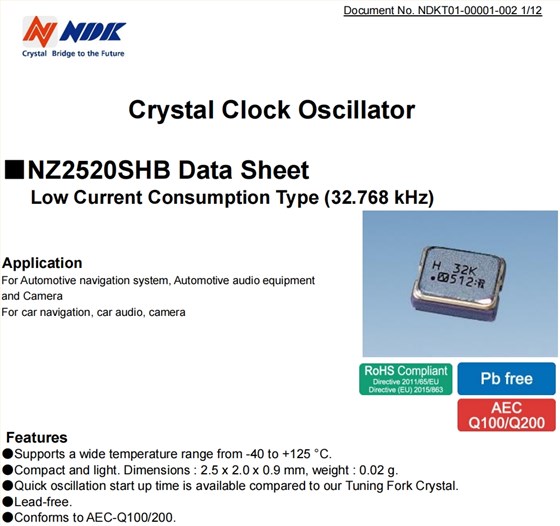

NDK振荡器产品特点：

支持-40至+125°C的宽温度范围。

小巧轻便。尺寸：2.5 x 2.0 x 0.9毫米，重量：0.02克。

与我们的音叉水晶相比，可提供快速振荡启动时间。

无铅。

符合AEC-Q100/200。

Model	Nominal frequency[MHz]	Specification number	Manufacturer	Package size(LxW)[mm]	Output specification	Operating temperature rang[℃]
NP3225SCA	125MHZ	NSC5392B	NDK晶振	3.2x2.5	HCSL	-40~+105
NP3225SCA	156.25MHZ	NSC5392B	NDK晶振	3.2x2.5	HCSL	-40~+105
NZ1612SHB	0.032768MHZ	NSC5154A	NDK晶振	1.6x1.2	CMOS	-40~+125
NZ1612SHB	0.032768MHZ	NSC5154B	NDK晶振	1.6x1.2	CMOS	-40~+125
NZ1612SHB	0.032768MHZ	NSC5154C	NDK晶振	1.6x1.2	CMOS	-40~+125
NZ1612SHB	0.032768MHZ	NSC5154D	NDK晶振	1.6x1.2	CMOS	-40~+125
NZ1612SHB	0.032768MHZ	NSC5153A	NDK晶振	1.6x1.2	CMOS	-40~+105
NZ1612SHB	0.032768MHZ	NSC5153B	NDK晶振	1.6x1.2	CMOS	-40~+105
NZ1612SHB	0.032768MHZ	NSC5153C	NDK晶振	1.6x1.2	CMOS	-40~+105
NZ1612SHB	0.032768MHZ	NSC5153D	NDK晶振	1.6x1.2	CMOS	-40~+105
NZ1612SHB	0.032768MHZ	NSC5102A	NDK晶振	1.6x1.2	CMOS	-40~+85
NZ1612SHB	0.032768MHZ	NSC5102B	NDK晶振	1.6x1.2	CMOS	-40~+85
NZ1612SHB	0.032768MHZ	NSC5102C	NDK晶振	1.6x1.2	CMOS	-40~+85
NZ1612SHB	0.032768MHZ	NSC5102D	NDK晶振	1.6x1.2	CMOS	-40~+85
NZ2016SHB	0.032768MHZ	NSC5132A	NDK晶振	2.0x1.6	CMOS	-40~+125
NZ2016SHB	0.032768MHZ	NSC5132B	NDK晶振	2.0x1.6	CMOS	-40~+125
NZ2016SHB	0.032768MHZ	NSC5132C	NDK晶振	2.0x1.6	CMOS	-40~+125
NZ2016SHB	0.032768MHZ	NSC5132D	NDK晶振	2.0x1.6	CMOS	-40~+125
NZ2016SHB	0.032768MHZ	NSC5133A	NDK晶振	2.0x1.6	CMOS	-40~+105
NZ2016SHB	0.032768MHZ	NSC5133B	NDK晶振	2.0x1.6	CMOS	-40~+105
NZ2016SHB	0.032768MHZ	NSC5133C	NDK晶振	2.0x1.6	CMOS	-40~+105
NZ2016SHB	0.032768MHZ	NSC5133D	NDK晶振	2.0x1.6	CMOS	-40~+105
NZ2016SHB	0.032768MHZ	NSC5134A	NDK晶振	2.0x1.6	CMOS	-40~+85
NZ2016SHB	0.032768MHZ	NSC5134B	NDK晶振	2.0x1.6	CMOS	-40~+85
NZ2016SHB	0.032768MHZ	NSC5134C	NDK晶振	2.0x1.6	CMOS	-40~+85
NZ2016SHB	0.032768MHZ	NSC5134D	NDK晶振	2.0x1.6	CMOS	-40~+85
NZ2520SHB	0.032768MHZ	NSC5135A	NDK晶振	2.5x2.0	CMOS	-40~+125
NZ2520SHB	0.032768MHZ	NSC5135B	NDK晶振	2.5x2.0	CMOS	-40~+125
NZ2520SHB	0.032768MHZ	NSC5135C	NDK晶振	2.5x2.0	CMOS	-40~+125
NZ2520SHB	0.032768MHZ	NSC5135D	NDK晶振	2.5x2.0	CMOS	-40~+125
NZ2520SHB	0.032768MHZ	NSC5136A	NDK晶振	2.5x2.0	CMOS	-40~+105
NZ2520SHB	0.032768MHZ	NSC5136B	NDK晶振	2.5x2.0	CMOS	-40~+105
NZ2520SHB	0.032768MHZ	NSC5136C	日本NDK晶振	2.5x2.0	CMOS	-40~+105
NZ2520SHB	0.032768MHZ	NSC5136D	NDK晶振	2.5x2.0	CMOS	-40~+105
NZ2520SHB	0.032768MHZ	NSC5137A	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SHB	0.032768MHZ	NSC5137B	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SHB	0.032768MHZ	NSC5137C	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SHB	0.032768MHZ	NSC5137D	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SHB	0.032768MHZ	NSC5308A	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SHB	0.032768MHZ	NSC5308B	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SHB	0.032768MHZ	NSC5308C	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SHB	0.032768MHZ	NSC5308D	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2016SHA	0.032768MHZ	NSC5297A	NDK晶振	2.0x1.6	CMOS	-40~+125
NZ2016SHA	0.032768MHZ	NSC5297B	NDK晶振	2.0x1.6	CMOS	-40~+125
NZ2016SHA	0.032768MHZ	NSC5297C	NDK晶振	2.0x1.6	CMOS	-40~+125
NZ2016SHA	0.032768MHZ	NSC5297D	NDK晶振	2.0x1.6	CMOS	-40~+125
NZ2016SHA	0.032768MHZ	NSC5298A	NDK晶振	2.0x1.6	CMOS	-40~+105
NZ2016SHA	0.032768MHZ	NSC5298B	NDK晶振	2.0x1.6	CMOS	-40~+105
NZ2016SHA	0.032768MHZ	NSC5298C	NDK晶振	2.0x1.6	CMOS	-40~+105
NZ2016SHA	0.032768MHZ	NSC5298D	NDK晶振	2.0x1.6	CMOS	-40~+105
NZ2016SHA	0.032768MHZ	NSC5299A	NDK晶振	2.0x1.6	CMOS	-40~+85
NZ2016SHA	0.032768MHZ	NSC5299B	NDK晶振	2.0x1.6	CMOS	-40~+85
NZ2016SHA	0.032768MHZ	NSC5299C	NDK晶振	2.0x1.6	CMOS	-40~+85
NZ2016SHA	0.032768MHZ	NSC5299D	NDK晶振	2.0x1.6	CMOS	-40~+85
NZ2520SHA	0.032768MHZ	NSC5271A	NDK晶振	2.5x2.0	CMOS	-40~+125
NZ2520SHA	0.032768MHZ	NSC5271B	NDK晶振	2.5x2.0	CMOS	-40~+125
NZ2520SHA	0.032768MHZ	NSC5271C	NDK晶振	2.5x2.0	CMOS	-40~+125
NZ2520SHA	0.032768MHZ	NSC5271D	NDK晶振	2.5x2.0	CMOS	-40~+125
NZ2520SHA	0.032768MHZ	NSC5272A	NDK晶振	2.5x2.0	CMOS	-40~+105
NZ2520SHA	0.032768MHZ	NSC5272B	NDK晶振	2.5x2.0	CMOS	-40~+105
NZ2520SHA	0.032768MHZ	NSC5272C	NDK晶振	2.5x2.0	CMOS	-40~+105
NZ2520SHA	0.032768MHZ	NSC5272D	NDK晶振	2.5x2.0	CMOS	-40~+105
NZ2520SHA	0.032768MHZ	NSC5273A	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SHA	0.032768MHZ	NSC5273B	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SHA	0.032768MHZ	NSC5273C	NDK晶振	2.5x2.0	CMOS	-40~+85
NZ2520SHA	0.032768MHZ	NSC5273D	NDK晶振	2.5x2.0	CMOS	-40~+85
