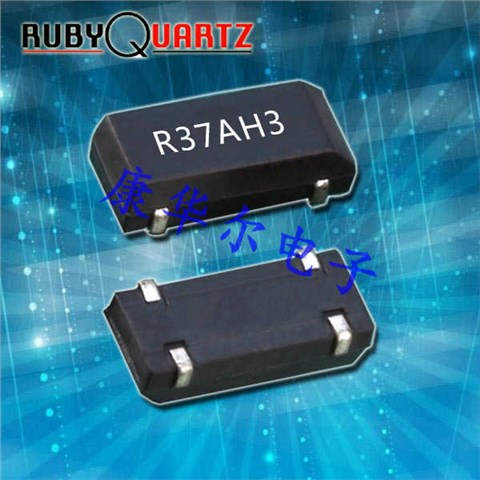

Rubyquartz时钟晶振,8038mm晶体,RSM-200S-32.768-12.5-TR,32.768KHZ,美国卢柏晶振,美国进口晶振,无源贴片晶振,32.768KHZ无源晶振,四脚贴片晶振,陶瓷晶振,无源晶振,SMD晶振,8038陶瓷面晶振,尺寸8.0x3.8mm,频率32.768KHZ,负载12.5pF,高性能晶振,低损耗晶振,低耗能晶振,时钟应用晶振,智能水电晶振,蓝牙耳机晶振,无线晶振.
Rubyquartz时钟晶振,8038mm晶体,RSM-200S-32.768-12.5-TR,32.768KHZ特点:
适用于昼夜时钟
小巧紧凑的包装
非常适合拾取和放置组件

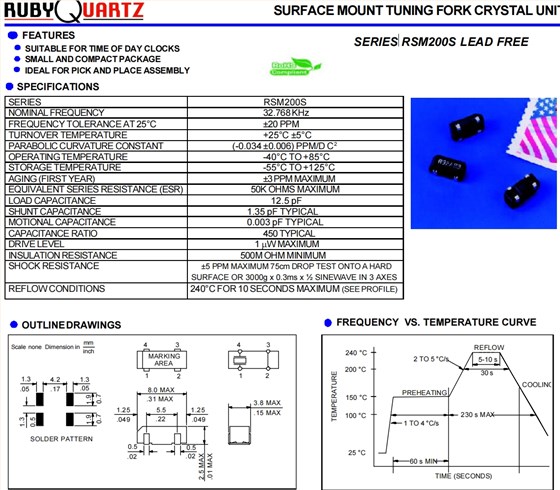

Rubyquartz时钟晶振,8038mm晶体,RSM-200S-32.768-12.5-TR,32.768KHZ 参数表
| SERIES | RSM200S | ||||||||||||||||||||||||
| NOMINAL FREQUENCY | 32.768 KHz | ||||||||||||||||||||||||
| FREQUENCY TOLERANCE AT 25°C | ±20 PPM | ||||||||||||||||||||||||
| TURNOVER TEMPERATURE | +25°C ±5°C | ||||||||||||||||||||||||
| PARABOLIC CURVATURE CONSTANT | (-0.034 ±0.006) PPM/DC2 | ||||||||||||||||||||||||
| OPERATINGTEMPERATURE | -40°C TO +85°C | ||||||||||||||||||||||||
| STORAGE TEMPERATURE | -55°C TO +125°C | ||||||||||||||||||||||||
| AGING (FIRST YEAR) | ±3 PPM MAXIMUM | ||||||||||||||||||||||||
| EQUIVALENT SERIES RESISTANCE (ESR) | 50K OHMS MAXIMUM | ||||||||||||||||||||||||
| LOAD CAPACITANCE | 12.5 pF | ||||||||||||||||||||||||
| SHUNT CAPACITANCE | 1.35 pF TYPICAL | ||||||||||||||||||||||||
| MOTIONAL CAPACITANCE | 0.003 pF TYPICAL | ||||||||||||||||||||||||
| CAPACITANCE RATIO | 450 TYPICAL | ||||||||||||||||||||||||
| DRIVE LEVEL | 1μW MAXIMUM | ||||||||||||||||||||||||
| INSULATION RESISTANCE | 500MOHM MINIMUM | ||||||||||||||||||||||||
| SHOCK RESISTANCE |
±5 PPM MAXIMUM 75cm DROP TEST ONTO A HARD SURFACE OR 3000g x 0.3ms x ½ SINEWAVE IN 3 AXES |
||||||||||||||||||||||||

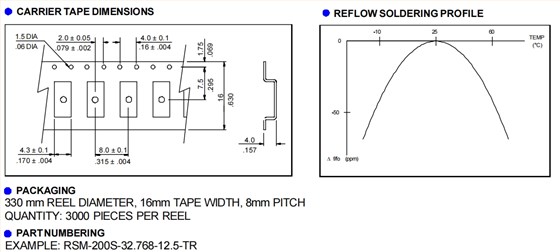

| REFLOW CONDITIONS | 240°C FOR 10 SECONDS MAXIMUM(SEE PROFILE) | ||||||||||||||||||||||||

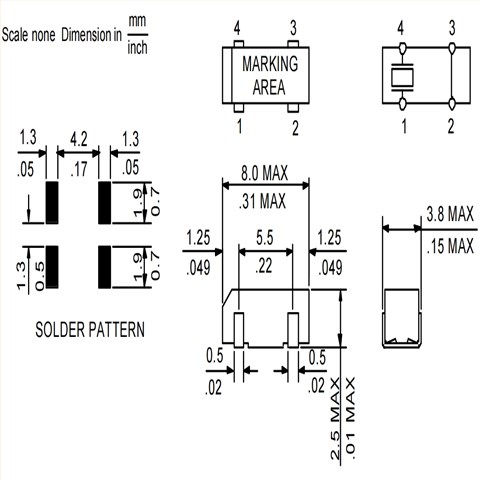

Rubyquartz时钟晶振,8038mm晶体,RSM-200S-32.768-12.5-TR,32.768KHZ 尺寸图
