嘉硕TST无源晶振,TZ0614A.5032mm视听设备晶振,10MHZ晶体,台湾嘉硕晶体,无源贴片晶振,石英晶体,四脚贴片晶振,水晶振动子,5032mm晶体谐振器,10MHZ石英晶振,TZ0614A晶振,轻薄型晶体,尺寸5.0x3.2mm,频率10MHZ,低损耗晶振,无铅晶振,高可靠晶振,通信设备晶振,无线应用晶振,视听设备晶振,蜂窝电话晶振,无线局域网晶振,蓝牙晶振.

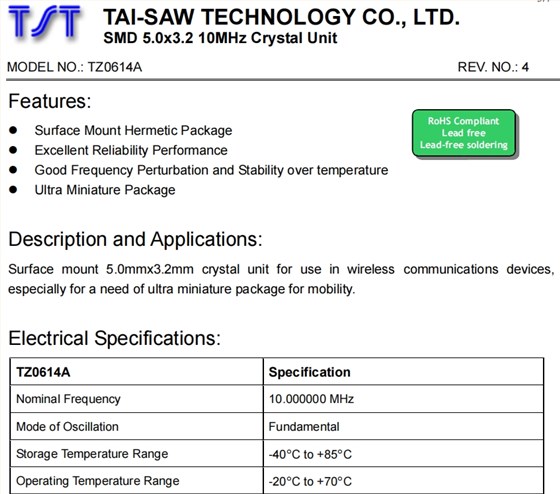

嘉硕TST无源晶振,TZ0614A.5032mm视听设备晶振,10MHZ晶体特点:
5032晶振表面安装密封包装
卓越的可靠性性能
良好的频率扰动和温度稳定性
超微型包

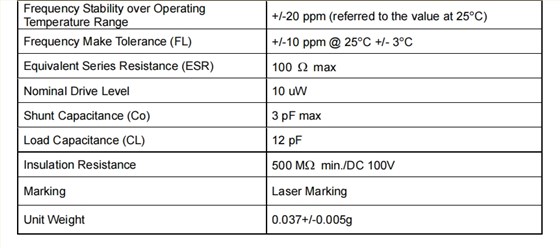

嘉硕TST无源晶振,TZ0614A.5032mm视听设备晶振,10MHZ晶体 参数表
| TZ0614A | Specification |
| NominalFrequency | 10.000MHZ |
| Mode of Operation | Fundamental |
| Storage TemperatureRange | -55°Cto+125°C |
| Operating TemperatureRange | -20°Cto+70°C |
|
Frequency Stability over Operating Temperature Range |
+/-20ppm(referrend to the value ai 25°C) |
| FrequencyMakeTolerance(FL) | +/-10 ppm@25°C+/-3°C |
| EquivalentSeriesResistor(ESR) | 100 Ωmax. |
| Nominal DriveLevel | 10uW |
| ShuntCapacitance(Co) | 3.0 pFmax |
| LoadCapacitance(CL) | 12.5pF |
| InsulationResistance | 500MΩmin atDC100V |
| Marking |
Lasermarking |

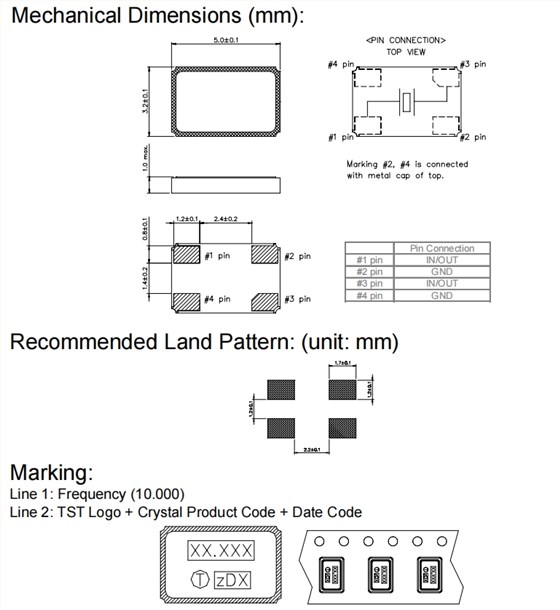

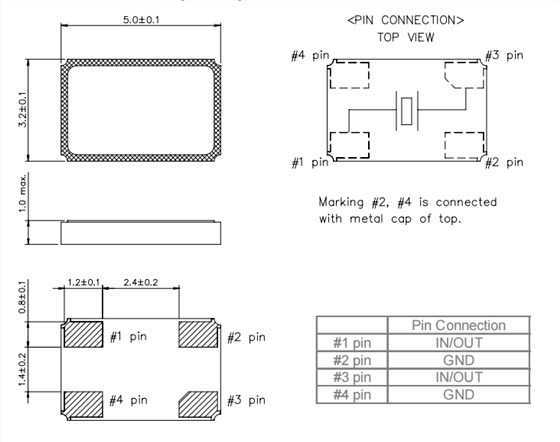

嘉硕TST无源晶振,TZ0614A.5032mm视听设备晶振,10MHZ晶体 尺寸图
