TST无源晶振,TZ1510A,3215mm贴片晶振,32.768KHZ实时时钟晶振

产品简介

TST无源晶振,TZ1510A,3215mm贴片晶振,32.768KHZ实时时钟晶振,台湾贴片谐振器,水晶振动子,3215mm音叉晶体,无源贴片晶振,SMD晶振,32.768K贴片晶振,无源晶振,小尺寸谐振器,尺寸3.2x1.5mm,频率32.768KHZ,高可靠晶振,高品质晶振,低损耗晶振,低功耗晶振,无线应用晶振,实时时钟晶振,智能电表晶振,数字显示晶振,蜡烛灯晶振,电话机晶振.

产品详情

TST无源晶振,TZ1510A,3215mm贴片晶振,32.768KHZ实时时钟晶振特点:

陶瓷接缝包装

卓越的可靠性性能

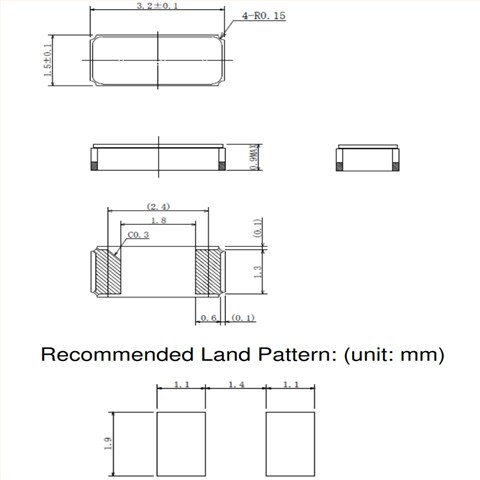

超小型包装32.768K晶振

可用于表面安装技术和红外回流工艺

湿度灵敏度水平（MSL）：1级

TST无源晶振,TZ1510A,3215mm贴片晶振,32.768KHZ实时时钟晶振 参数表

TZ1510A	Specification
NominalFrequency	32.768000KHz
Storage TemperatureRange	-55°Cto+125°C
Operating TemperatureRange	-40°Cto+85°C
Turnover Temperature	25+/-5°C
Parabolic CurvatureConstant	-0.034 ppm+/-0.006ppm/°C
FrequencyMakeTolerance(FL)	+/-20 ppm@25°C+/-3°C
FrequencyMakeTolerance(FL)	+/-20 ppm@25°C+/-3°C
EquivalentSeriesResistor(ESR)	70KΩmax.
ShuntCapacitance(Co)	1.0 pF Max.
LoadCapacitance(CL)	9pF
Aging	+/-3.0ppm/year@25°C
InsulationResistance	500MΩmin atDC100V +/-15V
Marking	Lasermarking
