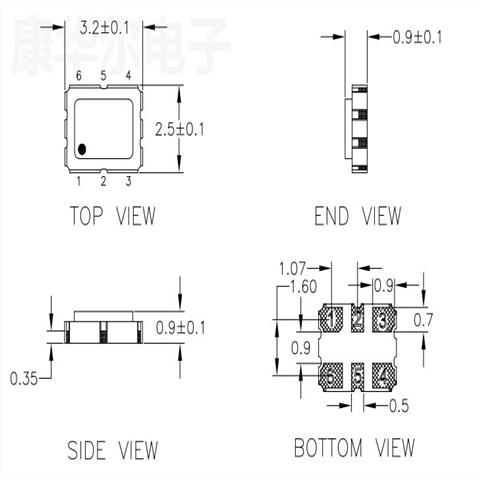

物料编码为XLH335004.000000I的瑞萨3225晶体，型号是XPRESSO FXO-HC33，该晶振的频率是4MHz，输出方式为HCMOS输出，电压是3.3V，电流为32mA，该晶振的工作温度是-40°C~85°C，频率公差为±50ppm，尺寸是3225mm，该瑞萨3225晶体也叫瑞萨3225振荡器，3225 SMD晶振，瑞萨六脚SMD晶振，HCMOS输出差分晶振。差分晶振是有源晶振中的一种，用于 产生高稳定性的频率信号。它主要由两个互补的晶体振荡器(XO和X1)和一个固定的电容构成，差分晶振中，两个晶体振荡器相互引入的频率差被称为差分输出。
XPRESSO FXO-HC33,瑞萨3225晶体,XLH335004.000000I
|
原产编码 |
XLH335004.000000I |
|
品牌 |
Renesas |
|
型号 |
XPRESSO FXO-HC33 |
|
频率 |
4MHz |
|
输出方式 |
HCMOS |
|
电压 |
3.3V |
|
精度 |
±50ppm |
|
工作温度 |
-40°C~85°C |
|
电流 |
32mA |
|
尺寸 |
3225mm |
XPRESSO FXO-HC33,瑞萨3225晶体,XLH335004.000000I
更多相关晶振参考
|
编码 |
品牌 |
型号 |
频率 |
输出方式 |
|
XUP536212.500JS6I |
XUP |
212.5MHz |
LVPECL |
|
|
XLP726300.000000I |
Renesas |
XPRESSO FXO-PC72 |
300MHz |
LVPECL |
|
XLL536125.000000I |
Renesas |
XPRESSO FXO-LC53 |
125MHz |
LVDS |
|
XLH526025.000000I |
Renesas |
XPRESSO FXO-HC52 |
25MHz |
HCMOS |
|
XLH735024.576000X |
Renesas |
XPRESSO FXO-HC73 |
24.576MHz |
HCMOS |
|
XLH535100.000000I |
Renesas |
XPRESSO FXO-HC53 |
100MHz |
HCMOS |
|
XLH335024.000000I |
Renesas |
XPRESSO FXO-HC33 |
24MHz |
HCMOS |
|
XLH730040.000000I |
Renesas |
XPRESSO FXO-HC73 |
40MHz |
HCMOS |
|
XLH536050.000JS4I8 |
Renesas |
XLH |
50MHz |
HCMOS |
|
XLH536125.000JS4I8 |
Renesas |
XLH |
125MHz |
HCMOS |
|
XUP536156.250JS6I |
Renesas |
XUP |
156.25MHz |
LVPECL |
|
XUL536212.500JS6I |
Renesas |
XUL |
212.5MHz |
LVDS |
|
XPP736625.000000I |
Renesas |
XPP |
625MHz |
LVPECL |
|
XLH335027.000000I |
Renesas |
XPRESSO FXO-HC33 |
27MHz |
HCMOS |
|
XLH335016.625000I |
Renesas |
XL |
16.625MHz |
HCMOS |
|
XLH736059.941610I |
Renesas |
XPRESSO FXO-HC73 |
59.94161MHz |
HCMOS |
|
XLH735027.648000X |
Renesas |
XPRESSO FXO-HC73 |
27.648MHz |
HCMOS |
|
XLH535025.040000X |
Renesas |
XPRESSO FXO-HC53 |
25.04MHz |
HCMOS |
|
XLH530019.660800X |
Renesas |
XPRESSO FXO-HC53 |
19.6608MHz |
HCMOS |
|
XLH335004.000000I |
Renesas |
XPRESSO FXO-HC33 |
4MHz |
HCMOS |
|
XLH335066.000000I |
Renesas |
XPRESSO FXO-HC33 |
66MHz |
HCMOS |
|
XLH735019.200000I |
Renesas |
XPRESSO FXO-HC73 |
19.2MHz |
HCMOS |
|
XLH735025.830000I |
Renesas |
XPRESSO FXO-HC73 |
25.83MHz |
HCMOS |
|
XLH735003.932160I |
Renesas |
XPRESSO FXO-HC73 |
3.93216MHz |
HCMOS |
|
XLH735059.941610I |
Renesas |
XPRESSO FXO-HC73 |
59.94161MHz |
HCMOS |
|
XLH535077.760000I |
Renesas |
XPRESSO FXO-HC53 |
77.76MHz |
HCMOS |
|
XLH536014.318180I |
Renesas |
XPRESSO FXO-HC53 |
14.31818MHz |
HCMOS |
|
XLH738066.660000X |
Renesas |
XPRESSO FXO-HC73 |
66.66MHz |
HCMOS |
|
XLH738010.000000X |
Renesas |
XPRESSO FXO-HC73 |
10MHz |
HCMOS |
|
XLH736035.328000I |
Renesas |
XPRESSO FXO-HC73 |
35.328MHz |
HCMOS |
|
XLH526075.000000I |
Renesas |
XPRESSO FXO-HC52 |
75MHz |
HCMOS |
|
XLH736049.090800I |
Renesas |
XPRESSO FXO-HC73 |
49.0908MHz |
HCMOS |
|
XLH738077.760000X |
Renesas |
XPRESSO FXO-HC73 |
77.76MHz |
HCMOS |
|
XLH536080.000000I |
Renesas |
XPRESSO FXO-HC53 |
80MHz |
HCMOS |
