物料编码为12.90324的KXO-V94振荡器，其标准频率是27MHz，该有源晶振的频率公差是±50ppm，输出方式为HCMOS输出，电压是3.3V，其工作温度在-40°C~85°C，电流是7mA，其 尺寸为2.0*1.6*0.9mm，为四脚SMD晶振，所以该晶振也叫作2016石英贴片晶振，GEYER差分晶振，差分晶体振荡器。康华尔电子企业,作为一家专业生产石英晶振的企业,对于所有生产的每一粒晶振都会经过每道工序严格的赛选,检测,跌落,老化,在最后出厂全部检测等多道工序,确保出厂产品达到%100合格。康华尔公司拥有全无尘车间,引进国外多款全自动功能生产检测,高端仪器设备,选择康华尔电子晶振产品是你的放心首选。
GEYER差分晶振,27MHz,KXO-V94振荡器,12.90324,2016石英贴片晶振
| 编码 | 12.90324 |
| 品牌 | GEYER晶振 |
| 型号 | KXO-V94 |
| 频率 | 27MHz |
| 输出方式 | HCMOS |
| 电压 | 3.3V |
| 精度 | ±50ppm |
| 工作温度 | -40°C~85°C |
| 电流 | 7mA |

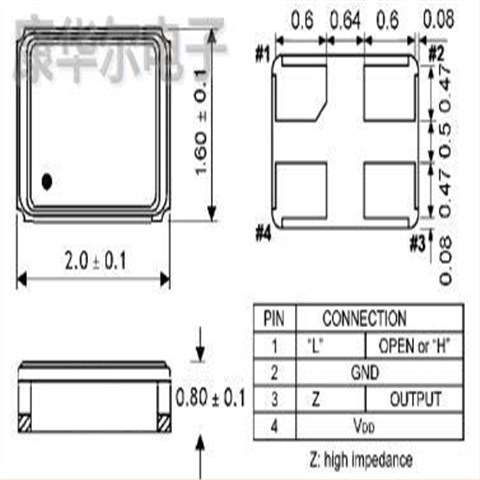

| 尺寸 | 2016mm |
GEYER差分晶振,27MHz,KXO-V94振荡器,12.90324,2016石英贴片晶振
更多相关晶振参考
| 编码 | 品牌 | 型号 | 频率 | 输出方式 | 电压 | 精度 | 工作温度 |
| 12.95582 | GEYER晶振 | KXO-V95 | 14.7456MHz | - | - | ±50ppm | -40°C~85°C |
| 12.95549 | GEYER晶振 | KXO-V95T | 32MHz | - | - | ±50ppm | -40°C~85°C |
| 12.95531 | GEYER晶振 | KXO-V95T | 3.6864MHz | - | - | ±50ppm | -40°C~85°C |
| 12.90328 | GEYER晶振 | KXO-V94T | 16MHz | CMOS | 3.3V | ±50ppm | -40°C~85°C |
| 12.90321 | GEYER晶振 | KXO-V94 | 14.7456MHz | HCMOS | 3.3V | ±50ppm | -40°C~85°C |
| 12.95545 | GEYER晶振 | KXO-V95T | 20MHz | - | - | ±50ppm | -40°C~85°C |
| 12.95103 | GEYER晶振 | KXO-V96T | 32MHz | - | - | ±50ppm | -40°C~85°C |
| 12.9558 | GEYER晶振 | KXO-V95 | 3.579545MHz | - | - | ±50ppm | -20°C~70°C |
| 12.95094 | GEYER晶振 | KXO-V96T | 14.31818MHz | - | - | ±50ppm | -40°C~85°C |
| 12.95034 | GEYER晶振 | KXO-V96T | 20MHz | - | - | ±50ppm | -40°C~85°C |
| 12.95542 | GEYER晶振 | KXO-V95T | 12MHz | - | - | ±50ppm | -40°C~85°C |
| 12.94474 | GEYER晶振 | KXO-V97T | 27MHz | - | - | ±100ppm | -40°C~85°C |
| 12.90343 | GEYER晶振 | KXO-V94T | 12MHz | - | - | ±50ppm | -40°C~85°C |
| 12.90325 | GEYER晶振 | KXO-V94 | 3.6864MHz | HCMOS | 3.3V | ±50ppm | -40°C~85°C |
| 12.90311 | GEYER晶振 | KXO-V94 | 14.7456MHz | HCMOS | 3.3V | ±100ppm | -40°C~85°C |
| 12.95128 | GEYER晶振 | KXO-V96E | 27MHz | - | - | ±50ppm | -40°C~85°C |
| 12.95102 | GEYER晶振 | KXO-V96T | 80MHz | - | - | ±50ppm | -40°C~85°C |
| 12.90333 | GEYER晶振 | KXO-V94T | 40MHz | - | - | ±50ppm | -40°C~85°C |
| 12.90337 | GEYER晶振 | KXO-V94T | 26MHz | - | - | ±50ppm | -40°C~85°C |
| 12.94273 | GEYER晶振 | KXO-V97T | 32MHz | - | - | ±100ppm | -40°C~85°C |
| 12.94365 | GEYER晶振 | KXO-V97T | 14.31818MHz | - | - | ±100ppm | -40°C~85°C |
| 12.95546 | GEYER晶振 | KXO-V95T | 26MHz | - | - | ±50ppm | -40°C~85°C |
| 12.92106 | GEYER晶振 | KXO-V97T | 65MHz | - | - | ±100ppm | -40°C~85°C |
| 12.95571 | GEYER晶振 | KXO-V95T | 32.768kHz | - | - | ±30ppm | -40°C~85°C |
| 12.90344 | GEYER晶振 | KXO-V94T | 4MHz | - | - | ±50ppm | -40°C~85°C |
| 12.95538 | GEYER晶振 | KXO-V95 | 27.12MHz | - | - | ±50ppm | -20°C~70°C |
| 12.94364 | GEYER晶振 | KXO-V97T | 48MHz | - | - | ±100ppm | -40°C~85°C |
| 12.95568 | GEYER晶振 | KXO-V95F | 48MHz | - | - | ±50ppm | -40°C~85°C |
| 12.90324 | GEYER晶振 | KXO-V94 | 27MHz | HCMOS | 3.3V | ±50ppm | -40°C~85°C |
| 12.94609 | GEYER晶振 | KXO-V99 | 1MHz | - | - | ±50ppm | -40°C~85°C |
