RENESAS压控晶振中物料编码为XLH73V074.250000I的晶振的频率为74.25MHz，其输出方式为HCMOS输出，是瑞萨HCMOS输出晶振，型号为XPRESSO FVXO-HC73，该晶振的电压是3.3V，频率公差为±50ppm，其运行温度是-40°C~85°C，电流为47mA，尺寸7552mm。压控晶体振荡器，六脚SMD差分晶振，7552 SMD晶振，瑞萨压控晶振，电压控制石英晶体振荡器。国内的晶体振荡器制造技术尚未成熟,基本上都是依赖日本,美国和台湾等地的进口有源晶振,并且类型有很多种,常用是 TCXO 晶振和压控晶体振荡器,前者具有温度补偿性功能,后者则是可以控制电压的大小,作用虽然不一样,但都拥有高精度,都是利用独特的振荡性工作。
XPRESSO FVXO-HC73,RENESAS压控晶振,XLH73V074.250000I
|
原产编码 |
XLH73V074.250000I |
|
品牌 |
Renesas |
|
型号 |
XPRESSO FVXO-HC73 |
|
频率 |
74.25MHz |
|
输出方式 |
HCMOS |
|
电压 |
3.3V |
|
工作温度 |
-40°C~85°C |
|
精度 |
±50ppm |
|
电流 |
47mA |
|

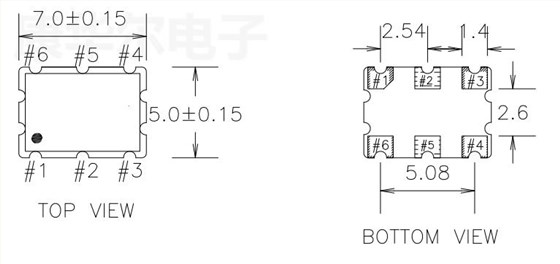

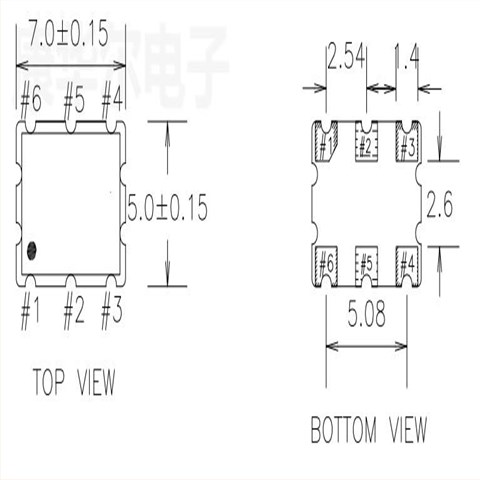

尺寸 |
7552mm |
XPRESSO FVXO-HC73,RENESAS压控晶振,XLH73V074.250000I
