EH1400SJETTS-40.000M,40MHz,EH14,Ecliptek物联网晶振
频率：40.000MHz
尺寸：14x9.8x4.7mm
EH1400SJETTS-40.000M,40MHz,EH14,Ecliptek物联网晶振，美国进口晶振，Ecliptek晶振，日蚀晶振，型号：EH14系列，编码为：EH1400SJETTS-40.000M，频率：40.000MHz，电压：5V，工作温度范围：-40℃至+85℃，频率稳定性：±100ppm，CMOS输出晶振，小体积晶振尺寸：14x9.8x4.7mm表面封装，四脚贴片晶振，石英晶体时钟振荡器，有源晶振，SMD晶体晶体，石英晶振，石英晶体振荡器。具有超小型，轻薄型，高品质，高可靠性，耐热及耐环境等特点。应用于：通讯设备晶振，物联网晶振，导航仪晶振，无线网络晶振，医疗设备晶振，数码电子等应用。
EH1400SJETTS-40.000M,40MHz,EH14,Ecliptek物联网晶振,参数表
Nominal Frequency
40 MHz
Frequency Tolerance/Stability
Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, First Year Aging at 25°C, Shock, and Vibration
±100ppm Maximum
±20ppm Maximum
±25ppm Maximum
±50ppm Maximum
Aging at 25°C
±5ppm/Year Maximum
Operating Temperature Range
0°C to +70°C
-40°C to +85°C
Supply Voltage
5.0Vdc ±10%
Input Current
No Load
50mA Maximum
Output Voltage Logic High (VOh)
2.4Vdc Minimum with TTL Load, Vdd-0.4Vdc Minimum with HCMOS Load, IOH = -16mA
Output Voltage Logic Low (VOl)
0.4Vdc Maximum with TTL Load, 0.5Vdc Maximum with HCMOS Load, IOL = +16mA
Rise/Fall Time
Measured at 0.8Vdc to 2.0Vdc with TTL Load; Measured at 20% to 80% of waveform with HCMOS Load
6nSec Maximum over Nominal Frequency of 1MHz to 70MHz
4nSec Maximum over Nominal Frequency of 70.000001MHz to 155.52MHz
Duty Cycle
50 ±10(%) (Measured at 1.4Vdc with TTL Load or at 50% of waveform with HCMOS Load over Nominal Frequency range
of 1MHz to 70MHz; Measured at 50% of waveform over Nominal Frequency range of 70.000001MHz to 155.52MHz)
50 ±5(%) (Measured at 50% of waveform with TTL Load or with HCMOS Load)
Load Drive Capability
10TTL Load or 50pF HCMOS Load Maximum over Nominal Frequency of 1MHz to 70MHz
5TTL Load or 15pF HCMOS Load Maximum over Nominal Frequency of 70.000001MHz to 155.52MHz
Output Logic Type
CMOS
Pin 1 Connection
Tri-State (Disabled Output: High Impedance)
Tri-State Input Voltage (Vih and Vil)
+2.2Vdc Minimum to enable output, +0.8Vdc Maximum to disable output (High Impedance), No Connect to enable output.
Absolute Clock Jitter
±250pSec Maximum, ±100pSec Typical
One Sigma Clock Period Jitter
±50pSec Maximum, ±30pSec Typical
Start Up Time
10mSec Maximum
Storage Temperature Range
-55°C to +125°C

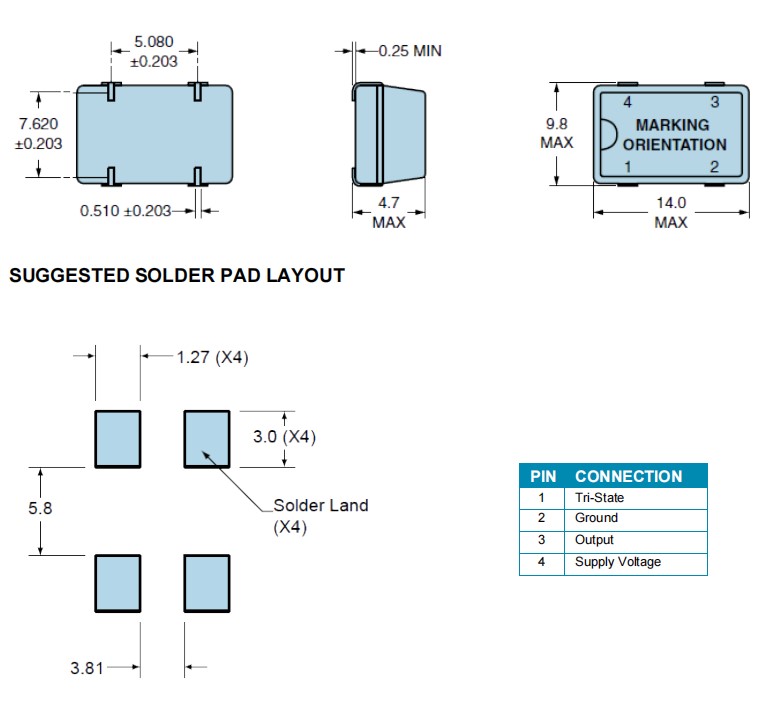

EH1400SJETTS-40.000M,40MHz,EH14,Ecliptek物联网晶振,尺寸图
| 晶振编码 | 品牌 | 型号 | 频率 | 长 | 宽 | 高 |
| EH1400SJETTS-1.000M | Ecliptek晶振 | EH14 | 1 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTS-11.0592M TR | Ecliptek晶振 | EH14 | 11.0592 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTS-25.000M | Ecliptek晶振 | EH14 | 25 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTS-32.000M TR | Ecliptek晶振 | EH14 | 32 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTS-40.000M | Ecliptek晶振 | EH14 | 40 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTS-5.000M | Ecliptek晶振 | EH14 | 5 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTS-5.000M TR | Ecliptek晶振 | EH14 | 5 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTS-64.000M | Ecliptek晶振 | EH14 | 64 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTS-70.656M | Ecliptek晶振 | EH14 | 70.656 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTTS-1.8432M | Ecliptek晶振 | EH14 | 1.8432 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTTS-16.667M | Ecliptek晶振 | EH14 | 16.667 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTTS-16.670M | Ecliptek晶振 | EH14 | 16.67 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTTS-16.670M TR | Ecliptek晶振 | EH14 | 16.67 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTTS-20.000M | Ecliptek晶振 | EH14 | 20 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTTS-32.000M | 贴片晶振 | EH14 | 32 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTTS-36.000M | Ecliptek晶振 | EH14 | 36 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJETTTS-40.000M | Ecliptek晶振 | EH14 | 40 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJTS-16.000M | Ecliptek晶振 | EH14 | 16 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJTTS-39.3216M TR | Ecliptek晶振 | EH14 | 39.3216 MHz | 14mm | 9.8mm | 4.7mm |
| EH1400SJTTS-4.9152M TR | Ecliptek晶振 | EH14 | 4.9152 MHz | 14mm | 9.8mm | 4.7mm |
| EH1420SJETTS-5.000M TR | Ecliptek晶振 | EH14 | 5 MHz | 14mm | 9.8mm | 4.7mm |
| EH1425SJETTS-24.576M | Ecliptek晶振 | EH14 | 24.576 MHz | 14mm | 9.8mm | 4.7mm |
| EH1445SJETTS-64.000M | Ecliptek晶振 | EH14 | 64 MHz | 14mm | 9.8mm | 4.7mm |
| EH1445SJETTTS-64.000M | Ecliptek晶振 | EH14 | 64 MHz | 14mm | 9.8mm | 4.7mm |
| EH1445SJTS-1.000M TR | Ecliptek晶振 | EH14 | 1 MHz | 14mm | 9.8mm | 4.7mm |
