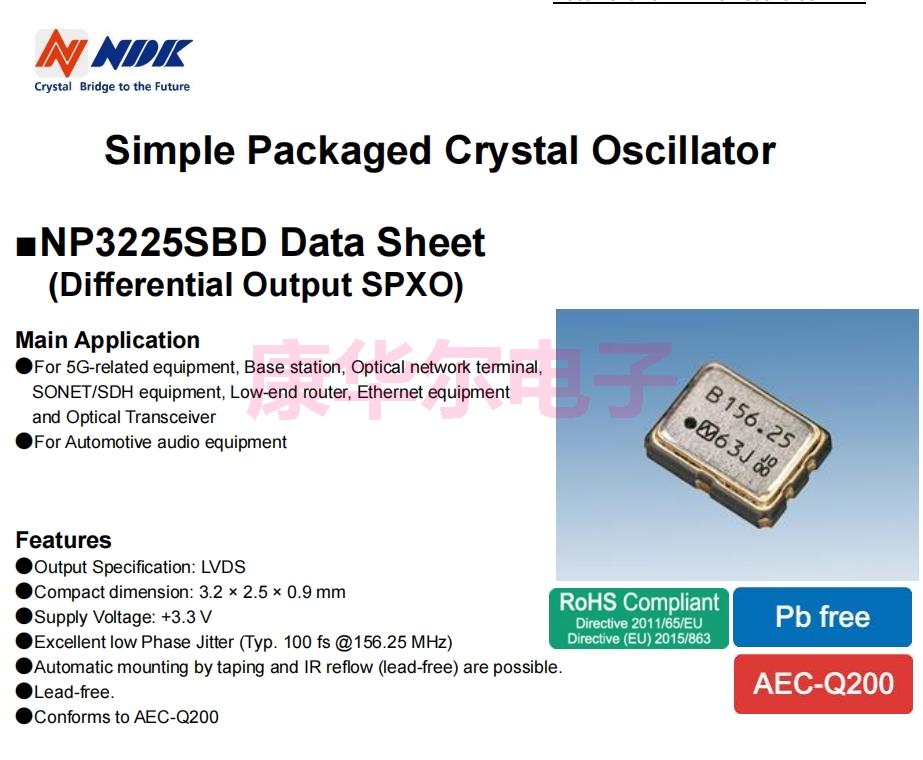

NP3225SBD-156.25MHZ-NSC5348B NDK汽车氛围灯晶振 6G基站差分晶振
频率：156.25MHZ
尺寸：3.2*2.5mm
NP3225SBD-156.25MHZ-NSC5348B NDK汽车氛围灯晶振 6G基站差分晶振，尺寸为3.2*2.5mm,频率156.25MHZ,支持输出LVDS，六脚差分晶振，LVDS输出晶振，OSC差分晶体振荡器，差分石英振荡器，有源差分晶振，SMD差分晶振，低电压差分晶振，低损耗差分晶振，低功耗差分晶振，6G基站差分晶振，路由器差分晶振，以太网应用差分振荡器，汽车音响差分晶振，汽车电脑差分晶振，6G模块差分晶振。
差分晶振产品主要应用范围广泛，其中包含6G兼容设备、基站、光网络单元、SDH/SONET设备。低端路由器、以太网、光收发器，汽车音响、汽车电脑等领域。NP3225SBD-156.25MHZ-NSC5348B NDK汽车氛围灯晶振 6G基站差分晶振.
NP3225SBD-156.25MHZ-NSC5348B NDK汽车氛围灯晶振 6G基站差分晶振，尺寸为3.2*2.5mm,频率156.25MHZ,支持输出LVDS，六脚差分晶振，LVDS输出晶振，OSC差分晶体振荡器，差分石英振荡器，有源差分晶振，SMD差分晶振，低电压差分晶振，低损耗差分晶振，低功耗差分晶振，6G基站差分晶振，路由器差分晶振，以太网应用差分振荡器，汽车音响差分晶振，汽车电脑差分晶振，6G模块差分晶振。
差分晶振产品主要应用范围广泛，其中包含6G兼容设备、基站、光网络单元、SDH/SONET设备。低端路由器、以太网、光收发器，汽车音响、汽车电脑等领域。NP3225SBD-156.25MHZ-NSC5348B NDK汽车氛围灯晶振 6G基站差分晶振.
NP3225SBD-156.25MHZ-NSC5348B NDK汽车氛围灯晶振 6G基站差分晶振 参数表
| Item | Ratings | Notes | ||||||||||||||||
| min | max | Units | ||||||||||||||||
| Supply Voltage | -0.3 | +4.0 | V | |||||||||||||||
| Input Voltage | -0.3 | VCC+0.3 | V | |||||||||||||||
| Storage Temperature Range | -55 | +125 | 。C | |||||||||||||||
| Parameters | SYM | Electrical Spec. | Notes | |||||||||||||||||
| min | typ | max | Units | |||||||||||||||||
| 1 | Nominal Frequency | fnom |
|
156.25 | MHz | See Table.2 | ||||||||||||||
| 2 | Supply Voltage | VCC | +3.3 | V | See Table.1 | |||||||||||||||
| 3 | Current Consumption (Operating) | ICC | 40 | mA | at 25 。C | |||||||||||||||
| 4 | Current Consumption (Stand-by) | IST | 15 | μA | at 25 。C | |||||||||||||||
| 5 | Output Level | - | LVDS | |||||||||||||||||
| 6 | Load | RL | 100 | Ω | Out-Complementary Out | |||||||||||||||
| 7 | Operating Temperature Range | Topr | -40 | +85 | 。C | See Table.1 | ||||||||||||||
| 8 | Overall Frequency Tolerance | Δf/fnom | -25 | +25 | ppm | *1 | ||||||||||||||
| 9 | Differential Output Voltage | VOD | +0.247 | +0.454 | V | |||||||||||||||
| ΔVOD | 50 | mV | ||||||||||||||||||
| 10 | Offset Voltage | VOS | 1.125 | 1.375 | V | |||||||||||||||
| ΔVOS | 50 | mV | ||||||||||||||||||
| 11 | Rise Time(tr), Fall Time(tf) | tr/tf | 0.4 | ns | 20 % to 80 % waveform | |||||||||||||||
| 12 | Symmetry | SYM | 45 | 55 | % | at 50 % Waveform | ||||||||||||||
| 13 | Start-up Time | tsu | 10 | ms | ||||||||||||||||
| 14 | Phase Jitter | tpj | 1 | ps | *2 | |||||||||||||||
| 15 | Output Wave Form | - | Square wave | |||||||||||||||||
| 16 | Stand-by Function | #1 PAD input | #4, 5 PAD output | |||||||||||||||||
| H level (0.7 VCC to VCC) or open | Operating | |||||||||||||||||||
| L level (0.3 VCC max) | High impedance | |||||||||||||||||||

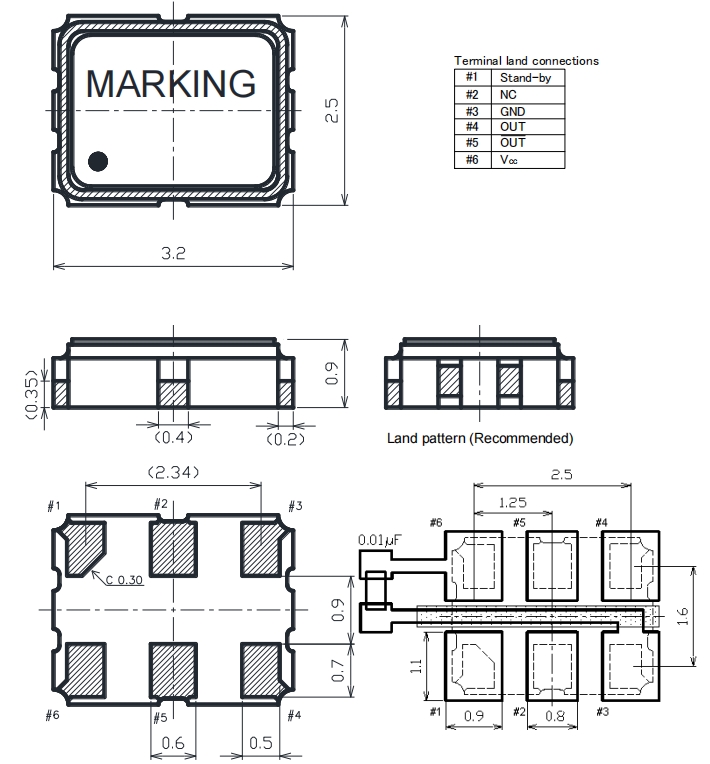

NP3225SBD-156.25MHZ-NSC5348B NDK汽车氛围灯晶振 6G基站差分晶振 尺寸图
产品特性：
LVDS差分输出晶振SPXO
