AA系列,7050mm,AAS27M000000FLE16H,Standard石英晶振特点:
7.0×5.0mm微型石英晶振
超级低的耗能
优异的老化性能
符合无铅标准

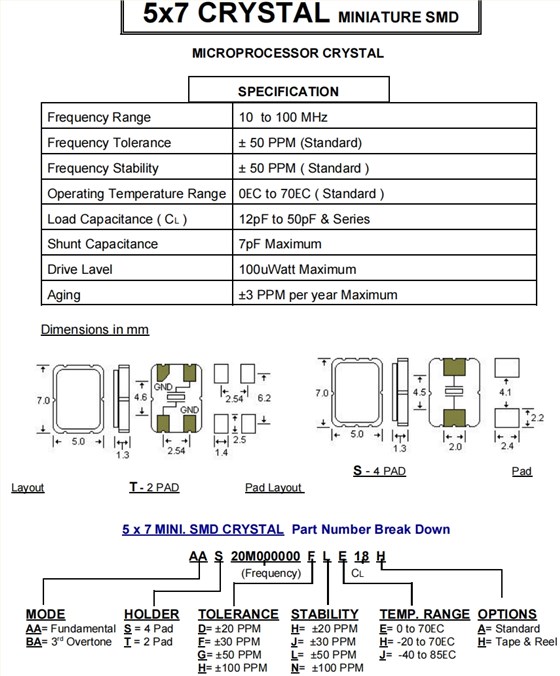

AA系列,7050mm,AAS27M000000FLE16H,Standard石英晶振 参数表
| Frequency Range | 27 MHz | |||||||||
| Frequency Tolerance | ± 50 PPM (Standard) | |||||||||
| Frequency Stability | ± 50 PPM ( Standard ) | |||||||||
| Operating Temperature Range | 0EC to 70EC ( Standard ) | |||||||||
| Load Capacitance ( CL) | 12pF to 50pF & Series | |||||||||
| Shunt Capacitance | 7pF Maximum | |||||||||
| Drive Lavel | 100uWatt Maximum | |||||||||
| Aging | ±3 PPM per year Maximum | |||||||||

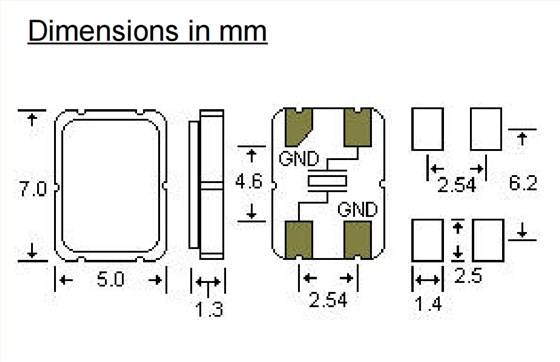

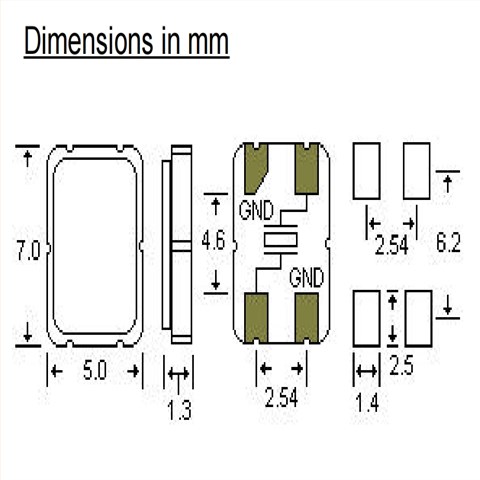

AA系列,7050mm,AAS27M000000FLE16H,Standard石英晶振 尺寸图
