爱普生HCSL振荡器,6G光通信晶振,SG2520HGN 100.000000MHz-CCGPZA

爱普生HCSL振荡器,6G光通信晶振,SG2520HGN 100.000000MHz-CCGPZA，尺寸为2.5*2.0mm，频率为100MHZ，输出逻辑HCSL，EPSON差分晶振，SPXO差分晶振，小尺寸差分晶振，100MHZ差分振荡器，差分输出晶振，进口差分晶振，六脚贴片差分晶振，6G光通信差分晶振，6G蓝牙模块差分振荡器，娱乐设备差分晶振，仪器设备差分晶振，低抖动差分晶振，低电压差分振荡器，低相位差分晶振，产品具备低抖动低电压低功耗的特点，很适合用于使用PCIe Gen5或6的通信设备（固态硬盘、网卡等）.

爱普生的SG2016HGN/SG2520HGN、SG2016HHN/SG25200HHN产品系列支持HCSL（高速当前指导逻辑），并满足PCIe Gen6之前的时序一致性抖动要求。最大90ps相位抖动，支持频率从25MHz到500MHz，差分晶振产品组涵盖整个系统大多数网络、数据中心和通信应用程序的要求。爱普生HCSL振荡器,6G光通信晶振,SG2520HGN 100.000000MHz-CCGPZA.

爱普生HCSL振荡器,6G光通信晶振,SG2520HGN 100.000000MHz-CCGPZA 参数表

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

100

MHz

Frequency tolerance *2

f_tol

-20

+20

×10-6

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 % VCC
Current consumption	ICC	-	-	35	mA	fo ≤ 212 MHz
		-	-	40	mA	fo > 212 MHz
Disable current	I_dis	-	-	25	mA	OE = GND
Stand-by current	I_std	-	-	30	μA	= GND, T_use Max. = +85 °C
		-	-	60	μA	= GND, T_use Max. = +105 °C
Rise time / Fall time	tr / tf	-	-	0.7	ns	20 % - 80 % (VOH- VOL)
Differential output rise slew rate / fall slew rate	Rr / Rf	2	-	10	V/ns	Between -0.15 V and 0.15 V of differential output
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOH	0.5	-	0.7	V	Output option: A, fo ≤ 212 MHz
		0.4	-	0.65	V	Output option: A, fo > 212 MHz
		0.6	-	0.8	V	Output option: B, fo ≤ 212 MHz
		0.5	-	0.75	V	Output option: B, fo > 212 MHz
	VOL	-0.15	-	0.15	V
Differential swing	VSW	0.7	-	1.4	V	Output option: A
		0.8	-	1.6	V	Output option: B
Input voltage	VIH	70 % VCC	-	-	V	OE/terminal
	VIL	-	-	30 % VCC	V
Output disable time (OE)	tstp_oe	-	-	100	ns	Measured from the time OE pin crosses 30 % VCC
Output disable time (ST)	tstp_st	-	-	100	ns	Measured from the time pin crosses 30 % VCC
Output enable time (OE)	tsta_oe	-	-	500	ns	Measured from the time OE pin crosses 70 % VCC
Output enable time (ST)	tsta_st	-	-	10	ms	Measured from the time pin crosses 70 % VCC
Phase jitter Offset frequency fo < 50 MHz: 12 kHz to 5 MHz fo ≥ 50 MHz: 12 kHz to 20 MHz	tPJ	-	-	200	fs	fo < 100 MHz
		-	-	90	fs	100 MHz ≤ fo ≤ 156 MHz
		-	-	70	fs	156 MHz < fo ≤ 212 MHz
		-	-	60	fs	212 MHz < fo ≤ 391 MHz
		-	-	50	fs	fo > 391 MHz
Jitter	tp-p	-	-	60	ps	Peak to Peak Jitter
	tc-c	-	-	60	ps	Cycle to cycle jitter (Peak to Peak)
PCIe jitter limits for CC architecture	-	-	-	0.1	ps	For PCIe Gen5
		-	-	0.06	ps	For PCIe Gen6

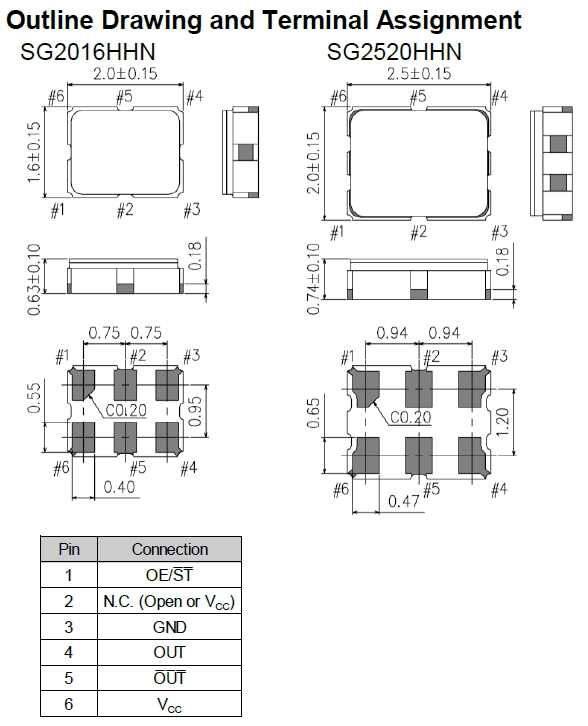

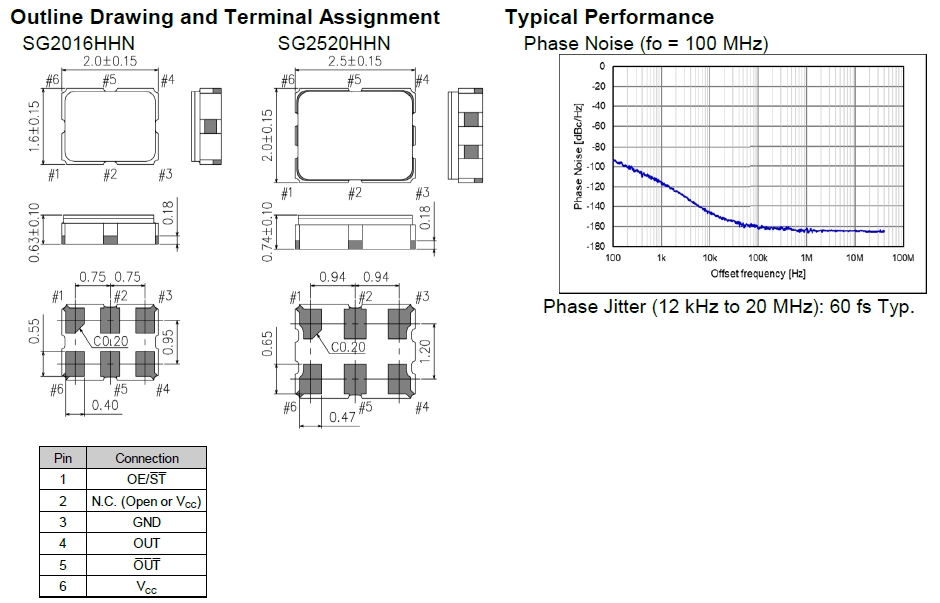

爱普生HCSL振荡器,6G光通信晶振,SG2520HGN 100.000000MHz-CCGPZA 尺寸图

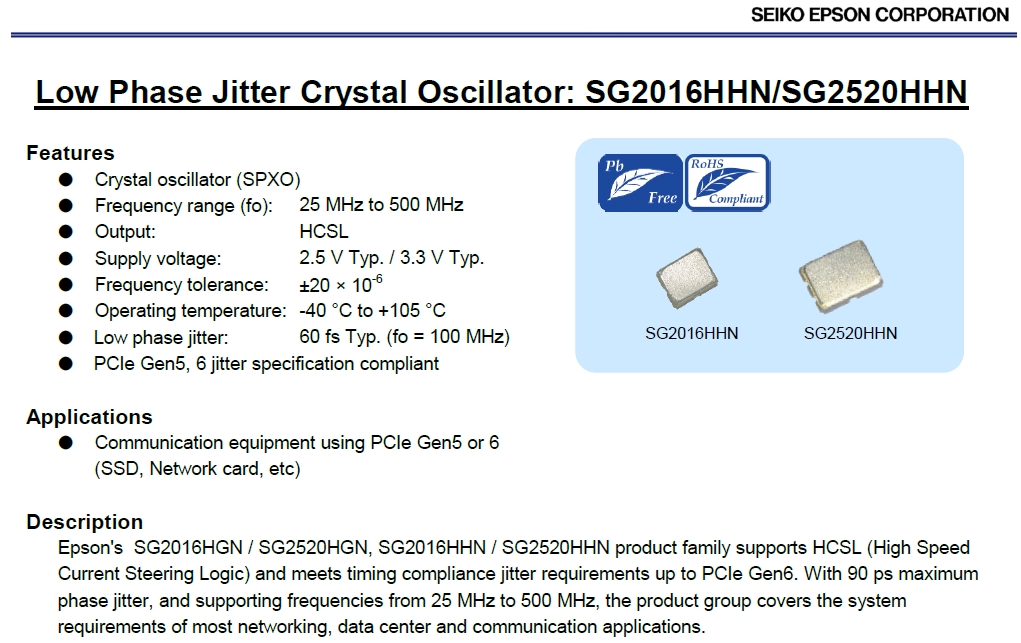

产品特性：

进口晶体振荡器

频率范围（fo）：25MHz至500MHz

输出：HCSL

电源电压：2.5 V典型值/3.3 V类型。

频率公差：±20×10-6

工作温度：-40°C至+105°C

低相位抖动：60 fs典型值。（fo=100兆赫）

符合PCIe Gen5、6抖动规范
