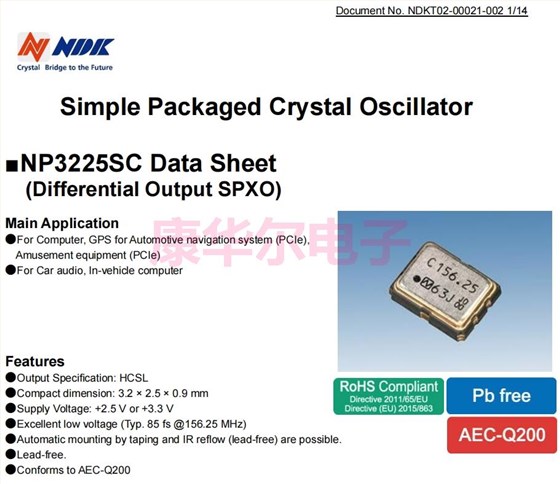

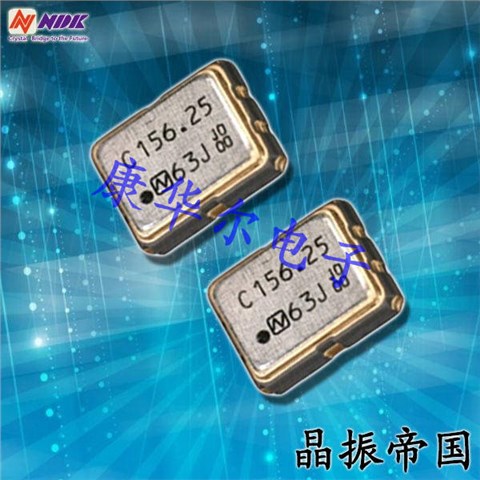

NDK晶振,6G基站晶振,NP3225SC-100MHZ-NSC5343A,汽车专用差分晶振，尺寸3.2*2.5mm，频率100MHZ，支持输出HCSL，HCSL差分晶振，贴片差分振荡器，OSC差分晶振，100MHZ差分晶体振荡器，低抖动差分晶振，低电压差分晶振，低损耗差分晶振，低相位差分晶振，基站应用差分晶振，路由器差分晶振，汽车音响差分晶振，汽车电脑差分晶振，具备高精度低抖动低电压的特点,特别适合用于6G兼容设备、基站、光网络单元SDH/SONET设备，低端路由器、以太网、光收发器，汽车音响、汽车电脑等领域。
差分晶振是目前行业中公认高技术，高要求的一款晶体振荡器，是指输出差分信号使用2种相位彼此完全相反的信号,从而消除了共模噪声,并产生一个更高性能的系统。差分晶振一般为六脚贴片，输出类型分为好几种,LVDS,LV-PECL，HCSL具有低电平,低抖动，低功耗等特性。NDK晶振,6G基站晶振,NP3225SC-100MHZ-NSC5343A,汽车专用差分晶振.
NDK晶振,6G基站晶振,NP3225SC-100MHZ-NSC5343A,汽车专用差分晶振 参数表
| Item | Ratings | Notes | ||||||||||||||||||||
| min | max | Units | ||||||||||||||||||||
| 1 | Supply Voltage | -0.3 | +4.0 | V | ||||||||||||||||||
| 2 | Input Voltage | -0.3 | VCC+0.3 | V | ||||||||||||||||||
| 3 | Storage Temperature Range | -55 | +125 | 。C | ||||||||||||||||||
| Parameters | SYM | Electrical Spec. | Notes | |||||||||||||||||||
| min | typ | max | Units | |||||||||||||||||||
| 1 | Nominal Frequency | fnom | 100 |
|
MHz | See Table.2 | ||||||||||||||||
| 2 | Supply Voltage | VCC | +2.5 to +3.3 | V | See Table.1 | |||||||||||||||||
| 3 | Current Consumption (Operating) | ICC | 50 | mA | at 25。C | |||||||||||||||||
| 4 | Current Consumption (Stand-by) | IST | See Table.1 | μA | at 25。C | |||||||||||||||||
| 5 | Output Level | - | HCSL | |||||||||||||||||||
| 6 | Load | RL | 50 | Ω | ||||||||||||||||||
| 7 | Operating Temperature Range | Topr | [-40 to +85] to [-40 to +105] | 。C | See Table.1 | |||||||||||||||||
| 8 | Overall Frequency Tolerance | Δf/fnom | -50 | +50 | ppm | *1 | ||||||||||||||||
| 9 | Output Voltage | VOL | - 150 | +150 | mV | |||||||||||||||||
| VOH | +580 | +850 | mV | |||||||||||||||||||
| 10 | Rise Time(tr), Fall Time(tf) | tr/tf | 0.5 | ns | 0.175 to 0.525 V | |||||||||||||||||
| 11 | Symmetry | SYM | 45 | 55 | % | at 50 % Waveform | ||||||||||||||||
| 12 | Start-up Time | tsu | 10 | ms | ||||||||||||||||||
| 13 | Phase Jitter | tpj | 1 | ps | *2 | |||||||||||||||||
| 14 | Output Wave Form | - | Square wave | |||||||||||||||||||
| 15 | Stand-by Function | #1 PAD input | #4, 5 PAD output | |||||||||||||||||||
| H level (0.7 VCCto VCC) or open | Operating | |||||||||||||||||||||
| L level (0.3 VCCmax) | High impedance | |||||||||||||||||||||

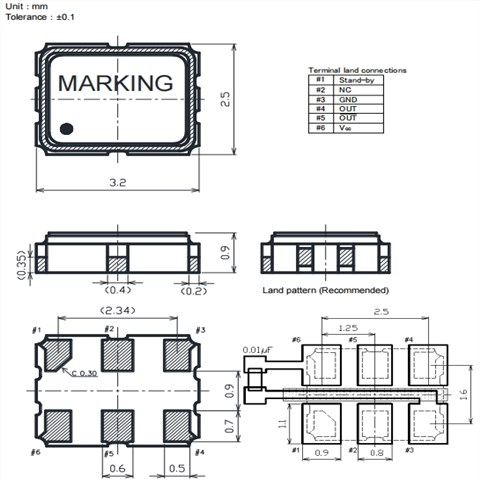

NDK晶振,6G基站晶振,NP3225SC-100MHZ-NSC5343A,汽车专用差分晶振 尺寸图
产品特性：
